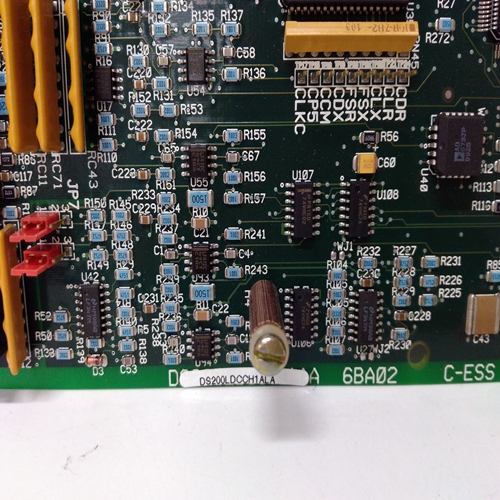

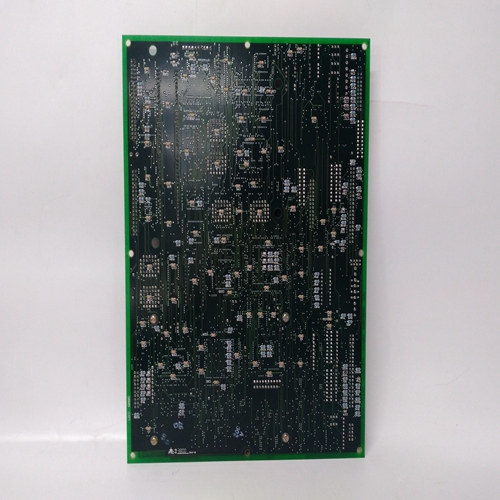

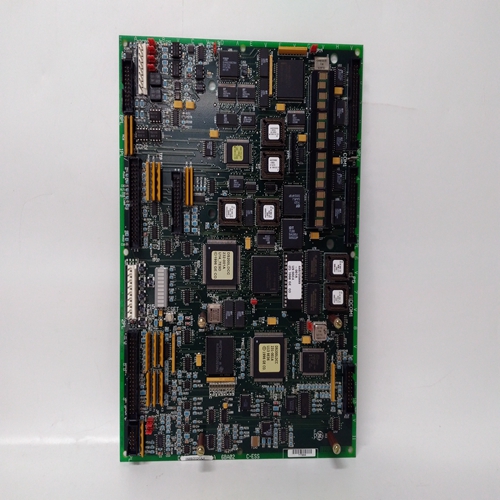

DS200LDCCH1ALA燃機輸入卡件
在冷起動或熱起動期間，a/M開關將在自動位置通電。熱啟動期間，a/M開關將在斷電前的位置上電。
每個組都可以使用D按鈕顯示在本地面板上。當?shù)谝淮问褂醚h(huán)按鈕，將顯示循環標簽（如PBDisp1）。按下D按鈕將滾動瀏覽組以字母數字形式顯示組標簽（例如，MS1036），并在數字顯示器（例如。1). 可以使用在本地面板上查看與此反饋值關聯的反饋消息單位按鈕。A/M按鈕將顯示組選擇器開關的位置，并啟用切換組選擇器在自動和手動之間切換。ODS功能塊是五個操作員顯示器之一在每個循環一次的基礎上提供，以配置本地操作員顯示功能以及網絡命令從與回路相關聯的操作員工作站?？匆娤马摰膇|ware PC面板示例。
固件1.30和較高的。
1.視圖OD參數設置為“是”時，默認為值，允許查看操作員顯示，以及使用循環按鈕在本地訪問。設置參數設置為“否”以查看顯示或操作參數僅適用于網絡工作站，而不適用于允許從本地顯示器進行操作。這可能是需要使用序列/邏輯回路，其中本地操作不需要，但工作站需要訪問強制I/O或用于配方改變的序列參數。2.消息將通過Modbus或LIL提供。參考到網絡通信部分獲取映射數據點。
3.配方消息的#現在可以設置為0，以便配方消息未顯示在消息列表中。
4.消息現在將與本地面板顯示：當本地顯示器首次進入循環時將顯示循環標簽和序列步驟編號。按下D按鈕時，數字顯示將顯示消息，字母數字顯示屏將顯示它到達的第一條消息的順序如下所示。
?條件消息將按順序顯示它們發生在其中。
?最新消息將首先顯示。
?新消息將覆蓋當前消息。
確認按鈕可用于滾動瀏覽活動消息。
它將保留在最后一條消息上，直到新消息覆蓋它或者再次按下確認按鈕。當激活消息時清除時，消息顯示將循環并從頂部開始并顯示它遇到的第一條消息。需要
確認將使顯示器返回正常模式（即。＜循環標簽＞。S） 并將閃爍消息。當事件發生時
已確認，可使用確認按鈕查看。可以使用D鍵將顯示器返回到MSG模式按鈕，然后將顯示隊列中的第一條消息。
During a cold or warm start, the A/M switch will power up in the Auto position. During a hot start, the A/M switch
will power up in the position prior to power down.
Each group can be displayed on the local faceplate using the D button. When first stepping into a loop using the
Loop button, the loop tag will be displayed (e.g. PBDisp1). Pressing the D button will scroll through the groups
displaying the group tag (e.g. MS1036) in the alphanumeric and the value of the feedback in the digital display (e.g.
1). The feedback message associated with this feedback value can be viewed on the local faceplate using the
UNITS button. The A/M button will display the position of the group selector switch and enable switching the
group selector switch between auto and manual. ODS function blocks are one of five operator displays
available on a one per loop basis to configure the local
operator display functions as well as the network commands
from an operator workstation associated with the loop. See
the i|ware PC faceplate example on the following page.
The following six enhancements are in firmware 1.30 and
higher.
1. The VIEW OD parameter, when set to YES, the default
value, enables the operator display to be viewed and
accessed locally using the LOOP button. Set the
parameter to NO to view the display or operation
parameters only with a network workstation and not
allow operation from the local display. This may be
desired with a sequence/logic loop where local operation
is not needed but a workstation needs access to force I/O
or sequence parameters for recipe changes.
2. Messages will be available over Modbus or LIL. Refer
to the Network Communication section for mapped data
points.
3. The # of Recipe messages can now be set to 0 so that a
Recipe Message does not appear in the message list.
4. Messages will now function as follows with the local
faceplate display:
When the local display first enters a loop, the convention
loop tag and sequence step number will be displayed.
When the D button is pressed, the Numeric display will
show MSG and the alphanumeric display will show the
first message it comes to in the order shown below.
? Conditional messages will be displayed in the order
in which they occurred.
? The latest message will be displayed first.
? A new message will override the current message.
The ACK button can be used to scroll through active messages.
It will stay on the last message until a new message overrides it
or the ACK button is again pressed. When an active message
clears, the message display will loop back and start at the top
and display the first message it comes to. Events that require
acknowledgment will return the display to the normal mode (i.e.
<loop tag>.S) and will flash the message. When events have
been acknowledged they can be viewed using the ACK button.
The display can be returned to the MSG mode using the D
button and will then display the first message in the Queue.
