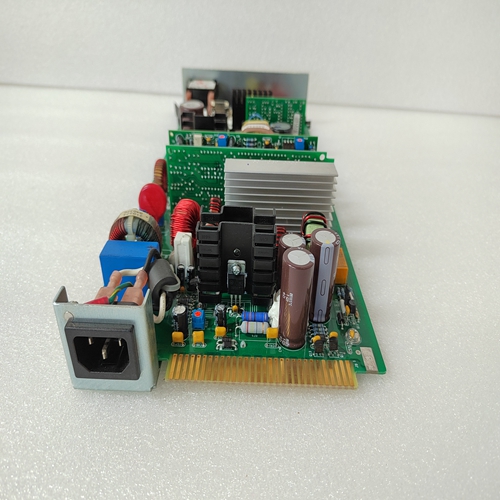

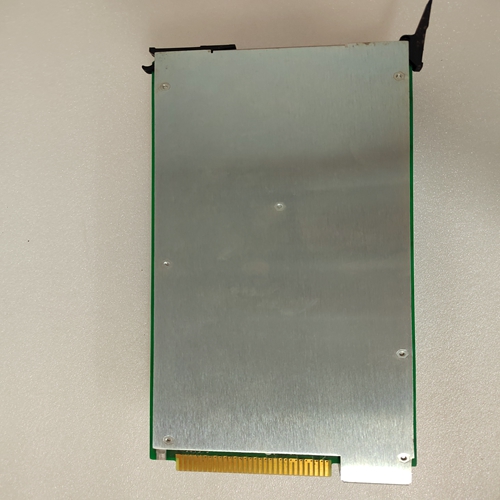

HONEYWELL 51196655-100卡件
?使用合適的運輸設備。
?如果沖擊和振動過大，則使用減震支架這可能發生在運輸過程中。
?靜電危險部件（如插入式模塊）只能在導電包裝中運輸。
?儲存和運輸?shù)脑试S溫度范圍：-30°C至+85°C
?儲存在干燥、無塵和無震動的地方。
?靜電危險部件（如插入式模塊）只能在導電包裝中運輸。送貨單和條形碼貼紙
送貨單按名稱列出了整個送貨的商品訂單名稱。
有條形碼貼紙，用于在控制器的封裝。安裝導軌支撐整個驅動組件。能夠承擔
產生的力，必須至少在第二個槽使用M5螺釘。
由于安裝導軌還進行了驅動器，安裝軌道和安裝之間必須有良好的接觸
面板因此，可能有必要清除安裝區域內的面板使用下邊緣的接地夾建立接地連接控制器的。
?電源連接的直流母線連接必須在裝置的下側以及與相鄰裝置或電源的電源連接必須建立一個單位。
?使用集成扁平帶將母線連接至相鄰裝置
纜繩?將X2或X3扁平帶狀電纜連接至相關控制連接。
?用保護導體和屏蔽連接電機電源電纜。
?連接電機溫度傳感器和保持制動器（可選）。如果控件未提供所需參數：
制造商，則有必要在控制裝置的機器參數塊：指定電流為rms值。
MP 2180：PWM頻率。
功率部分的標準開關頻率等于：4000Hz。
如果某些應用程序需要不同的頻率，則允許的標稱電流必須在上述中線性插值指定范圍。
MP 2190：直流母線電壓。直流母線電壓必須根據所使用的電源單元輸入。
? Use suitable transportation equipment.
? Use shock-absorbent supports if excessive shocks and vibrations
could occur during transport.
? Electrostatically-endangered parts (e.g., plug-in modules) may only be
transported in conductive packaging.
? Permissible temperature range for storage and transport: -30° C to
+85° C
? Store dry, dust and shock free.
? Electrostatically-endangered parts (e.g., plug-in modules) may only be
transported in conductive packaging.Delivery Slip and Barcode Sticker
The delivery slip lists the merchandise of the entire delivery by name and
order designation.
There are barcode stickers which identify the delivery itself on the
packaging of the controller.Mounting rails support the entire drive package. To be able to take up the
generated forces, it is necessary to fasten the rails in at least every
second slot using an M5 screw.
As the mounting rails also conduct the potential compensation of the
drives, there must be good contact of the mounting rails and the mounting
panel. Therefore, it may be necessary to remove any paints or finishes on
the panel within the area of mounting!? Establish a ground connection with a grounding clip on the lower edge
of the controller.
? DC bus connection for the power connections must be released on the
underside of the unit and power connection to adjacent unit or supply
unit must be established.
? Close bus connection to adjacent unit using the integrated flat-ribbon
cable.
? Connect flat-ribbon cables of X2 or X3 to relevant control connection.
? Connect motor power cable with protective conductor and shield.
? Connect motor temperature sensor and holding brake (optional).If the required parameters have not been made available by the control
manufacturer, then it is necessary to make the following entires into the
machine parameter blocks of the controls:The specified currents are rms values.
MP 2180: PWM frequency.
The standard switching frequency of the power section equals
4000Hz.
If some applications need a different frequency, then the values of the
allowed nominal current must be linearly interpolated in the above
specified range.
MP 2190: DC bus voltage.
The DC bus voltage must be entered in terms of the supply unit used.
