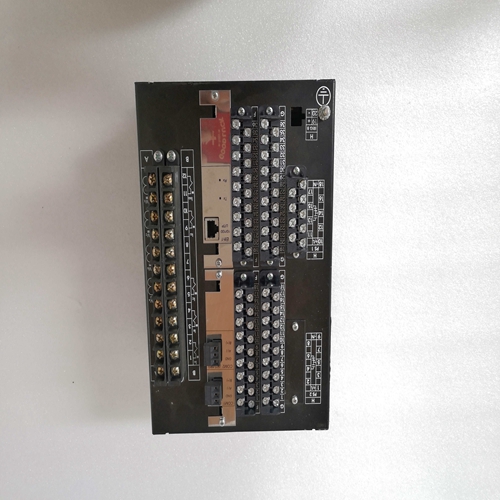

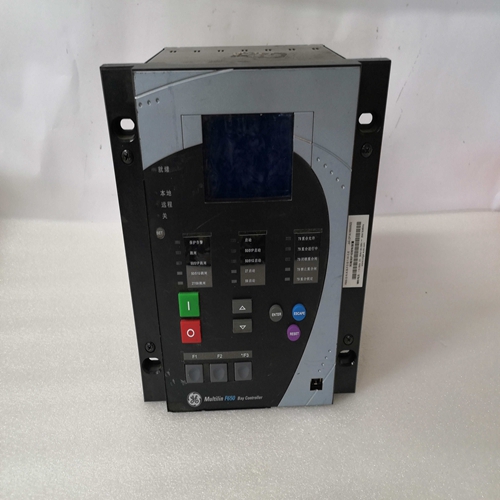

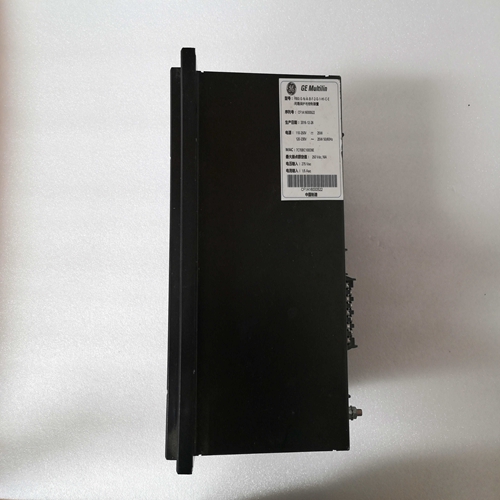

F650-G-N-A-B-F-2-G-1-HI-C-E繼電器保護裝置
設定定義
六個設置組中的每一個都有相應的BESTCOMS屏幕。每個屏幕的設置如下：按一個或多個標簽分類。在以下段落中，安排和定義了設置
根據BESTCOMS屏幕和選項卡的組織。系統配置
系統配置屏幕由一個標簽為“系統設置”的選項卡組成。單擊配置
按鈕訪問系統配置屏幕，或單擊菜單欄上的屏幕，然后單擊系統配置系統設置
系統設置如圖5-6所示，并在以下段落中描述。
感測電壓。此設置用于將DECS-100配置為單相或三相感測電壓。
限制器模式。此設置啟用和禁用勵磁限制器。過勵磁限制（OEL）或欠勵磁限制（UEL）可獨立啟用，兩個都可啟用，或兩個限制器都不啟用。
OEL型。此設置將過勵磁限制器配置為求和點限制器或接管樣式限制器。
發電機頻率。此設置用于選擇50赫茲的標稱系統工作頻率，或60赫茲。
調節器感測電壓（V）。
從發電機感應獲得的標稱交流發電機電壓
在此設置字段中輸入變壓器。在100至140VAC、200至280VAC范圍內的電壓，或者可以以0.1VAC增量輸入400至560VAC。600 Vac的設置也是可能的。
調節器感應電流（A）。該設置字段讀取并顯示電流的標稱輸出
為DECS-100提供B相發電機線路電流的變壓器（CT）。此值（1或5）
對于固件版本低于1.12.01的裝置，必須手動輸入版本號。這兩個只讀版本號表示BESTCOMS軟件版本和DECS-100嵌入式軟件版本。版本號僅在通信時顯示
在DECS-100和BESTCOMS之間建立。
樣式號。三個只讀樣式編號字段表示電氣特性和DECS-100的操作特征。只有在以下情況下通信時，才會顯示樣式號：建立了DECS-100和BESTCOMS。
發電機PT比。發電機感應變壓器的比率輸入該設置字段。這比率允許通過BESTCOMS顯示的電壓與實際發電機輸出電壓相匹配。A.可以以0.01的增量輸入1比150的比率。
發電機CT比率。發電機B相電流互感器的比率輸入該設置字段。
該比率允許DECS-100顯示的電流與實際B相發電機輸出相匹配現在的可以以0.1的增量輸入1到3000的比率。
母線電壓比。該設置字段用于輸入母線電位傳感變壓器比。這個比率允許通過BESTCOMS顯示總線電壓?？梢栽?.01中輸入1比150的比率增量。
SETTING DEFINITIONS
Each of the six setting groups has a corresponding BESTCOMS screen. The settings of each screen are categorized by one or more tabs. In the following paragraphs, settings are arranged and defined
according to the organization of the BESTCOMS screens and tabs.
System Configuration
The System Configuration screen consists of one tab labeled System Settings. Click the Configure
button to access the System Configuration screen or click Screens on the menu bar and click System Configuration.
System Settings
System settings are shown in Figure 5-6 and described in the following paragraphs.
Sensing Voltage. This setting is used to configure the DECS-100 for either single-phase or three-phase sensing voltage.
Limiter Mode. This setting enables and disables the excitation limiters. Overexcitation limiting (OEL) or underexcitation limiting (UEL) can be enabled independently, both can be enabled, or neither limiter enabled. OEL Type. This setting configures the overexcitation limiter as a summing point limiter or takeover-style limiter.
Generator Frequency. This setting is used to select a nominal system operating frequency of 50 hertz or 60 hertz.
Regulator Sensing Voltage (V). The nominal, ac generator voltage obtained from the generator sensing
transformer is entered in this setting field. Voltages within the ranges of 100 to 140 Vac, 200 to 280 Vac,
or 400 to 560 Vac may be entered in 0.1 Vac increments. A setting of 600 Vac is also possible.
Regulator Sensing Current (A). This setting field reads and displays the nominal output of the current
transformer (CT) that supplies the DECS-100 with B-phase generator line current. This value (1 or 5)
must be manually entered for units with a firmware version lower than 1.12.01. Version Numbers. These two read-only version numbers indicate the BESTCOMS software version and
the DECS-100 embedded software version. Version numbers are displayed only when communication
between the DECS-100 and BESTCOMS is established.
Style Number. The three, read-only style number fields indicate the electrical characteristics and
operational features of the DECS-100. the style number is displayed only when communication between
the DECS-100 and BESTCOMS is established.
Generator PT Ratio. The ratio of the generator sensing transformer is entered in this setting field. This
ratio allows the voltage displayed through BESTCOMS to match the actual generator output voltage. A
ratio of 1 to 150 may be entered in increments of 0.01.
Generator CT Ratio. The ratio of the generator B-phase current transformer is entered in this setting field.
This ratio allows the current displayed by the DECS-100 to match the actual B-phase generator output current. A ratio of 1 to 3,000 may be entered in increments of 0.1.
Bus PT Ratio. This setting field is used to enter the bus potential sensing transformer ratio. This ratio allows the bus voltage to be displayed through BESTCOMS. A ratio of 1 to 150 may be entered in 0.01 increments.
