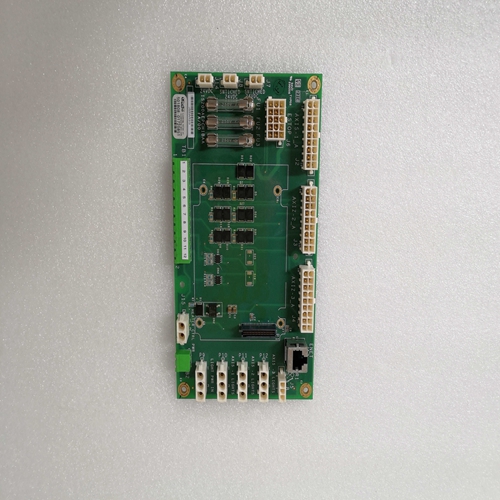

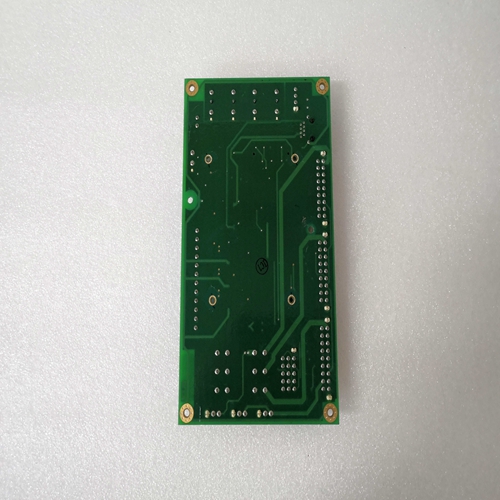

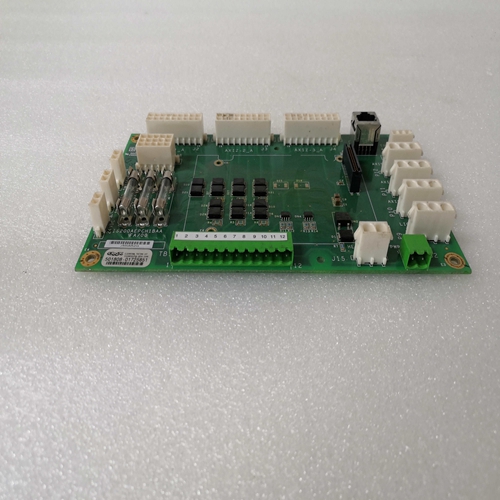

IS200AEPCH1BAA燃機電氣卡件
設置調整屏幕由兩個選項卡組成：設置點和啟動。
設定點選項卡
設置調整屏幕的設置點選項卡設置如圖5-7所示
設定點選項卡在以下段落中描述。
自動電壓調節器（AVR）-AVR設定點（V）。此設置字段用于輸入所需的發電機輸出端電壓。AVR設定值范圍取決于調節器感應電壓和頻帶設置。
精細電壓調整-頻帶設置（%）。波段設置確定最小值和最大值允許對AVR設定點進行調整（以調節器感應電壓設置的百分比表示）（參見圖5-8））。頻帶設置值輸入為調節器感應電壓設置的百分比以0.1%的增量在0至15%的范圍內。
下降-設定點（%）。此設置控制DECS-100的無功下垂補償功能。
設定點值確定發電機電壓設定點中允許的變化量
DECS-100響應無功負載。設定點值可從0%調整到10%，增量為0.01%. 設定點基于0.8功率因數負載。無功功率控制（VAR）-VAR設定點（額定值的%）。VAR設定值決定了在Var控制模式下運行時，DECS-100維持發電機Var。值從-100到+可以在VAR設定點字段中輸入100%，增量為1.0%。
功率因數控制（PF）-PF設定點。
PF設定點決定發電機功率因數的水平
在功率因數控制模式下運行時由DECS-100維護。PF設定值為：可從-0.6調整至-1（1）或0.6至+1，增量為0.001。啟動選項卡
設置調整屏幕的啟動選項卡設置如圖5-8所示“啟動”選項卡在以下段落中描述。
啟動控制-發電機軟啟動時間（秒）。該設置定義發電機軟啟動的時間限制
電壓斜坡時間。軟啟動時間將發電機電壓過沖降至最低，可設置為1至7200秒，以1秒為增量。
欠頻設置-轉角頻率（Hz）。轉角頻率設置定義了使DECS-100調整電壓設定點的頻率，以使發電機電壓如下：選定的伏特/赫茲斜率。在0.01中，可在此設置字段中輸入40至65赫茲的值增量。
欠頻設置-斜率（伏特/赫茲）。選擇發電機低頻保護的斜率
具有該每單位設置。可以以0.01的增量輸入0到3.00的坡度設置。
電壓匹配-速度（秒）。此設置決定發電機電壓的調整速度
DECS-100與總線電壓匹配。速度設置可在0.01內從1秒調整到300秒增量。
電壓匹配-通過觸點禁用
此設置選擇用于禁用的DECS-100觸點輸入電壓匹配。選擇“52JK或52LM”允許52JK和52LM觸點輸入禁用電壓匹配。選擇“52JK”僅允許52JK觸點輸入禁用電壓匹配。
電壓匹配–模式。電壓匹配模式可以保持或恢復。何時維護選擇后，DECS-100設定點即使在發電機或公用事業之后仍保持在總線電壓水平斷路器打開。當選擇Revert（恢復）時，DECS-100設定點將恢復到其原始水平
發電機或公用設施斷路器斷開。
Reactive Power Control (VAR) - VAR Setpoint (% of rated). The VAR Setpoint determines the level of generator vars maintained by the DECS-100 when operating in Var Control mode. Values from -100 to +100 percent in 1.0 percent increments may be entered in the VAR Setpoint field. Power Factor Control (PF) - PF Setpoint. The PF Setpoint determines the level of generator power factor maintained by the DECS-100 when operating in Power Factor Control mode. PF Setpoint values are adjustable from -0.6 to -1 (1) or 0.6 to +1 in 0.001 increments. Startup Tab The Startup-tab settings of the Setting Adjustment screen are shown in Figure 5-8. Each setting of the Startup tab is described in the following paragraphs. Startup Control - Gen Soft Start Time (sec). This setting defines the time limit for the generator soft-start voltage ramp time. The soft-start time minimizes generator voltage overshoot and can be set from 1 to 7,200 seconds in 1 second increments. Underfrequency Setting - Corner Frequency (Hz). The Corner Frequency setting defines the value of frequency that causes the DECS-100 to adjust the voltage setpoint so that the generator voltage follows the selected volts per hertz slope. A value of 40 to 65 hertz can be entered in this setting field in 0.01 increments. Underfrequency Setting - Slope (Volts/Hz). The slope for generator underfrequency protection is selected with this per-unit setting. A slope setting of 0 to 3.00 can be entered in increments of 0.01. Voltage Matching - Speed (sec). This setting determines how quickly the generator voltage is adjusted by the DECS-100 to match the bus voltage. The Speed setting is adjustable from 1 to 300 seconds in 0.01 increments. Voltage Matching – Disable by Contact. This setting selects the DECS-100 contact input used to disable voltage matching. Selecting “52JK or 52LM” allows either the 52JK or 52LM contact input to disable voltage matching. Selecting “52JK” allows only the 52JK contact input to disable voltage matching. Voltage Matching – Mode. The voltage matching mode can be Maintain or Revert. When Maintain is selected, the DECS-100 setpoint is maintained at the bus voltage level even after the generator or utility breaker opens. When Revert is selected, the DECS-100 setpoint reverts to its original level when the generator or utility breaker opens.
