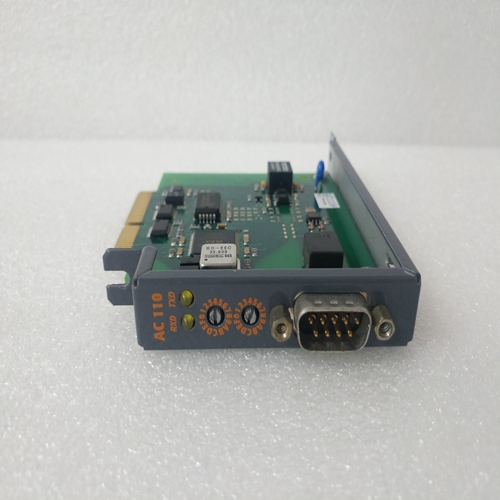

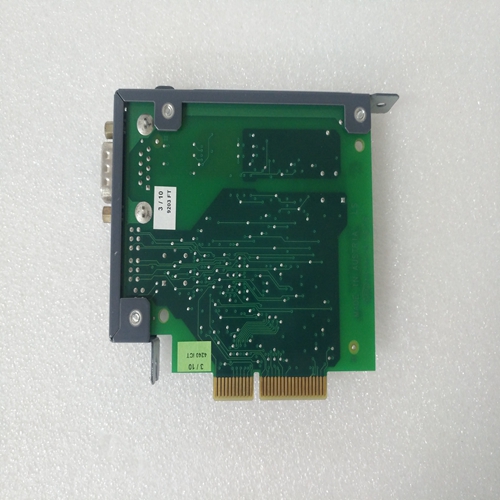

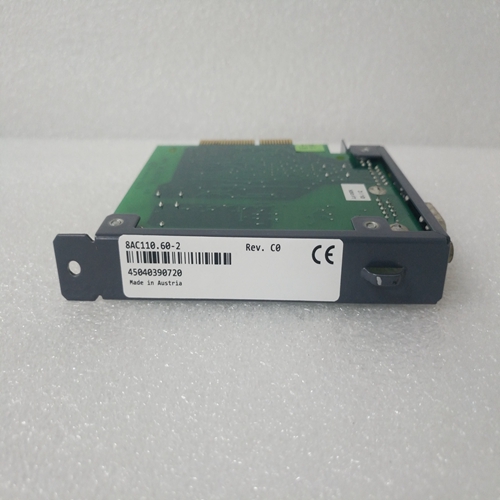

B&R 8AC110伺服驅動
使用ProSoft配置生成器
ProSoft Configuration Builder（PCB）提供了一種快速簡便的管理方法定制模塊配置文件以滿足您的應用程序需求。PCB不是不僅是新配置文件的強大解決方案，還允許您導入從以前安裝（已知工作）配置到新配置的信息項目。如果您以前使用過其他Windows配置工具，您將發現屏幕布局熟悉。PCB的窗口由左側的樹狀視圖和窗口右側的信息窗格和配置窗格。什么時候首先啟動PCB時，樹狀視圖由默認項目和默認位置，默認位置文件夾中有默認模塊。這個下圖顯示了帶有新項目的PCB窗口。將MVI56-101M模塊添加到項目中
1使用鼠標在樹狀視圖中選擇默認模塊，然后單擊用鼠標右鍵打開快捷菜單。
2在快捷菜單上，選擇“選擇模塊類型”。此操作將打開
在對話框中選擇模塊類型。在對話框的產品線過濾器區域中，選擇MVI56模塊類型下拉列表，選擇MVI56-101M，然后單擊確定保存
您的設置并返回到ProSoft Configuration Builder窗口。此時，您可能希望重命名默認項目和默認位置樹視圖中的文件夾。
1選擇對象，然后單擊鼠標右鍵打開快捷方式菜單從快捷菜單中選擇“重命名”。
2鍵入要分配給對象的名稱。
3單擊遠離對象以保存新名稱。配置模塊參數
1單擊模塊圖標旁邊的[+]符號以展開模塊信息。
2.單擊任何圖標旁邊的[+]符號以查看模塊信息，以及配置選項。
3雙擊任何圖標以打開編輯對話框。
4要編輯參數，請選擇左窗格中的參數，并使右窗格中的更改。
5單擊“確定”保存更改。打印配置文件
1選擇模塊圖標，然后單擊鼠標右鍵打開快捷菜單。
2在快捷菜單上，選擇“查看配置”。此操作將打開查看配置窗口。
3在視圖配置窗口中，打開文件菜單，然后選擇打印。此操作將打開“打印”對話框。
4在“打印”對話框中，從下拉列表中選擇要使用的打印機，選擇打印選項，然后單擊確定。
Using ProSoft Configuration Builder
ProSoft Configuration Builder (PCB) provides a quick and easy way to manage
module configuration files customized to meet your application needs. PCB is not
only a powerful solution for new configuration files, but also allows you to import
information from previously installed (known working) configurations to new
projects. If you have used other Windows configuration tools before, you will find the
screen layout familiar. PCB’s window consists of a tree view on the left, and an
information pane and a configuration pane on the right side of the window. When
you first start PCB, the tree view consists of folders for Default Project and
Default Location, with a Default Module in the Default Location folder. The
following illustration shows the PCB window with a new project. Adding the MVI56-101M module to the project
1 Use the mouse to select DEFAULT MODULE in the tree view, and then click the
right mouse button to open a shortcut menu.
2 On the shortcut menu, choose CHOOSE MODULE TYPE. This action opens the
Choose Module Type dialog box. In the Product Line Filter area of the dialog box, select MVI56. In the Select
Module Type dropdown list, select MVI56-101M, and then click OK to save
your settings and return to the ProSoft Configuration Builder window At this time, you may wish to rename the Default Project and Default Location
folders in the tree view.
1 Select the object, and then click the right mouse button to open a shortcut
menu. From the shortcut menu, choose RENAME.
2 Type the name to assign to the object.
3 Click away from the object to save the new name.
Configuring Module Parameters
1 Click on the [+] sign next to the module icon to expand module information.
2 Click on the [+] sign next to any icon to view module information and
configuration options.
3 Double-click any icon to open an Edit dialog box.
4 To edit a parameter, select the parameter in the left pane and make your
changes in the right pane.
5 Click OK to save your changes. Printing a Configuration File
1 Select the module icon, and then click the right mouse button to open a
shortcut menu.
2 On the shortcut menu, choose VIEW CONFIGURATION. This action opens the
View Configuration window.
3 In the View Configuration window, open the FILE menu, and choose PRINT.
This action opens the Print dialog box.
4 In the Print dialog box, choose the printer to use from the drop-down list,
select printing options, and then click OK.
