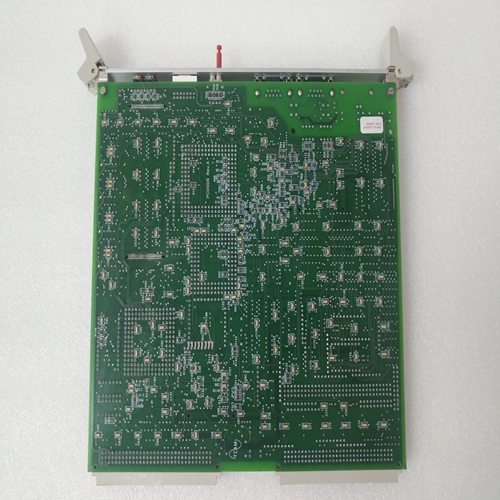

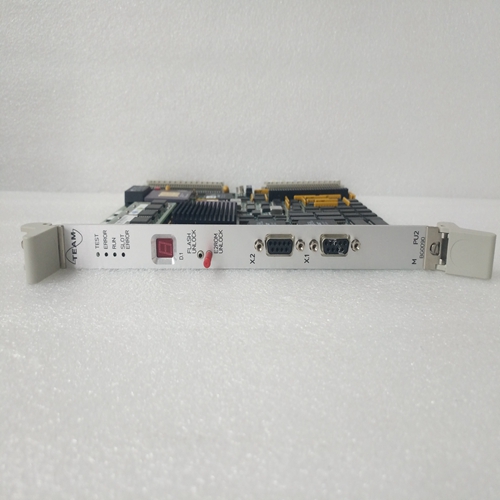

TEAM BG0090系統卡件
電源模塊從產生直流鏈路電路電壓交流輸入電壓。由此，伺服驅動模塊生成三相系統，該三相系統根據振幅、頻率和階段根據電流，這適用于MAC伺服電機轉子位置和所需速度。
受控三相系統與伺服電機的受控運行狀態根據
符合以下標準：扭矩：伺服系統定子中三相系統的電流幅值
電機通過永磁勵磁轉子的磁場確定產生的轉矩。這是由于系統速度偏差造成的控制器。
速度：三相系統的頻率決定了伺服電機。轉子的位置和頻率由轉子位置編碼器的信號（BLC信號），取決于所需的磁場位置與轉子和定子電流的位置。扭矩方向：三相系統和轉子磁場之間的相位關系決定了轉矩的方向
導出根據速度控制器的系統偏差的極性。
控制電路信號調節：速度控制器將速度設定值與實際值進行比較從中生成電流設定點，并將其饋送至方向電流控制器（參見圖5）。
根據轉子位置（通過BLC信號從轉子位置編碼器），三個定子的電流方向?qū)@組進行控制，使定子中產生的電流處于其相對于轉子的磁通量是最有利的。這該關系確保扭矩與電機電流成比例。
電機電流由電流控制器控制。這與方向電流控制器，以控制三個以便獲得具有受控幅度、頻率和相位的三相系統。電流控制器的輸出信號在脈沖寬度內定時并經由無電勢驅動器級放大。這個用于驅動三相電橋的放大信號來自六個功率晶體管。MAC三相伺服電機是永久勵磁同步電機，由以下主要子組件組成：–三相定子–永久勵磁轉子–可選電動釋放制動器–可選單獨軸流風機，用于表面通風
The power supply module generates the DC link circuit voltage from the
AC input voltage. From this the servo drive module generates a threephase system that is controlled according to amplitude, frequency and
phase. This is applied to the MAC servo motor according to the current
rotor position and the desired speed.
The relationship between the controlled three-phase system and the
controlled operating states of the servo motor is established according
to the following criteria:
Torque:
The current amplitude of the three-phase system in the stator of the servo
motor determines the resulting torque via the field of the permanentmagnet-excited rotor. It results from the system deviation of the speed
controller.
Speed:
The frequency of the three-phase system determines the speed of the
servo motor. The rotor’s position and frequency is derived from the
signals of the rotor position encoder (BLC signals), depending on the
required synchronism between the position of the magnetic field of the
rotor and the position of the stator current.Direction of torque:
The phase relationship between the three-phase system and the magnetic field of the rotor determines the direction of the torque and is derived
from the polarity of the system deviation of the speed controller.
Control circuit signal conditioning:
The speed controller compares the speed set-point and actual-value and
from them generates the current set-point that is fed to the directional
current controller via a limiter circuit (see Fig. 5).
Depending on the rotor position (signalled via the BLC signals from the
rotor position encoder), the direction of the current for the three stator
windings is controlled so that the resulting current flow in the stator is at
its most favourable in relation to the magnetic flux of the rotor. This
relationship ensures that the torque is proportional to the motor current.
The motor current is controlled by a current controller. This is linked to the
directional current controller in order to control the current in the three
phases so as to obtain a three-phase system having controlled amplitude, frequency and phase.
The output signals of the current controller are timed in the pulse-width
modulation stage and amplified via potential-free driver stages. The
amplified signals used for driving the three-phase bridge constructed
from six power transistors.The MAC three-phase servo motor is a permanently-excited synchronous motor that is made up of the following main sub-assemblies:
– three-phase stator
– permanently-excited rotor
– optional electrically-released brake
– optional separate axial fan for surface ventilation
