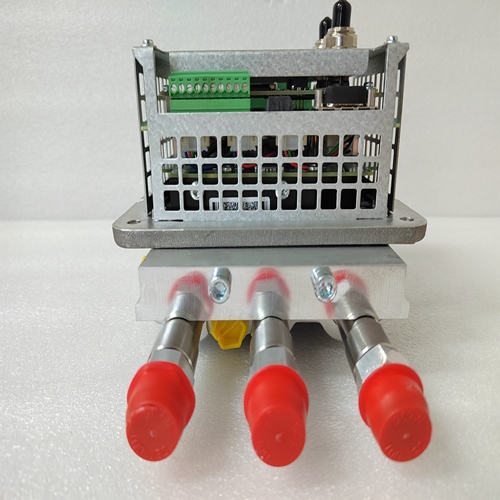

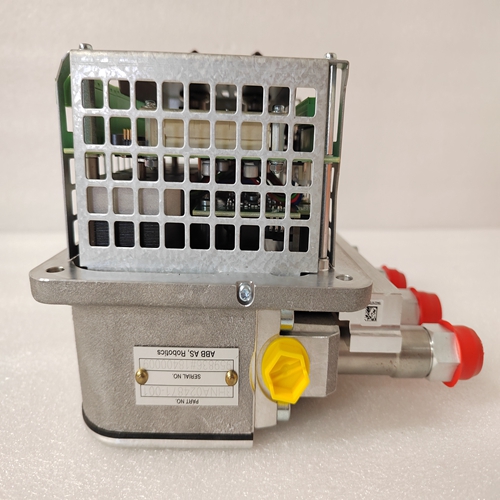

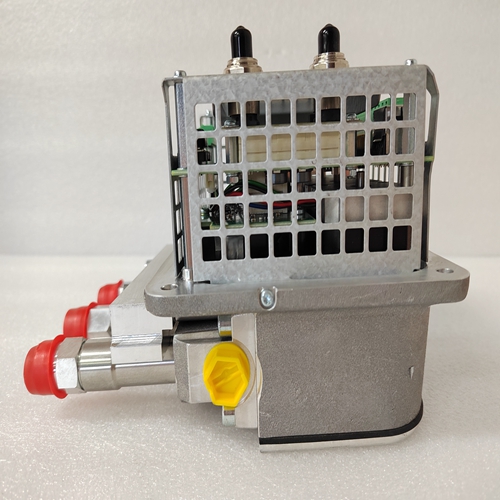

3HNA024871-001/03 DCS控制模塊
伺服驅動模塊連接、MAC電機的插頭和接線盒分配以及電纜的線路分配
連接如第5.6章的圖所示。
第5.3.1章至第5.2.8章中概述的單獨指南。
應遵循。
電源連接和控制開關的合適和推薦取決于所使用的電源模塊，在相應的供應模塊描述中概述。
從提供的附件上拆下以下部件：–用于L+和L-連接的連接電路母線，-端塞X1，
–模擬接口驅動模塊上的插入式端子以及馬達反饋連接，–低壓總線插頭X1連接的扁平帶總線電纜。這個
總線電纜X1的黑線應位于底部已接通電源。
用于線路監控的端塞，是附件套件的一部分電源模塊應插入最后一個模塊化單元（單元位于最遠的位置）。
線路橫截面的選擇尺寸應足以避免：
在最大環境溫度和應產生相應的電流。（建議見在DIN VDE 0113或EN 60204第1節中。）
電源連接處所有線路的橫截面必須扭曲，并且具有足夠的尺寸，即：–附加泄放器模塊TBM的管線必須扭曲，橫截面至少為6mm2（線路長度最大為2m）。
–連接額外TCM容量的線路必須扭曲，橫截面至少為10mm2
（見（1），6 mm2，帶TVM）（最大線路長度0.5m）。
–相鄰驅動模塊通常通過中間連接
電路母線，連接附件的一部分。如果這不應該在
在某些情況下是可能的，則連接必須以扭曲方式布置
盡可能短的線路（最大長度1m）。最小橫截面為10mm2
在這種情況下足夠了（見（1），6 mm2使用TVM）。
“GLD”型中間回路節流閥應連接至使用10mm2雙絞線的電源模塊。這些應為盡可能短。
The servo drive module connection, the plug and terminal box assignments of the MAC motors and the line assignments of the cable connections are depicted in the figures of Chapter 5.6. The individual guidelines outlined in Chapters 5.3.1 through 5.3.8. should be followed. The mains connection and the control switch approppriate and recommended for it depend upon the supply module used and are, therefore, outlined in the corresponding supply module description. Remove the following from the accessories as supplied: – link-circuit busbar for L+ and L- connections, – end plug X1, – the plug-in terminals on the drive module for the analogue interfaces and the motor feedback connection, as well as, – the flat belt bus cable for the low-tension bus plug X1 connections. The black lines of bus cable X1 should be at the bottom, once everything has been plugged in. The end plug for line monitoring, which is a part of the accessories kit for the supply module, should be plugged into the last modular unit (the unit located farthest away). Line cross-sections should be selected in a size sufficient to avoid any line overloading in the event that maximum ambient temperature and the corresponding currents should occur. (Recommendations can be found in DIN VDE 0113, or EN 60204, Section 1.) The cross-sections of all lines at power connections must be twisted and have a sufficient size, namely: – Lines to additional bleeder module TBM must be twisted with a crosssection of at least 6mm2 (line length max. 2m). – Lines to the additional TCM capacities must be twisted with a crosssection of at least 10mm2 (see (1), 6 mm2 with TVM) (max. line length of 0.5m). – Adjacent drive modules are usually connected via the intermediate circuit busbar, a part of the connecting accessories. If this should not in some cases be possible, then the connection must be laid out in twisted lines which are as short as possible (max length 1m). A minimum crosssection of 10mm2 suffices in this case (see (1), 6 mm2 with the TVM). – Intermediate circuit throttles of the ?GLD“ type should be connected to the supply module using twisted lines of 10mm2. These should be as short as possible.
