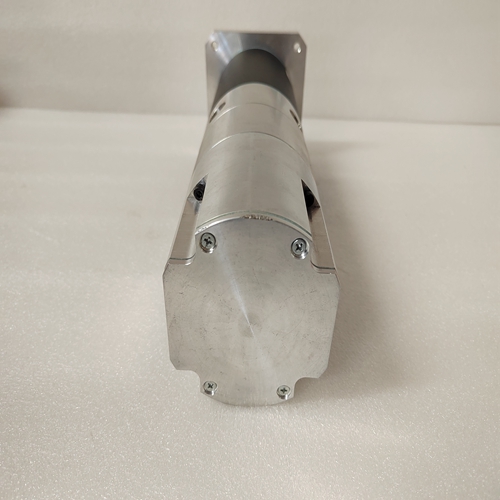

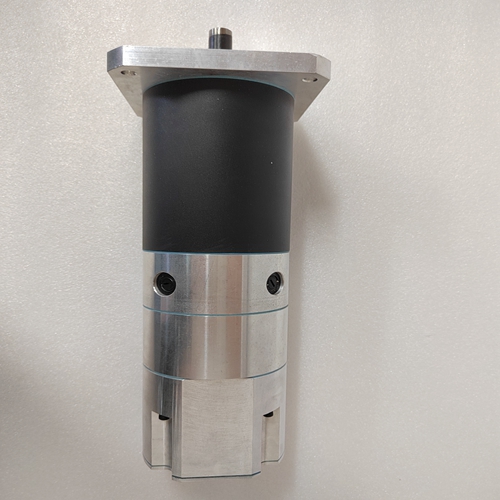

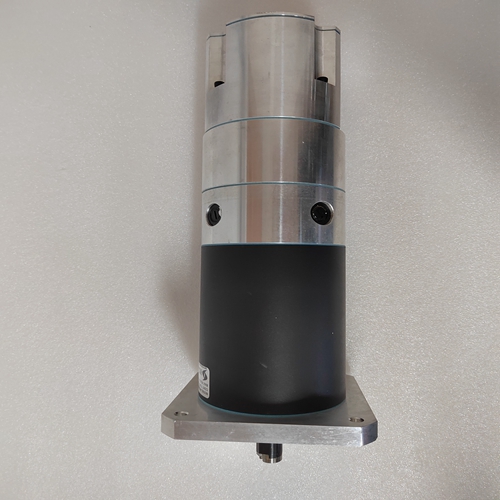

SERVO MTS30M4-38C永磁直流模塊
INDRAMAT提供的屏蔽電機反饋電纜包括：九行。它也可作為帶有電機端子的現成電纜提供和靜脈端套管。
電機電源電纜和反饋電纜均可具有最大值如果使用原始INDRAMAT電纜，長度為75m。
反饋電纜應盡可能單獨布線來自所有負載線路，如電源線、電機電源電纜和接觸器
控制器線路：由于可能的干擾源，它們表示，尤其是電纜長度較長（超過10m）。A.
建議與電機電源電纜之間的間隙至少為100mm。
反饋電纜必須單側接地至伺服驅動器單元屏蔽的接地連接必須短且直接盡可能。
電纜不應靠近高頻設備布線
變壓器、節流閥、電機和其他磁場產生的磁場消費者，以及高壓線路，否則會受到干擾可以耦合入。
通過布置電機電源電纜可實現最大屏蔽并且電機反饋電纜位于單獨的接地金屬管中（圖54），如果需要對抗干擾性提出高要求，為了–避免這兩條電纜之間的破壞性耦合，
–避免電機電源電纜對相鄰設備的破壞性反射電子生產設施和電源。位置編碼器的連接和最大電纜長度相應制造商的指南。長度取決于編碼器類型和控制器輸入數據。
編碼器的連接分配和最大電纜長度
INDRAMAT提供的信息可在以下適當?shù)拿枋鲋姓业剑悍祷氐奈恢谩?/p>
連接電纜的布線應與所有負載線分開如電源引線、電機電源電纜和接觸器控制器線路因為干擾。
電機電源和編碼器電纜應單獨布線，尤其是電纜長度較長（大于10m）且使用最大可能的間隙。
The shielded motor feedback cable supplied by INDRAMAT contains
nine lines. It is also available as a ready-made cable with motor terminal
and vein end sleeves.
Both the motor power cable and the feedback cable can have a maximum
length of 75m, if original INDRAMAT cables are used.
The feedback cable should be routed seperately and as far as possible
from all load lines such as mains lines, motor power cables and contactor
controller lines because of the possible source of interference they
represent, especially with longer cable lengths (longer than 10m). A
clearance of at least 100mm to the motor power cable is recommended.
The feedback cable must be single-sidedly earthed to the servo drive
module. The ground connection of the shield must be as short and direct
as possible.
The cable should not be routed close to high-frequency equipment,
magnetic fields from transformers, throttles, motors and other magnetic
consumers, as well as, high-voltage lines as otherwise interference
could be coupled in.
Maximum shielding can be achieved by routing the motor power cable
and the motor feedback cable in separate, grounded metal pipes, Fig. 54,
if high demands need to be made of the immunity to interference, in order
– to avoid disruptive couplings between both of these cables, and,
– to avoid disruptive reflections by the motor power cable onto adjacent
electronic production facilities and mains.Both the connection and maximum cable length of a position encoder
attached to the motor are outlined in the corresponding manufacturer’s
guidelnes. The length is dependent upon encoder type and controller
input data.
Both connection assignment and maximum cable length for the encoder
supplied by INDRAMAT can be found in the appropriate description for
position return.
The connecting cables should be routed seperated from all load lines
such as mains leads, motor power cables and contactor controller lines
because of interference.
Both the motor power and the encoder cables should be routed separately, particularly with longer cable lengths (greater than 10m) and using
the greatest possible clearances.
