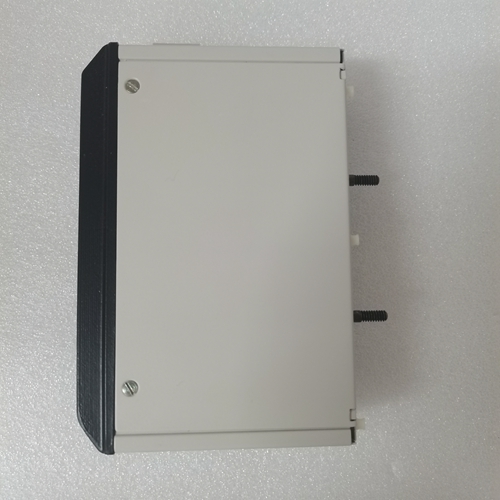

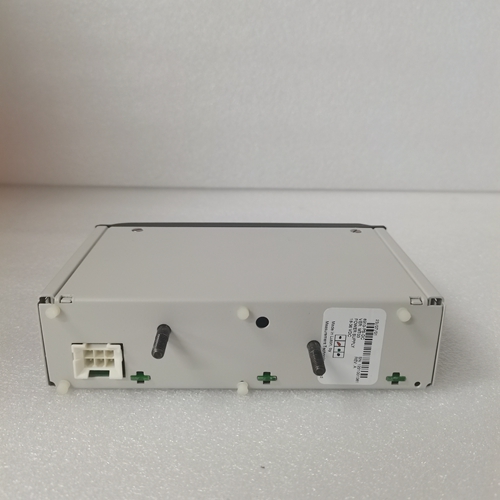

8910-PS-DC燃機控制器
手動調試a的簡要說明DCS400通過控制面板。
如果面板調試向?qū)Ь哂校菏 ?/p>
適用于以下圖表中的軟件版本108.0及更高版本
根據速度的不同調試步驟給出了測量結果。具體信息有關參數和面板處理，請參閱
相應章節。DCS400適用于230…500V的主電源沒有任何參數設置。監視軟件正在以一種新的方式工作。這個
最小允許電源電壓計算如下：電樞標稱電壓參數的平均值
(1.02). 如果電網電壓實際值低于計算電壓或參數，則電樞電壓太高與標稱電源電壓相關的高驅動
沒有開始。既不駕駛，也不自動調諧
正在工作。最小允許電源電壓為：按公式計算
Umains>=Uarm/（1,35 x cosα）
4-Q:Umains>=Uarm/（1,35 x 0866）
2-Q:Umains>=Uarm/（1,35 x 0966）
救濟根據以下內容設置參數Arm Volt Nom（1.02）：
DCS400手動和/或設置參數凈欠壓
跳閘（1.10）至較低（！）價值參數網欠壓跳閘（1.10）與標稱電源無關
電壓此參數定義了額外的安全性超出（計算）最小允許值的裕度
電源電壓。較高的（位置）值使監測更敏感、更低（也是負）值增加監測的容忍度。
另請參閱手冊章節：
2.2表2.2/4，推薦的直流電壓…
4.5.1監控電源電壓
6.4故障排除（故障、報警、診斷）
n驅動器未準備好運行
?A09緊急停止后：在操作面板DCS400PAN保持均勻
如果打開并運行，則命令將關閉和打開再一次零速Lev（5.15）=0rpm，分別過低。必須大于0rpm。
?正常運行期間：綠色和紅色LED在操作面板上，顯示DCS400PAN
驅動器的實際狀態。更多信息請參閱第6.4.4章“面板的重要性”LED的。接通電源后將檢查頻率和磁場電流。在10秒內，該檢查必須成功，并且驅動邏輯必須準備好運行。
否則將發生故障。n等待靜止診斷消息
該診斷消息可以在調試向?qū)陂g在任何自動調諧功能（字段，電樞、速度和磁通）和速度測量
調整（電動勢、模擬轉速表和編碼器）
零速度Lev（5.15）=0，分別過低。
必須大于0rpm。
Short description for manual commissioning a
DCS400 via control panel.
Follow this guide if panel commissioning wizard has
failed.
Valid for software version 108.0 and higher In the following charts the main structure of the
different commissioning steps refering to the speed
measurement are given. For the specific information
related to the parameters and panel handling see the
corresponding chapters.DCS400 is suitable for main supply of 230…500V
without any parameter settings. To monitor the main
supply the software is working in a new way. The
smallest allowable mains voltage is calculated by
means of parameter Armature Voltage Nominal
(1.02). If mains voltage actual is lower than calculated voltage or parameter armature voltage is too
high related to nominal mains voltage the drive
doesn’t start. Neither drive ON nor the autotunings
are working. The smallest allowable mains voltage is
calculated by formula
Umains >= Uarm / (1,35 x cos alpha)
4-Q: Umains >= Uarm / (1,35 x 0,866)
2-Q: Umains >= Uarm / (1,35 x 0,966)
Remedy
Set parameter Arm Volt Nom (1.02) in accordance to
DCS400 Manual and / or set parameter Net Underv
Trip (1.10) to a lower (!) value. Parameter Net
Underv Trip (1.10) is not related to nominal mains
voltage! This parameter defines an additional safety
margin over the (calculated) minimum allowable
mains voltage. Higher (pos.) values makes the
monitoring more sensitive, lower (also neg.) values
increase the tolerance of monitoring.
Refer also manual chapter:
2.2 table 2.2/4, Recommended DC voltage …
4.5.1 Monitoring the Mains Voltage
6.4 Troubleshooting (Faults, Alarms, Diagnostics)
n Drive not ready for operation
? After A09-Emergency Stop: Green LED at the
operating panel DCS400PAN is keeping off even
if ON and RUN command is switching off and on
again. Zero Speed Lev (5.15) = 0rpm , respectively too low. Has to be greater than 0rpm.
? During normal operation: Green and red LED‘s
at the operating panel DCS400PAN are showing
the actual state of the drive. For more information
please refer chapter 6.4.4 Significance of panel
LED’s. After ON command the mains supply and
frequency and field current will be checked.
Within 10 sec this check must be successful and
the drive logic has to be ready for operation.
Otherwise a fault will occur.
n Wait For Standstill diagnosis message
This diagnosis message can occur during Commissioning Wizard at any autotuning function (Field,
Armature, Speed and Flux) and Speed Measurement
Adjustment (EMF , Analog Tacho and Encoder) if
Zero Speed Lev (5.15) = 0 , respectively too low.
Has to be greater than 0rpm.
