公司主營產品圖展示
產品優勢
1：國外專業的供貨渠道，具有價格優勢
2：產品質量保證，讓您售后無憂
3：全國快遞包郵
產品詳情介紹

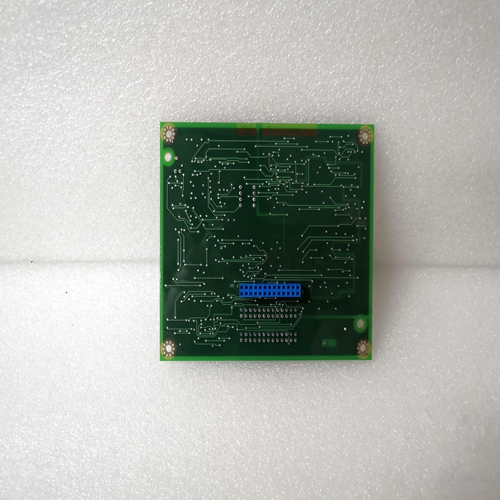

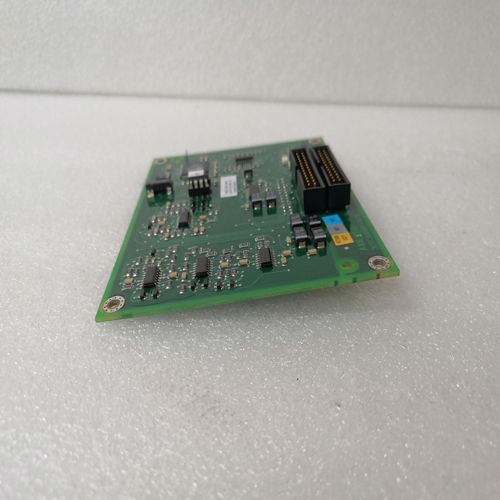

3ASC25H216A可控板配件
從TSwin.net版本4.10開始，PC客戶端集成到接口中，并且可以從菜單（工具-TSDiag+）開始。
要使用沒有TSwin的客戶機/服務器。net在PC上進行安裝。跑使用文件“TSDiag+_Installer_PC.exe”執行此操作。安裝后，適當?shù)臈l目（Sütron->TSDiag+）在Windows開始菜單中可用。鏈接“TSDiag+客戶端”啟動客戶端。通過鏈接“TSDiag+服務器”啟動服務器。
由于程序?qū)⑦B接數據存儲在一個文件中，因此如果使用TSDiag+的所有用戶都具有該目錄的寫入權限，這將是有利的。首先，將必要的文件傳輸?shù)讲僮髟O(shè)備。對于分辨率為160 x 80像素的操作設備，交互式安裝的特殊版本是：可獲得的對于所有其他操作設備，請使用標準版本。
對于操作設備上的轉移和安裝，有兩種可能性：
–FTP傳輸安裝文件，并在操作設備啟動期間自動安裝TSDiag服務器
–使用USB記憶棒進行交互式安裝，并安裝TSDiag服務器和客戶端（可選）。5.保存文件。
6.使用FTP程序?qū)⑽募皊tarter.bat”復制到操作設備的根目錄。
重新啟動操作設備。
現在，在操作設備每次啟動時自動檢查已安裝TSDiag服務器。如果服務器不存在，則會自動安裝。
用戶管理的設置將保持不變。將打開安裝對話框TSDiag。激活資源管理器后，安裝對話框可能在后臺打開。如果是這種情況，首先用OK按鈕確認任何進一步的對話框，然后用Exit和OK關閉啟動器。現在TSDiag的安裝對話框應該可見。8.按安裝對話框上的下一步按鈕。執行各個步驟后，您可以啟動并使用TSDiag+和
桌面上的鏈接。TSDiag服務器在自動啟動后自動啟動安裝交互式安裝后，您必須手動重新啟動服務器
使用桌面快捷方式。每次執行以下操作時，TSDiag服務器將自動啟動：
重新啟動操作設備。如果出于任何原因，注冊表中所做的更改
丟失，例如，如果手動刪除注冊表或執行圖像更新，則可以隨時重新啟動安裝程序。同時指定的設置和
創建的用戶保存在安裝目錄中的文件中，因此在以下情況下保留：您執行重新安裝。TSDiag+中可調整的所有設置保存在文件settings.dat中。
此文件已加密，并受校驗和保護。因此，您不應編輯手動設置文件。用戶存儲在文件users中。dat，其也受到保護。
使您能夠在多臺計算機或操作設備上使用相同的用戶無需手動創建，您可以從一臺設備復制用戶文件另一個。用戶在下次重新啟動TSDiag時可用+服務器
As of TSwin .net version 4.10, the PC client is integrated into the interface and can
be started from the menu (Tools - TSDiag+).
To use the client / server without TSwin. net on a PC a installation is required. Run
the file "TSDiag+_Installer_PC.exe" to do this. After installation, appropriate entries
(Sütron -> TSDiag+) available in the Windows start menu. The link "TSDiag+ Client"
starts the client. Start the server via the link "TSDiag+ Server".
Because the program stores the connection data in a file, it is advantageous if all users that are working with TSDiag+ have write authorization for this directory.First, the necessary files are transferred to the operating device. To operating devices with resolution 160 x 80 pixels a special version of the interactive installation is
available. For all other operating devices use the standard version.
For transfer and installation on the operating device, there are two possibilities:
– FTP transfer of the installation files and install TSDiag server automatically during startup of the operating device
– Interactive installation with a USB stick and install TSDiag server and client optionally 5. Save the file.
6. Copy the file "starter.bat" with the FTP program to the root directory of the operating device.
7. Restart the operating device.
Now, it is checked at every start of the operating device automatically whether the
TSDiag server is installed. If the server does not exist it is automatically installed.
Settings of user management will remain unchanged.The installation dialog TSDiag opens. When activated the explorer, the installation
dialog may open in the background. If this were the case, first confirm any further dialogs with the OK button and close the launcher with Exit and OK. Now the installation dialog of TSDiag should be visible.
8. Press the Next button at the installation dialog.After you have executed the individual steps, you can start and use TSDiag+ with the
links on the desktop. The TSDiag server is started automatically after the automatic
installation. After the interactive installation, you have to restart the server manually
with the desktop shortcut. The TSDiag server is started automatically each time you
restart the operating device. If, for any reason, the changes made in the registry are
lost, for example, if you manually delete the registry or execute an image update, you
can restart the installer at any time. The settings specified in the meantime and the
users created are saved in files in the installation directory and are thus retained if
you perform a reinstallation.All settings that can be adjusted in the TSDiag+ are saved in the file settings.dat.
This file is encrypted and is protected by a check sum. Therefore, you should not edit
the file manually. The users are stored in the file users.dat, which is also protected.
To enable you to use the same users on multiple computers or operating devices
without having to create them manually, you can copy the user file from one device
to another. The users are then available the next time you restart the TSDiag+
server.
