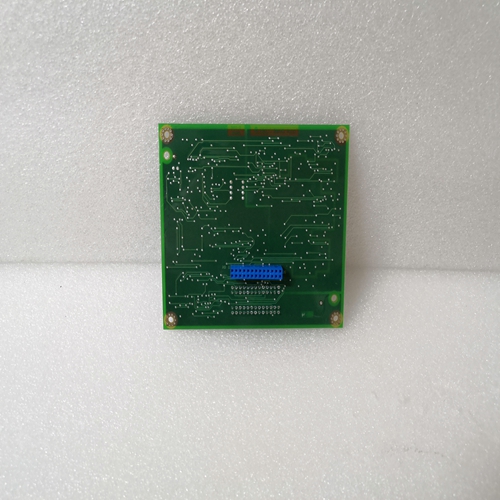

3ASC25H219B工控卡件庫存
CS31系統總線連接是電氣隔離的來自其余模塊組件。
該模塊提供診斷功能（參見章節“診斷和顯示”）。顯示和連接
模塊外殼1 16個黃色LED，用于顯示信號狀態輸出2個LED“總線錯誤”、“過載”和“電源”指示操作條件和錯誤（參見“診斷和顯示”部分）
3 CS31總線連接器（輸入）
4 CS31總線連接器（輸出）
5 16個輸出連接器
6個PG11電纜密封套，用于24 V DC電源
7 24 V DC和PE的端子位于可拆卸的蓋子?？梢詮捻敳窟M入模塊。用于設置模塊的DIL開關地址也在封面下面。
8標簽字段
9安裝鉆孔（另見“尺寸標注圖紙”）
電氣連接
下圖顯示了電氣連接.尋址必須在每個模塊上設置地址，以便中央單元可以正確訪問輸入和輸出。
關于項目的詳細描述“尋址”包含在章節中中央單元和耦合器的“尋址”。
模塊地址設置在位于在模塊頂部的蓋子下面。使用中央控制單元07 KR 91、07 KT 92或07 KT 93，可能的模塊地址范圍為0...61.
與中央單元07 KR 91和07 KT 92/KT93作為總線主站，地址如下
分配有效：模塊在CS31系統總線上使用16個輸出。
I/O配置對于此模塊，不需要I/O配置
正常操作模塊在通電后初始化初始化所有指示燈都亮起。
初始化后，兩個紅色LED熄滅同樣，如果總線運行正常，模塊未檢測到任何錯誤。綠色LED“電源”燈亮起。16個黃色LED指示通道A0…A15
The CS31 system bus connection is electrically isolated
from remaining module components.
The module offers diagnosis functions (see chapter
”Diagnosis and displays”).
Displays and connections at
module housing
1 16 yellow LEDs for displaying the signal statuses of
the outputs
2 LEDs ”Bus Error”, ”O(jiān)verload” and ”Supply”
indicating of operating conditions and errors (see
section ”Diagnosis and displays”)
3 CS31 bus connector (input)
4 CS31 bus connector (output)
5 16 connectors for the outputs
6 PG11 cable gland for the 24 V DC power supply
7 The terminals for 24 V DC and PE are located under
a removable cover. It is accessible from the top of
the module. The DIL switch for setting the module
address is also under the cover.
8 Labelling fields
9 Bore holes for mounting (see also ”Dimensioned
drawing” at the end of this description)
Electrical connection
The following figure shows all details necessary for the
electrical connection.Addressing
An address has to be set on each module, so that the
central unit can access the inputs and outputs correctly.
A detailed description concerning the item
”Addressing” is contained in the chapters
”Addressing” of the central units and couplers.
The module address is set on the DIL switch located
under the cover at the top side of the module.When using the central units 07 KR 91, 07 KT 92 or
07 KT 93, the possible module addresses range from
0...61.
In connection with the central units 07 KR 91 and
07 KT 92/KT93 as bus masters, the following address
allocations are valid:The module uses 16 outputs on the CS31 system bus.
I/O configuration
With this module, an I/O configuration is not necessary.
Normal operation
The module initializes itself after power ON. During
initialization all LEDs are ON.
After the initialization, the two red LEDs go out
again, if the bus is running correctly and the module
does not detect any error. The green LED ”Supply”
lights up.
The16 yellow LEDs indicate the signal statuses of
the channels A0...A15
