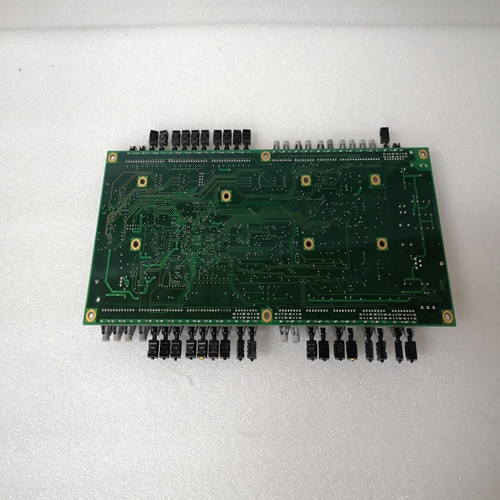

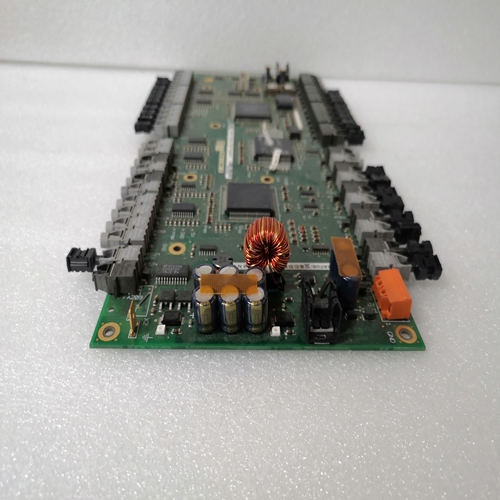

3BHE004573R0142控制板卡
預期用途模擬輸入模塊ICDT 08 B5是一個遠程模塊在CS31系統總線上。它有8個模擬輸入通道具有以下功能：通道成對配置，用于以下溫度或電壓的連接
傳感器：+10伏/+5伏/+500毫伏/+50毫伏4…20 mA（帶外部250分流器）
Pt100/Pt1000線性化J、K和S型熱電偶帶線性化只能使用電氣隔離傳感器。+5 V的范圍也適用于測量0…20 mA，如果使用250的外部分流器。輸入通道的配置以及模塊地址的設置在DIL中執行開關。
ICDT 08 B5模塊在字中使用一個地址輸入范圍為0…6。8個通道中的每個通道都需要16位。
該模塊由24 V DC供電。CS31系統母線連接與其余部分電氣隔離模塊組件。
該模塊提供多種診斷功能（請參見“診斷和顯示”一章）。自校準是由模塊內部控制循環執行環行顯示器和操作元件前面板1 8個綠色LED用于通道選擇和診斷，8個綠色LED用于粗略顯示模擬頻道
2屬于LED的診斷信息列表，如果用于診斷3個紅色LED指示燈顯示錯誤消息4測試按鈕
電氣連接模塊安裝在15 mm高的DIN導軌上或用4個螺釘固定。
下圖顯示了模擬輸入模塊的電氣連接
所有溫度和電壓傳感器的端子必須與安裝環境電氣隔離。這個傳感器電纜的電纜屏蔽連接到開關設備當電纜進入開關柜時，機柜接地。輸入通道的配置以及模塊地址在DIL開關處執行（見下頁）。所有輸入信號都被評估為差分信號。這個傳感器信號以雙極連接至輸入端U+和U–（示例見圖5.2.5–2）。這個輸入信號和輸出之間的關系數值如圖5.2.5-7所示5.2.5–9.所有未使用的通道必須短路
（另請參見配置為Pt100/Pt1000通道）。+10伏/+5伏/+500毫伏/+50毫伏設置的測量范圍轉換為數字無線性化的數字范圍如下：模擬表示a:–4095…0….+4095模擬表示b:–32760…0….+32760如果輸入電壓超出測量范圍，則輸出+32767的溢出數。如果輸入電壓下溢測量范圍，下溢數值輸出–32767的。在這兩種情況下，錯誤消息都是通過CS31系統總線發送。所有未使用的通道必須短路。
Intended purpose
The analog input module ICDT 08 B5 is a remote module
on the CS31 system bus. It has 8 analog input channels
with the following features:
The channels are configured in pairs for the
connection of the following temperature or voltage
sensors:
+ 10 V / + 5 V / + 500 mV / + 50 mV
4...20 mA (with an external 250 shunt)
Pt100 / Pt1000 with linearization
Thermocouples of types J, K and S
with linearization
Only electrically isolated sensors may be used.
The range of + 5 V is also suitable for measuring
0...20 mA, if an external shunt of 250 is use The configuration of the input channels as well as the
setting of the module address are performed at DIL
switches.
The ICDT 08 B5 module uses one address in the word
input range of 0...6. Each of the 8 channels needs 16 bits.
The module is supplied with 24 V DC. The CS31 system
bus connection is electrically isolated from the remaining
module components.
The module offers a number of diagnosis functions (see
chapter ”Diagnosis and displays”). A self–calibration is
carried out cyclically by the module’s internal control
circuit.
isplay and operating elements on the
front panel
1 8 green LEDs for channel selection and diagnosis,
8 green LEDs for a rough display of an analog
channel
2 List of diagnosis information belonging to the LEDs,
if they are used for diagnosis
3 Red LED for error message
4 Test button
Electrical connection
The module is mounted on a 15-mm-high DIN rail or
fastened with 4 screws. The following figure shows the
electrical connection of the analog input module.The terminals of all temperature and voltage sensors have to
be electrically isolated from their mounting environment. The
cable shields of the sensor cables are connected to the switchgear
cabinet earthing when the cables enter the switchgear cabinet.
The configuration of the input channels as well as the setting of the
module address are performed at DIL switches (see next page).All input signals are evaluated as differential signals. The
sensor signals are connected double–pole to the inputs
U+ and U– (for examples see Fig. 5.2.5–2). The
relationship between the input signals and the output
numerical values is shown in the figures 5.2.5–7 to
5.2.5–9. All unused channels have to be short–circuited
(see also the termination of unused inputs configured as
Pt100/Pt1000 channels).
+ 10 V / + 5 V / + 500 mV / + 50 mV
The set measuring range is converted into the numerical
number range without linearization in the following way:
Analog representation a: –4095 ... 0.... +4095
Analog representation b: –32760 ... 0....+32760
If input voltages overflow the measuring range, the
overflow number of +32767 is output. If the input voltage
underflows the measuring range, the underflow number
of –32767 is output. In both cases, an error message is
sent via the CS31 system bus.
All unused channels have to be short–circuited.
