產品詳情介紹

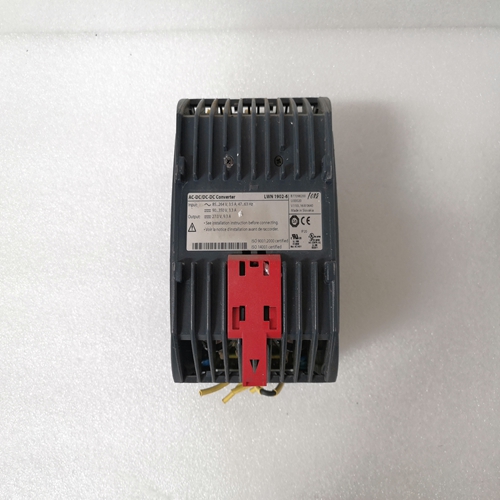

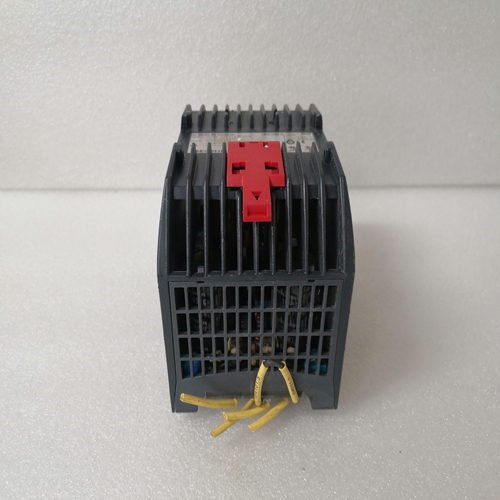

LWN1902-6開關電源模塊
預設開始值您可以預設正負起始值用于計數器。計數操作從起始值開始繼續與中的箭頭對應直到啟用停止或開始值為再次加載。
負起始值最小負啟動值為–32768（8000H）。通過預設負起始值，因此可以最多計數32768個脈沖，直到零穿過柜臺。
正起始值如果預設了正的起始值，計數器將遞增計數
值為+32767（7FFFH），繼續值為-32768（8000H）時的計數操作然后在到達從–1過渡到0。
最小正起始值為1。如果您預設此值
值，65535個脈沖將計數為零十字路口為了計數超過32767個脈沖過零，必須計算起始值
根據以下方程式：
起始值=32767–（脈沖數–32768）
例子：將對40000個脈沖進行計數。起始值在正范圍內，因?yàn)楦啾仨殞?duì)32768個脈沖進行計數。技術數據07 KT 93通常，ABB Procontic CS31系統說明第2卷中列出的技術系統數據對所有模塊和中央單元。以下列出了其他數據或與系統數據不同的數據。3.5.1一般數據二進制輸入數24二進制晶體管輸出數量16通過CS31系統總線通過多達744個二進制輸入擴展I/O496個二進制輸出96個模擬輸入通道48個模擬輸出通道與二進制輸入和輸出相比，總共最多31個遠程模塊，與CS31系統總線接口相比（另請參見圖3-5）潛在差異為了避免07 KT 93中央單元和連接到COM1接口的外圍設備，提供此設備從開關柜插座（另見接地圖3–3中的連接）。
Preset start values
You can preset both positive and negative start values
for the counter.
The counting operation starts at the start value and is
continued in correspondence with the arrows in the
diagram until the enabling is stopped or a start value is
loaded again.
Negative start value
The minimum negative start value is
–32768 (8000H).
By presetting a negative start value it is thus possible
to count a maximum of 32768 pulses up to the zero
crossing of the counter.
Positive start value
If a positive start value is preset, the counter counts up
to the value of +32767 (7FFFH), continues the
counting operation at the value of–32768 (8000H) and
then signals the zero crossing when reaching the
transition from –1 to 0.
The minimum positive start value is 1. If you preset this
value, 65535 pulses will be counted up to the zero
crossing.
In order to count more than 32767 pulses up to the
zero crossing, the start value has to be calculated
according to the following equation:
Start value = 32767 – (number of pulses – 32768)
Example:
40 000 pulses are to be counted.
The start value is in the positive range, because more
than 32768 pulses have to be counted.Technical data 07 KT 93
In general, the technical system data listed in volume 2 of the system description ABB Procontic CS31 are valid for all
modules and central units. Additional data or data which are different from the system data are listed as follows.
3.5.1 General data
Number of binary inputs 24
Number of binary transistor outputs 16
I/O expansion via CS31 system bus by up to 744 binary inputs
496 binary outputs
96 analog input channels
48 analog output channels
max. 31 remote modules altogether Technical data 07 KT 93
In general, the technical system data listed in volume 2 of the system description ABB Procontic CS31 are valid for all
modules and central units. Additional data or data which are different from the system data are listed as follows.
3.5.1 General data
Number of binary inputs 24
Number of binary transistor outputs 16
I/O expansion via CS31 system bus by up to 744 binary inputs
496 binary outputs
96 analog input channels
48 analog output channels
max. 31 remote modules altogether versus binary inputs and outputs,
versus CS31 system bus interface
(see also Fig. 3–5)
Potential differences In order to avoid potential differences between the
07 KT 93 central unit and the peripheral device connected to the COM1 interface, this device is supplied
from the switch cabinet socket (see also the earthing
connections in Fig. 3–3).
