產品詳情介紹

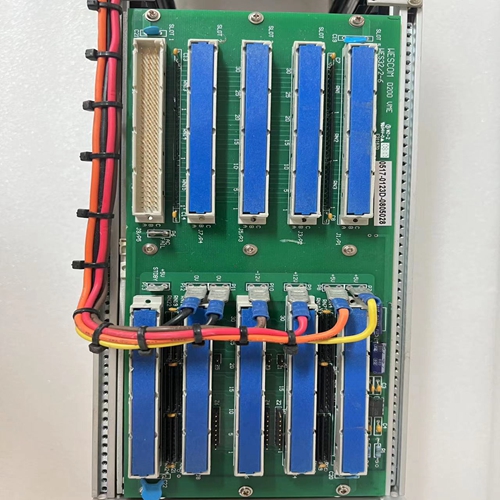

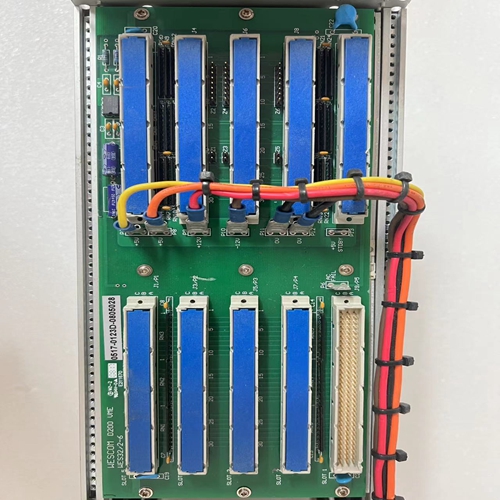

WESCOM D200 VME燃機電氣卡件
有以下兩種主要模塊類型：–二進制模塊。這些模塊由二進制I/O操作數的平均值（分別為E或A）。
機器人耦合器ICBG 32 L7和ICBG 64 L7（通常用作奴隸）也屬于他們，以及中央單元07 KR 91、07 KT 92、07 KT93、，07 KR 31和07 KT 31，如果它們被用作奴隸。
–模擬模塊。這些模塊由字I/O操作數（EW或AW，分別）。中央單元07 KR 91、07 KT 92、，07 KT 93和高速計數器ICSF 08 D1，接收其預設數據例如，作為單詞數據。下表包含模塊概述類型。這些名稱將在示例6中使用。請注意，可配置的二進制模塊ICSC 08 L1和ICFC 16 L1的表現不同到執行的設置。I/O配置A3.1 I/O配置的目的模塊根據I/O模塊的類型，
以下各項可以配置：
對于二進制I/O模塊，輸入延遲不同出廠設置，如果是帶有組合I/O的二進制模塊通道，這些通道也可以定義為僅輸入或僅輸出，如果是二進制模塊，則在輸入和輸出，如果是模擬模塊，測量或輸出與出廠設置不同的范圍。切換輸入和輸出，打開診斷功能和更改測量和輸出范圍執行如下，具體取決于模塊類型：通過CS31系統執行I/O配置總線，通過總線的用戶程序主中央單元或通過終端插入式底座ECZ或輸入/輸出模塊后側輸入/輸出模塊端子上的外部接線。
在某些情況下，設置之間存在關系遠程模塊上的信息和可以在遠程模塊或通過CS31系統總線。這種關系將在以下章節中進行解釋。您無需執行I/O配置如果出廠設置足夠，則通過CS31系統總線。執行I/O配置后，它將保持存儲在相應的I/O模塊中，到再次更改。即使斷電，也不會刪除。I/O configuration
A3.1 Purpose of the I/O configuration of I/O
modules
Dependent on the type of I/O modules the following can
be configured:
in case of binary I/O modules, an input delay different
from the factory setting,
in case of binary modules with combined I/O
channels, these channels can also be defined as
input only or output only,
in case of binary modules, open-circuit monitoring at
inputs and outputs,
in case of analog modules, measuring or output
ranges which differ from the factory setting.
Switching over of inputs and outputs, switching on the
diagnosis functions and changing the measuring and
output ranges are performed as follows, depending on the
module type:
Performing the I/O configuration via the CS31 system
bus, either by means of the user program of the bus
master central unit or by means of a terminal
Setting of switches on the plug-in base ECZ or on the
rear side of the input/output module
External wiring on the input/output module terminals.
In some cases, there is a relation between the settings
made on the remote module and the information and
diagnosis messages which can be interrogated at the
remote module or via the CS31 system bus. This relation
will be explained in the following chapters.
There is no need for you to perform an I/O configuration
via the CS31 system bus if the factory setting is sufficient.
Once an I/O configuration has been performed, it will
remain stored in the corresponding I/O module until it is
changed again. Even in case of power OFF it will not be
deleted.
