產品詳情介紹

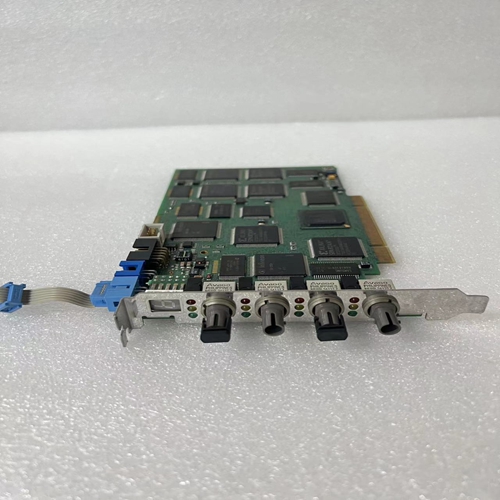

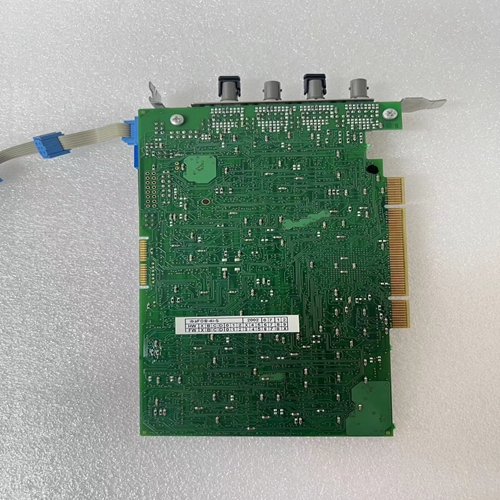

IBA ibaFOB-4i-S工業數據采集卡
二進制模塊的設置和診斷
下表概述了I/O配置和相關診斷功能用于不同的模塊類型。說明功能完全可用。設置和錯誤可以從相關頻道進行詢問。
部分功能可用，請參閱模塊說明。
1） 關于設置和診斷數據，請參見模塊說明和章節“讀取I/O配置和診斷模塊中的數據”（見下文）。BE總線錯誤=總線故障，始終受到監控。這個模塊未收到總線主控器的呼叫，
e、 因為公交線路斷了。CI輸入斷線=斷路（監控）輸入（如果已配置）。每個輸入電路監控裝置必須配備一個電阻20…30 k，例如與信號觸點并聯。CO切斷輸出線=斷路（監控）輸出（如果已配置）。每個輸出都需要
當ON信號為輸出ID輸入延遲=信號延遲時間的變化輸入。
僅IO輸入=每個終端（通道）可以配置為僅作為輸入（而不是作為組合輸入/輸出）。
僅限OO輸出=此模式通過開關設置
在插入式底座ECZ上。無法通過I/O進行設置配置，請參閱模塊說明。
OL過載（始終受到監控）。
SC短路（始終受到監控）。
UE單元錯誤=模塊的內部錯誤（故障）（始終盡可能監控內部處理器檢測到此）。說明：1） 關于設置和診斷數據，請參見模塊說明和章節“讀取I/O配置和診斷模塊中的數據”（見下文）。*)通過開關改變范圍，激活斷路通過I/O配置進行監控BE總線錯誤=總線故障，始終受到監控。這個模塊未收到總線主控器的呼叫，e、 因為公交線路斷了。OE輸出錯誤=輸出電路中的錯誤。
ICSA 04 B5：配置為4…20毫安。
ICSM 06 A6：配置為+10伏。UE單元錯誤=模塊的內部錯誤（故障）（始終盡可能監控內部處理器檢測到這一點）。
A出廠設置K通過I/O配置更改范圍通過CS31系統總線S通過DIL開關改變量程模塊后側V電壓和電流之間的轉換額外的外部跳線。無規范，如果只需使用另一個終端。
Settings and diagnosis on binary modules
The following tables give you an overview on the I/O
configurations and the diagnosis functions related to
them for the different module types.Explanation
Feature is completely available. Settings and errors
can be interrogated from the involved channel.
() Feature is partly available, see module description.
1) Concerning the interrogation of settings and
diagnosis data, see the module description and
chapter ”Reading I/O configuration and diagnosis
data at the module” (see below).
BE Bus Error = Bus malfunction, always monitored. The
module does not receive a call from the bus master,
e.g. because of a broken bus line.
CI Cut Wire of Inputs = Open circuit (monitoring) at
inputs, if configured. Each input circuit to be
monitored has to be equipped with a resistor of
20...30 k, e.g. in parallel to the signalling contact.
CO Cut Wire of Outputs = Open circuit (monitoring) at
outputs, if configured. Each output expects a
minimum load of approx. 40 mA when an ON signal is
output.
ID Input Delay = Change of the signal delay time at
inputs.
IO Input only = Each terminal (channel) can be
configured so that it works only as an input (not as
combined input/output).
OO Output only = This mode is set by means of a switch
on the plug-in base ECZ. Setting is not possible by I/O
configuration, see the module description.
OL Overload (is always monitored).
SC Short circuit (is always monitored).
UE Unit error = internal error (fault) of the module (always
monitored in so far as the internal processor can
detect this).
Explanation: 1) Concerning the interrogation of settings and diagnosis data, see the module description and chapter ”Reading I/O configuration and diagnosis data at the module” (see below). *) Changing range by switch, activating the open-circuit monitoring by I/O configuration BE Bus Error = Bus malfunction, always monitored. The module does not receive a call from the bus master, e.g. because of a broken bus line. OE Output Error = Error in the output circuit. ICSA 04 B5: Open circuit at outputs configured to 4...20 mA. ICSM 06 A6: Short circuit at outputs configured to + 10 V. UE Unit error = internal error (fault) of the module (always monitored in so far as the internal processor can detect this). A Factory setting K Changing the range by means of the I/O configuration via the CS31 system bus S Changing the range by means of DIL switches on the rear side of the module V Change-over between voltage and current by means of an additional external jumper. No specification if only another terminal has to be used.
