產品內容介紹

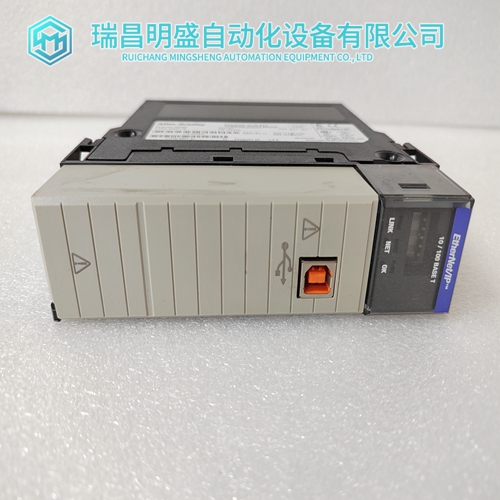

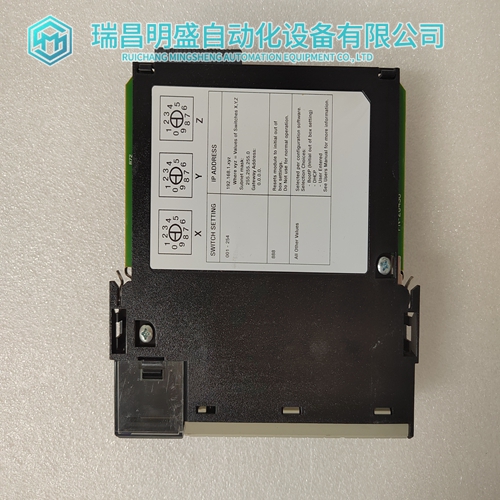

1756-EN2T/B工業模塊
吞吐量實例在八通道模塊上，2個通道低于范圍。分配的所有寄存器至模塊的數據將每1150ms更新一次，直到輸入超出范圍通道返回有效范圍。當他們這樣做時，更新間隔將返回到710毫秒。
更新間隔=（400或710）+（超出范圍通道X 220）
使用上面的示例：（710）+（2 X 220）=1150毫秒
如果一個通道返回到有效范圍，更新間隔將減少到930毫秒。注：只要通道超出范圍，分配給它的寄存器將數據為0000（4095升高），低于范圍，或4096（8192升高），高于范圍范圍（參考第176頁的數據值參考圖）
*更新間隔是更新所有分配給模塊的寄存器。
注：任何模塊運行時診斷故障都將導致0000值為返回到控制器，而不考慮所選范圍。輸入范圍下表顯示了每個輸入范圍可接受的五個輸入范圍組模塊將接受高于其指定值2%的輸入FSR范圍，但不會進入超范圍條件，但不會低于范圍。
為了確定輸入的負載和保護注意事項勵磁電路，下圖是輸入電路前部的示意圖終止注意內置250? 連接到電流輸入端子的電阻器。
什么時候電流檢測端子外部跨接至正極輸入端子
無論電壓范圍如何，該輸入都可能有電流輸入所選數據更新周期是模塊顯示新數據所用的時間每個通道。對于四個輸入電路，此周期不超過2.4ms；對于一個8輸入電路配置，該周期不超過3.0ms。
自動校準內部自動校準過程在適當?shù)臅r間執行（如有必要）以補償前端漂移的信號處理。
自動校準功能采用反饋機制調整參考電壓，以抵消模數轉換器。校準在后臺持續監控并在必要時進行調整。
下圖顯示了自動校準所有五個輸入范圍的點數。自動校準點由上的粗點表示坡度線。
自動校準過程使用10 V參考電壓校準模塊。
這個參考電壓出廠時預設為10伏（歸零至四位）。它應每年在該領域進行一次調整。
Throughput Rate Example
On an eight channel module, 2 channels are under range. All the registers assigned to the module will be updated every 1150ms, until the inputs on the out of range channels return to the valid range. When they do, the update interval will return to 710ms. Update Interval = (400 or 710) + (Out of Range Channels X 220) Using the example above: (710) + (2 X 220) = 1150ms If one channel returned to the valid range, the update interval would reduce to 930ms.Note: As long as the channel is out of range, the register assigned to it will either have data of 0000 (4095 Elevated), under range, or 4096 (8192 Elevated), over range. (Refer to Data Value Reference Chart, p. 176) * The Update Interval is the amount of time necessary to update the data for all the registers assigned to the module. Note: Any module run-time diagnostic failure will result in a 0000 value being returned to the controller, regardless of selected range.
Input Ranges
The following table shows the five input ranges acceptable to each input range group. The module will accept an input as much as 2% FSR above its specified range without going into an over-range condition, but nothing below range. For purposes of determining load and protection considerations for the inputting of field circuits, The following figure is a schematic diagram of the input circuit’s front end. Note the built-in 250 ? resistor connected to the current input terminal. When the current sense terminal is externally jumpered to the positive input terminal, current input becomes possible for that input regardless of the voltage range selected The data update period is the time taken by the module to present fresh data for each channel. With four input circuits, this period is no more than 2.4 ms; for an eight input circuit configuration, this period is no more than 3.0 ms. Autocalibration An internal autocalibration process is executed at appropriate times (if necessary) to compensate signal processing for front end drift. The autocalibration function employs feedback mechanisms to adjust the reference voltage to offset gain in the analog to digital converter. Calibration is monitored continuously in the background and adjusted if and when necessary. The following figure shows autocalibration points for all five input ranges. Autocalibration points are indicated by heavy dots on slope line. The autocalibration process uses the 10 V reference to calibrate the module. The reference voltage is factory preset to exactly 10 volts (zeroed to four places). It should be readjusted in the field once per year.
公司主營產品圖展示
產品優勢
1：國外專業的供貨渠道，具有價格優勢
2：產品質量保證，讓您售后無憂
3：全國快遞包郵
4：一對一服務
公司主營范圍簡介
PLC可編程控制器模塊，DCS卡件，ESD系統卡件，振動監測系統卡件，汽輪機控制系統模塊，燃?xì)獍l(fā)電機備件等，優勢品牌：Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各種進口工業零部件、歐美進口模塊。
產品廣泛應用于冶金、石油天然氣、玻璃制造業、鋁業、石油化工、煤礦、造紙印刷、紡織印染、機械、電子制造、汽車制造、塑膠機械、電力、水利、水處理/環保、鍋爐供暖、能源、輸配電等等
