產品內容介紹

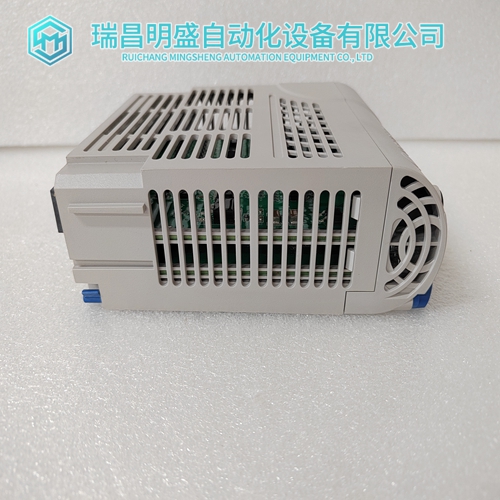

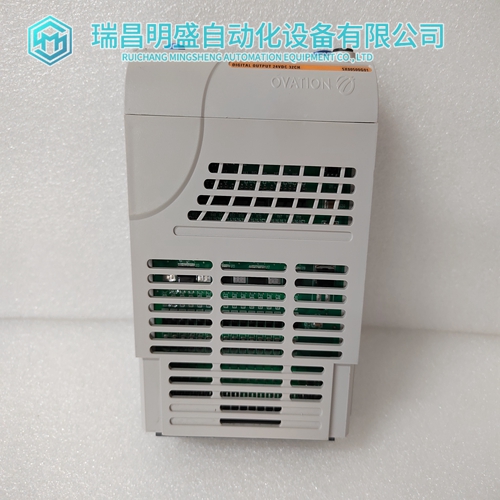

5X00500G01電源接口模塊
要正確設置模擬輸入模塊，八位DIP開關必須與位于左側的五位DIP開關的SW5一起設置單元這些開關確定輸入范圍、輸出格式、要平均化的樣本和輸入類型。B875–200可配置A/D輸入，概述概述B875–200可配置A/D輸入模塊可轉換多種信號源：熱電偶、RTD、應變計/稱重傳感器、電壓和電流輸入范圍二進制數據。當為八個通道選擇時，模塊顯示在I/O中地圖為B875–200；當為四個通道選擇時，它顯示在I/O圖中作為B873-200。該模塊提供了輪詢各種現場設備的能力，需要不同的信號源取決于所選的應用。選擇可能是由超過48個可用的輸入包組成，每個模塊的任何組合可以接受。
八位DIP開關用于根據單元此外，兩位跳線用于選擇0、2或4個樣本每個輸入的平均值。平均有助于減少虛假噪聲對輸入。
一些應用示例包括食品加工、壓榨操作、化學加工、涂漆和鑄造。
該模塊有四/八個模擬輸入，能夠更新所有八個通道每4毫秒一次。
所有范圍的12位分辨率和絕對精度取決于輸入包類型。
這允許快速精確地控制應用輸入包插入程序使用以下步驟插入所需的輸入包。
步驟操作
1取下與所需輸入包位置相對應的通道拉出卡舌。
2將輸入包插入對應于所需通道的模塊右側。排列輸入包，以便菲利普斯頭螺釘位于頂部，14根引線位于底部。3擰緊十字頭螺釘。
注：當使用AS–5B3201A或AS–5B32002A電流輸入包時
易熔電阻器也必須插入電路板。合適的熔斷電阻器（Modicon部件號AS–0418–000）隨當前輸入包提供。
注：插入輸入包之前，務必插入可熔斷電阻器。如果易熔電阻器是矩形的，確保有兩根引線的一側靠近輸入包。
注：切勿在相鄰?fù)ǖ乐g放置熔斷電阻器。這可以是當易熔電阻器隱藏電路板上通道標簽上的CH時檢測到。
4找到模塊隨附的寫在標簽上的標牌（Modicon零件號AS–157A–000）。確保輸入包目錄編號和每個輸入的輸入寄存器編號安裝的包在標簽上有明確標識。
B875–200 Configurable A/D Input
Overview General The B875–200 Configurable A/D Input Module converts a variety of signal sources: thermocouple, RTD, strain gauge/load cell, voltage and current input ranges into binary data. When selected for eight channels, the module is displayed in the I/O map as a B875–200; when selected for four channels, it is displayed in the I/O map as a B873-200. The module provides the capability to poll a wide array of field devices requiring different signal sources based upon the application selected. Selection may be made from more than 48 available input packs, with any mix per module being acceptable. An eight-position DIP switch is used to select from one to eight input channels per module. In addition, a two-position jumper is used to select either 0, 2, or 4 samples to be averaged per input. Averaging helps reduce the impact of spurious noise on the input. Some application examples include food processing, press operating, chemical processing, painting, and foundry casting. The module has four/eight analog inputs and is capable of updates to all eight channels every 4 ms. The 12-bit resolution for all ranges, and the absolute accuracy is dependent on the input pack type. This allows for fast and precise control of the application.
To set up the analog input module properly, an eight-position DIP-switch must be set together with SW5 of a five-position DIP switch located on the left side of the module. These switches determines the input range, output format, number of samples to be averaged, and the types of inputs.
Input Pack Insertion
Procedure Use the following procedure to insert the required input pack. Step Action 1 Remove channel pull-off tabs that correspond with desired input pack placement. 2 Insert input packs into right side of module corresponding to desired channels. Align input pack so that Phillips-head screw is on top and 14 leads are at bottom. 3 Tighten Phillips-head screw. Note: When using either a AS–5B32001A or AS–5B32002A current input pack, a fusible resistor must also be inserted into the board. The proper fusible resistor (Modicon part # AS–0418–000) comes with the current input pack. Note: Always insert the fusible resistor before inserting the input pack. If the fusible resistor is rectangular, ensure that the side with two leads is next to the input pack. Note: Never place the fusible resistor between adjacent channels. This can be detected when the fusible resistor hides the CH on the CHANNEL label on the board. 4 Locate write-on label plate (Modicon part # AS–157A–000) shipped with module. Ensure that input pack catalog numbers and input register numbers for each input pack installed are clearly identified on label.
公司主營產品圖展示
產品優勢
1：國外專業的供貨渠道，具有價格優勢
2：產品質量保證，讓您售后無憂
3：全國快遞包郵
4：一對一服務
公司主營范圍簡介
PLC可編程控制器模塊，DCS卡件，ESD系統卡件，振動監測系統卡件，汽輪機控制系統模塊，燃?xì)獍l(fā)電機備件等，優勢品牌：Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各種進口工業零部件、歐美進口模塊。
產品廣泛應用于冶金、石油天然氣、玻璃制造業、鋁業、石油化工、煤礦、造紙印刷、紡織印染、機械、電子制造、汽車制造、塑膠機械、電力、水利、水處理/環保、鍋爐供暖、能源、輸配電等等
