產品內容介紹

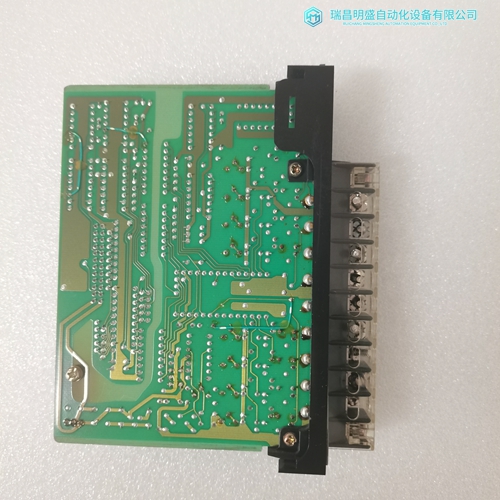

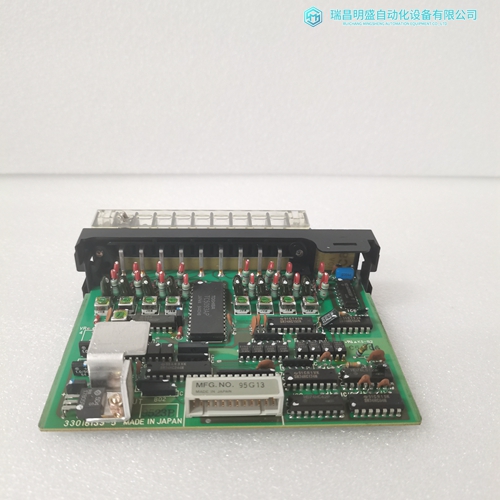

RELIANCE 45C992電源模塊
使用RSWho連接模塊
注意：要使用此功能，您的電腦上必須安裝RSLinx。您還需要在中設置ENBT模塊
機架。有關設置ENBT模塊的信息，請參閱使用CIPconnect連接到模塊（第83頁）。
1在ProSoft Configuration Builder的樹狀圖中，右鍵單擊MVI56E-SIE模塊。
2從快捷菜單中，選擇“從PC下載到設備”。
3在下載對話框中，從選擇連接類型中選擇1756 ENBT下拉框。梯形圖邏輯管理MVI56E-SIE模塊之間的通信需要梯形邏輯和處理器。梯形圖邏輯處理以下任務：
? 模塊底板數據傳輸
? 特殊塊處理
? 狀態數據接收
此外，可能需要加電處理程序來初始化模塊的數據庫和可以清除某些處理器故障。
示例Import Rung with Add-On Instruction被廣泛評論，以提供關于每個用戶定義數據類型和控制器的用途和功能的信息標簽對于大多數應用程序，帶附加指令的導入Rung將在沒有修改
3.1控制器標簽
與MVI56E-SIE相關的數據存儲在稱為控制器的變量中的梯形圖邏輯中標簽。
單個控制器標記可以分組為控制器標記集合，稱為控制器標記結構?？刂破鳂擞浗Y(jié)構可以包含以下任意組合：
? 單個控制器標簽
? 控制器標記陣列
? 下層控制器標簽結構
模塊的控制器標簽預先編程到附加指令中導入梯級邏輯。
控制器標簽可以在子文件夾中找到，該子文件夾位于主RSLogix 5000窗口的控制器管理器窗格中的控制器文件夾。
此控制器標記結構被安排為樹形結構。
單個控制器標簽包括在樹結構的最低級別找到。
每個單獨的控制器標簽定義為保存特定類型的數據，例如整數或浮點數據。
控制器標簽結構是用用戶定義的數據類型聲明的，這些數據類型是數據類型的集合。
主SIE控制器標簽結構分為四個較低級別的標簽結構。
Using RSWho to Connect to the Module
Note: RSLinx must be installed on your PC to use this feature. You also need an ENBT module set up in the rack. For information on setting up the ENBT module, see Using CIPconnect to Connect to the Module (page 83). 1 In the tree view in ProSoft Configuration Builder, right-click the MVI56E-SIE module. 2 From the shortcut menu, choose DOWNLOAD FROM PC TO DEVICE. 3 In the Download dialog box, choose 1756 ENBT from the Select Connection Type dropdown box.
Ladder Logic
Ladder logic is required for managing communication between the MVI56E-SIE module and the processor. The ladder logic handles tasks such as: ? Module backplane data transfer ? Special block handling ? Status data receipt Additionally, a power-up handler may be needed to initialize the module’s database and may clear some processor fault conditions. The sample Import Rung with Add-On Instruction is extensively commented to provide information on the purpose and function of each user-defined data type and controller tag.
For most applications
the Import Rung with Add-On Instruction will work without modification. 3.1 Controller Tags Data related to the MVI56E-SIE is stored in the ladder logic in variables called controller tags. Individual controller tags can be grouped into collections of controller tags called controller tag structures. A controller tag structure can contain any combination of: ? Individual controller tags ? Controller tag arrays ? Lower-level controller tag structures The controller tags for the module are pre-programmed into the Add-On Instruction Import Rung ladder logic. Controller Tags can be found in the subfolder, located in the Controller folder in the Controller Organizer pane of the main RSLogix 5000 window. This controller tag structure is arranged as a tree structure. Individual controller tags are found at the lowest level of the tree structure. Each individual controller tag is defined to hold data of a specific type, such as integer or floating-point data. Controller tag structures are declared with user-defined data types, which are collections of data types. The main SIE controller tag structure is divided into four lower-level tag structures.
公司主營產品圖展示
產品優勢
1：國外專業的供貨渠道，具有價格優勢
2：產品質量保證，讓您售后無憂
3：全國快遞包郵
4：一對一服務
公司主營范圍簡介
PLC可編程控制器模塊，DCS卡件，ESD系統卡件，振動監測系統卡件，汽輪機控制系統模塊，燃氣發電機備件等，優勢品牌：Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各種進口工業零部件、歐美進口模塊。
產品廣泛應用于冶金、石油天然氣、玻璃制造業、鋁業、石油化工、煤礦、造紙印刷、紡織印染、機械、電子制造、汽車制造、塑膠機械、電力、水利、水處理/環保、鍋爐供暖、能源、輸配電等等
