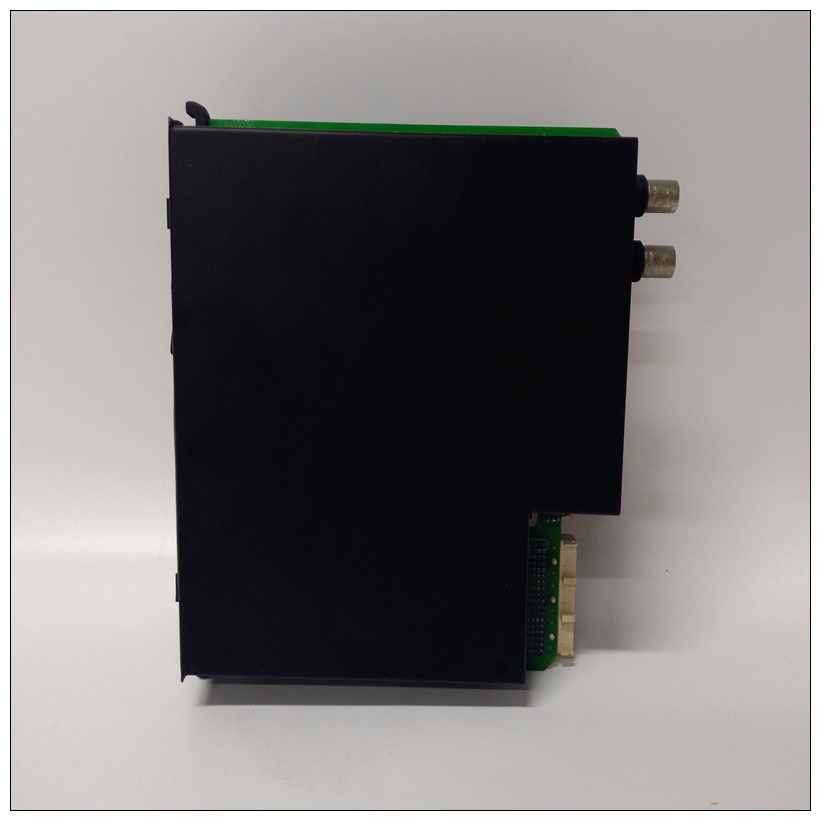

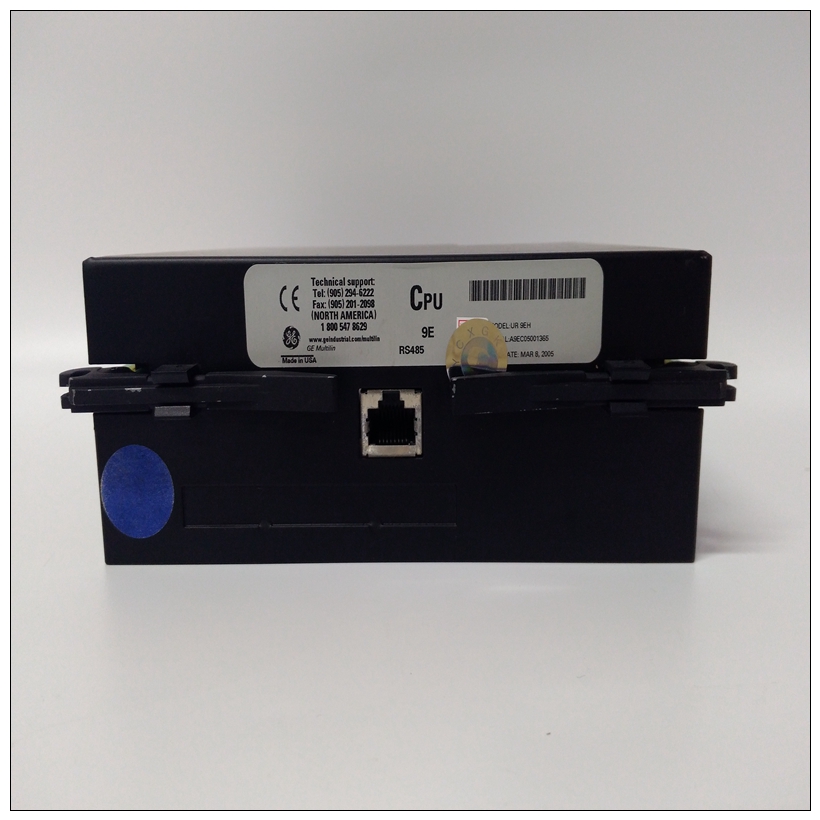

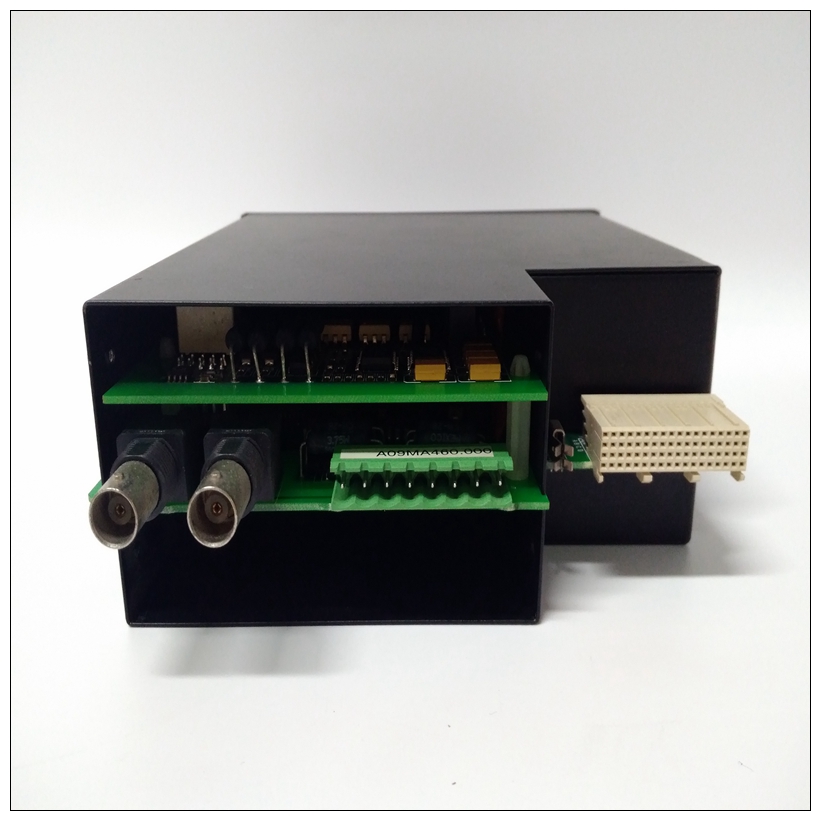

UR9EH綜合保護裝置模塊,GE電氣UR9EH實驗數據DeviceNet主模塊允許CPU發送和接收數據通過DeviceNet網絡。它可以在服務器上作為多達63個奴隸的主服務器DeviceNet網絡。它也可以配置為同時工作作為總線上另一個主節點的從屬節點。DeviceNet是一種通信網絡，在控制系統（例如：PLC、PC、VMEbus計算機和機器人控制器）和分布式工業設備，如開關、傳感器、，閥組、電機起動器、條形碼讀取器、驅動器、顯示器和操作員界面。
UR9EH綜合保護裝置模塊該模塊可以安裝在任何RX3i或90-30系列背板。它與PAC系統兼容? RX3iIC695CPU310 CPU，3.5版或更高版本。它還與任何90-30系列CPU，IC693CPU321或IC693CPU340除外，帶釋放8.0或更高版本的CPU固件。建議使用10版或更高版本。機器Edition Logic Developer PLC 3.0 SP1 Special 2或更高版本是必修的。此模塊與VersaPro不兼容?, 控制，或Logicmaster? 編程軟件。A系列90-30手持式編程器（IC693PRG300）不能用于配置。特征? 所有標準DeviceNet數據速率下的總線通信（125k，250k，500k波特）? 最多255字節的輸入數據傳輸和255字節的輸出數據傳輸每個從機。? 高達3972字節的輸入數據傳輸和3972字節的輸出數據每個主機的傳輸。
The DeviceNet Master Module allows the CPU to send and receive data
over a DeviceNet network. It can act as master for up to 63 slaves on the
DeviceNet network. It can also be configured to simultaneously function
as a slave to another master on the bus.
DeviceNet is a communications network that transmits data between
control systems (for example: PLCs, PCs, VMEbus computers, and robot
controllers) and distributed industrial devices such as switches, sensors,
valve manifolds, motor starters, bar code readers, drives, displays, and
operator interfaces.
This module can be installed in any available I/O slot in any RX3i or
Series 90-30 backplane. It is compatible with PACSystems? RX3i
IC695CPU310 CPU, release 3.5 or later. It is also compatible with any
Series 90-30 CPU except IC693CPU321 or IC693CPU340 with release
8.0 or later CPU firmware. Release 10 or later is recommended. Machine
Edition Logic Developer PLC version 3.0 SP1 Special 2 or later is
required. This module is not compatible with VersaPro?, Control, or
Logicmaster? programming software. A Series 90-30 Hand-Held
Programmer (IC693PRG300) cannot be used for configuration.
Features
?
Bus communications at all standard DeviceNet data rates (125k,
250k, 500k baud)
?
Up to 255 bytes input data transfer and 255 bytes output data transfer
per slave.
?
Up to 3972 bytes of input data transfer and 3972 bytes of output data
transfer per master.
