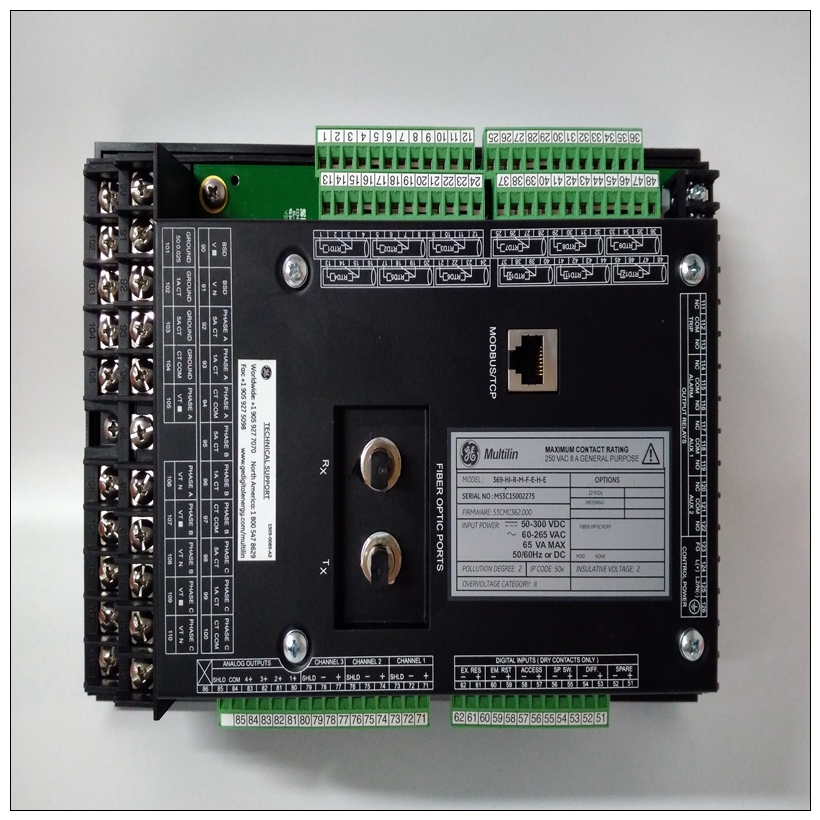

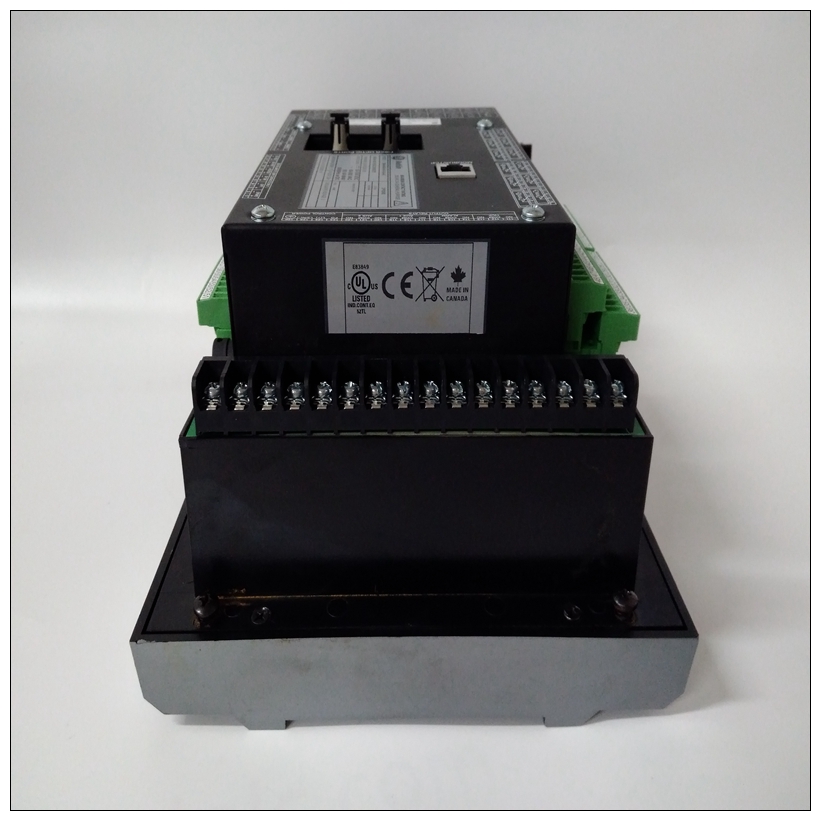

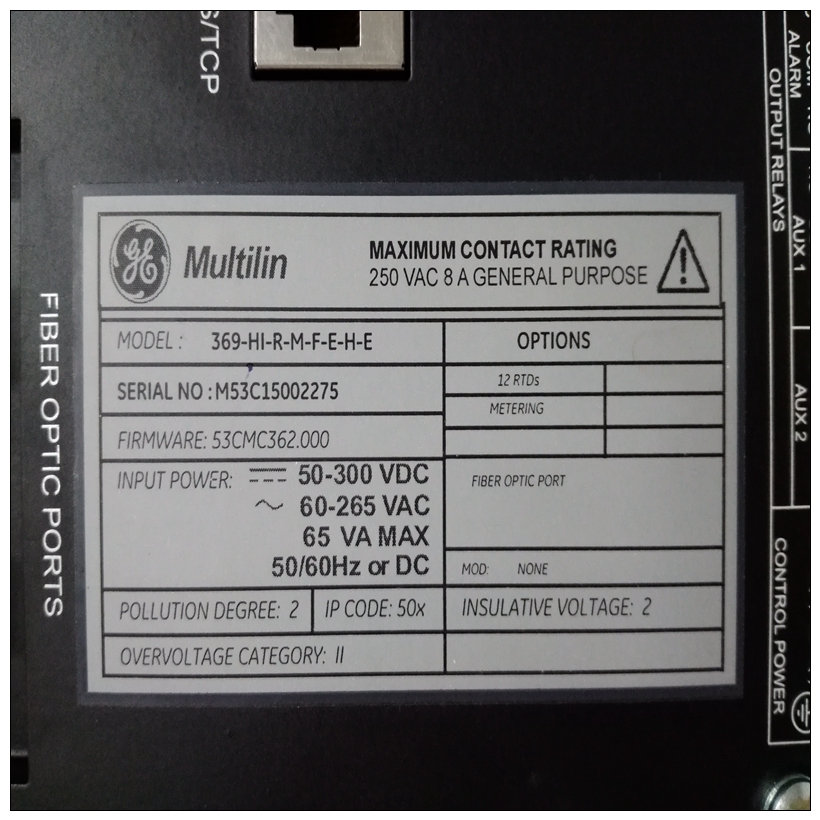

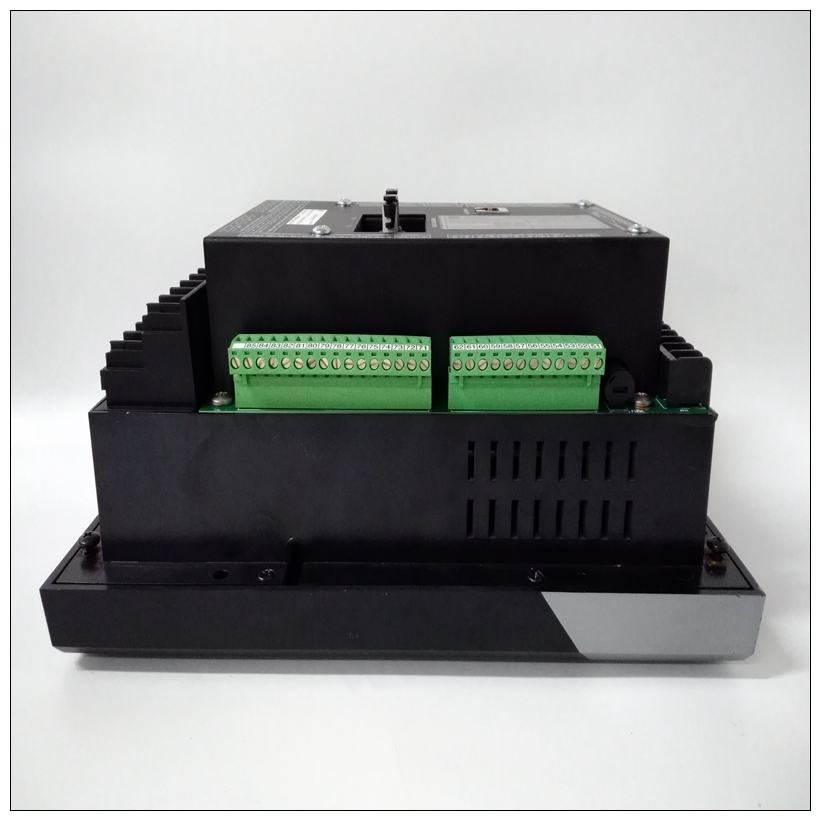

369-HI-R-M-F-E-H-E繼電器模塊,GE通用電氣以太網接口可以配置為使用SNTP來同步制作EGD交換。以太網接口實現了1類和2類設備的功能。應用程序中可以使用COMMREQ驅動的EGD命令進行讀寫數據輸入CPU或其他EGD 2類設備。Ethernet OK LED指示模塊是否能夠執行正常操作。正常操作時，該LED亮起所有其他操作都會閃爍。如果是硬件或運行時出現故障時，EOK LED閃爍兩位數錯誤。
369-HI-R-M-F-E-H-E繼電器模塊? LAN OK LED指示進入以太網。這個當通過網絡發送或接收數據時，LAN LED閃爍指向或來自以太網接口的網絡。它保持打開狀態當以太網接口未主動訪問網絡時但以太網物理接口可用，并且其中一個或兩個都可用以太網端口可運行。除非另有說明，否則它將關閉軟件加載正在發生。? 正常操作期間，Log Empty LED亮起。如果一個事件已被記錄。? 兩個以太網網絡活動指示燈（鏈路）指示網絡鏈接狀態和活動。? 兩個以太網網絡速度指示燈（100Mbps）指示網絡數據速度（10（關）或100 Mb/s（開））。以太網重啟按鈕此按鈕用于手動重新啟動以太網固件無需對整個系統進行電源循環。它是凹進去的，以防止意外操作。連接器該模塊有兩個10BaseT/100BaseTX以太網端口連接器。網絡只有一個接口（只有一個以太網MAC地址，只有一個IP地址）。它還有一個Station Manager（RS-232）串行端口。特征單插槽CPU在內存中提供1 MB電池支持的內存相同的插槽（最多512 KB可供梯形圖應用程序）支持浮點計算高達12K的離散輸入和輸出（任何混合-僅單工模式）；2048表決離散輸入，2048表決離散輸出高達8K模擬輸入（僅限單工模式）和8K模擬輸出（僅限于單工模式）；1024票模擬輸入
The Ethernet Interface can be configured to use SNTP to synchronize the timestamps of
produced EGD exchanges.
The Ethernet Interface implements the capabilities of a Class 1 and Class 2 device.
COMMREQ-driven EGD Commands can be used in the application program to read and write
data into the CPU or other EGD Class 2 devices.The Ethernet OK LED indicates whether the module is able to
perform normal operation. This LED is On for normal operation
and flashing for all other operations. If a hardware or runtime
failure occurs, the EOK LED blinks a two-digit error.
? The LAN OK LED indicates access to the Ethernet network. The
LAN LED blinks when data is being sent or received over the
network directed to or from the Ethernet interface. It remains On
when the Ethernet interface is not actively accessing the network
but the Ethernet physical interface is available and one or both of
the Ethernet ports is operational. It is Off otherwise unless
software load is occurring.
? The Log Empty LED is On during normal operation. It is Off if an
event has been logged.
? Two Ethernet network activity LEDS (LINK) indicate the network
link status and activity.
? Two Ethernet network speed LEDS (100Mbps) indicates the
network data speed (10 (off) or 100 Mb/sec (on)).
Ethernet Restart Pushbutton
This pushbutton is used to manually restart the Ethernet firmware
without power cycling the entire system. It is recessed to prevent
accidental operation.
Connectors
The module has two 10BaseT/100BaseTX Ethernet Network Port
Connectors. There is only one interface to the network (only one
Ethernet MAC address and only one IP address).
It also has a Station Manager (RS-232) Serial Port.Features
Single slot CPU
Provides 1 Mbyte of battery-backed memory in the
same slot (up to 512 Kbytes available for use by
ladder diagram application program)
Supports floating point calculations
Up to 12K discrete inputs and outputs (any mix -
simplex mode only); 2048 voted discrete inputs, 2048
voted discrete outputs
