ABB P8800 直流數字輸入模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
P8800直流數字輸入模塊是一種工業自動化設備，通常用于工業控制系統中的數字信號輸入。它能夠?qū)⑼獠康拈_(kāi)關量信號轉換為控制系統可處理的數字信號，從而實現對現場設備的監控與控制。以下是關于P8800直流數字輸入模塊的典型功能和特點的詳細描述：
主要功能：
信號輸入：
- 支持多通道直流數字信號輸入。
- 輸入信號類型通常為干接點或濕接點，兼容多種電壓等級。
數據處理：
- 將采集到的數字信號進行濾波和去抖動處理，確保信號的穩定性和準確性。
- 提供信號狀態監測，如高電平、低電平或斷線檢測。
通信接口：
- 通常支持標準工業通信協議（如Modbus、Profibus或Profinet）與上位機或控制系統交互。
- 可通過總線或網絡連接到可編程邏輯控制器（PLC）或分布式控制系統（DCS）。
診斷功能：
- 具備自診斷能力，可以檢測模塊的工作狀態及輸入信號的有效性。
- 提供故障報警功能，便于維護。
技術參數（典型）：
- 輸入通道數： 通常為8通道、16通道或32通道。
- 輸入電壓范圍： DC 24V、48V或其他標準工業電壓。
- 隔離電壓： 通道與系統之間具備一定的電氣隔離能力（如1000V以上）。
- 功耗： 模塊功耗通常較低，適合長時間連續運行。
- 響應時間： 快速響應（通常在幾毫秒內），適合實時控制應用。
英文資料：
P8800 DC digital input module is an industrial automation equipment commonly used for digital signal input in industrial control systems. It can convert external switch signals into digital signals that can be processed by the control system, thereby achieving monitoring and control of on-site equipment. The following is a detailed description of the typical functions and features of the P8800 DC digital input module:
Main functions:
Signal input:
Supports multi-channel DC digital signal input.
The input signal type is usually dry contact or wet contact, compatible with multiple voltage levels.
Data processing:
Filter and debounce the collected digital signals to ensure their stability and accuracy.
Provide signal status monitoring, such as high level, low level, or disconnection detection.
Communication interface:
Usually supports standard industrial communication protocols (such as Modbus, Profibus, or Profinet) for interaction with upper computers or control systems.
It can be connected to a programmable logic controller (PLC) or distributed control system (DCS) through a bus or network.
Diagnostic function:
Capable of self diagnosis, able to detect the working status of modules and the effectiveness of input signals.
Provide fault alarm function for easy maintenance.
Technical parameters (typical):
Number of input channels: usually 8, 16, or 32 channels.
Input voltage range: DC 24V, 48V or other standard industrial voltages.
Isolation voltage: There is a certain electrical isolation capability between the channel and the system (such as above 1000V).
Power consumption: Modules typically have low power consumption and are suitable for long-term continuous operation.
Response time: Fast response (usually within a few milliseconds), suitable for real-time control applications.

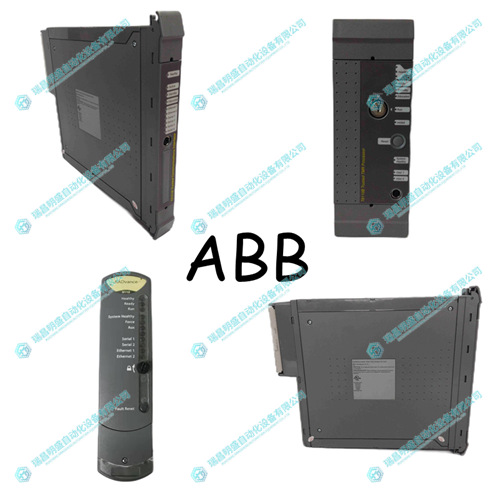

2.產 品 展 示
3.其他產品
4.其他英文產品
ABB XVC768117 Field Input/Output Module
