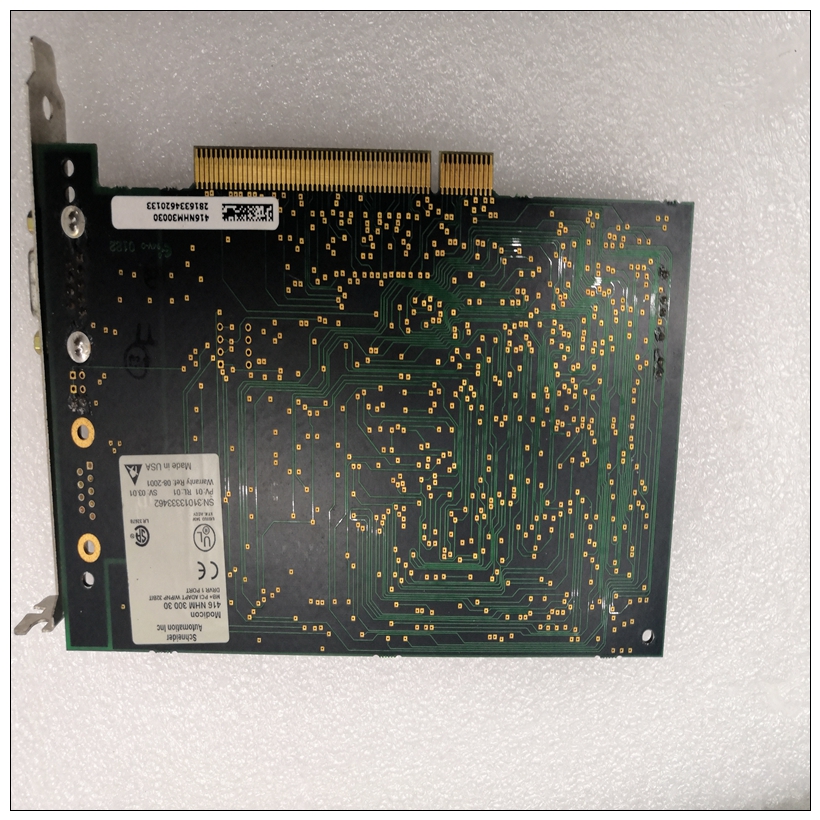

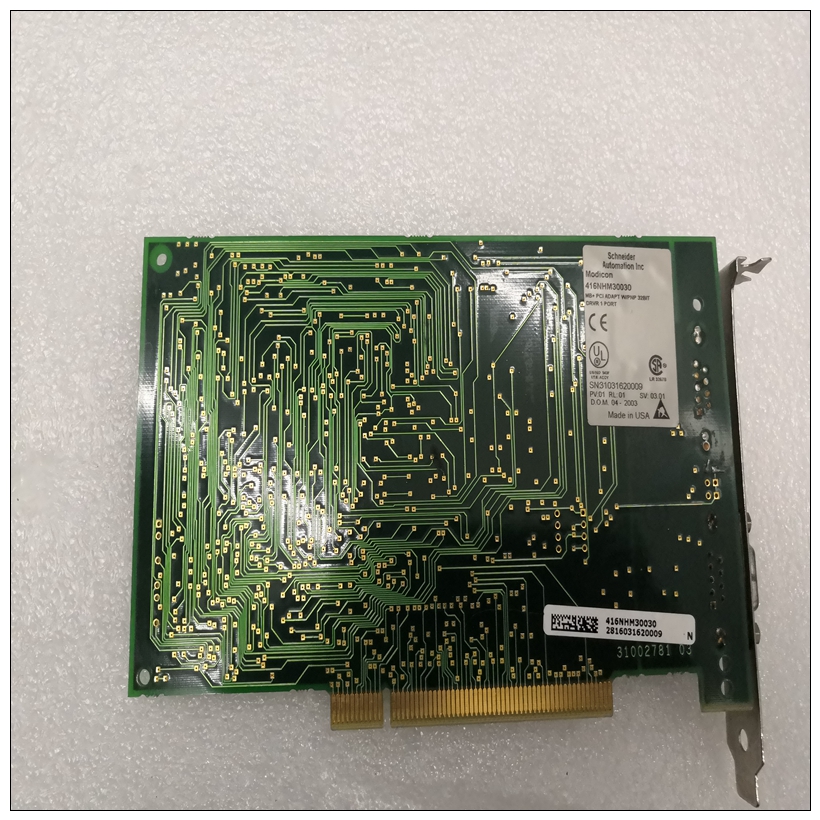

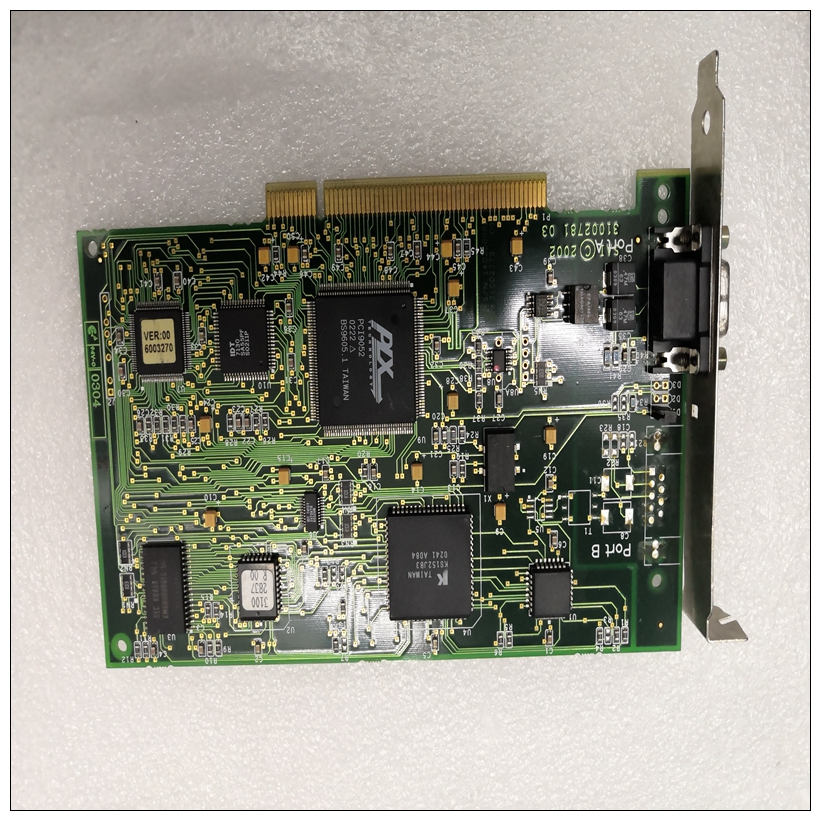

416NHM30030可編程模塊，SCHNEIDER產品重量
安裝安裝底座要將安裝基座安裝在DIN導軌上，請按以下步驟進行。1.將安裝底座垂直放置在已安裝裝置上方（適配器、電源或現有模塊）。2、向下滑動安裝底座，允許聯鎖側與相鄰模塊或適配器接合的零件。3、用力按壓，將安裝座固定在DIN導軌上。這個安裝底座將卡入到位。
416NHM30030可編程模塊要從DIN導軌上拆下安裝底座，請拆下并使用小刃螺絲刀旋轉底座將螺釘鎖定到垂直位置。這將解除鎖定機械裝置然后筆直向上提起以將其拆下。安裝輸入/輸出模塊模塊可以在基座安裝之前或之后安裝。制作在安裝前，確保安裝底座正確鎖定將模塊插入安裝基座。此外，確保安裝底座鎖緊螺釘相對于底座水平放置。順時針方向安裝底座，直到達到安裝的模塊類型與基礎有關鑰匙開關位置，請參閱第1-17頁。確保DIN導軌鎖緊螺釘處于水平位置位置（如果鎖定機構已解鎖。）3.將模塊直接向下插入安裝底座，然后按下以固定。模塊將鎖定到位。安裝可拆卸接線板（RTB）可拆卸接線板隨接線座一起提供裝配要拆卸，拉起RTB手柄。這允許必要時拆卸和更換安裝底座，無需拆卸任何導線。要重新插入可拆卸接線板，按以下步驟進行。
Installing the Mounting Base
To install the mounting base on the DIN rail, proceed as follows.
1. Position the mounting base vertically above the installed units
(adapter, power supply or existing module).
2. Slide the mounting base down allowing the interlocking side
pieces to engage the adjacent module or adapter.
3. Press firmly to seat the mounting base on the DIN rail. The
mounting base will snap into place.
4. To remove the mounting base from the DIN rail, remove the
module, and use a small bladed screwdriver to rotate the base
locking screw to a vertical position. This releases the locking
mechanism. Then lift straight up to remove.Installing the I/O Module
The module can be installed before or after base installation. Make
sure that the mounting base is correctly keyed before installing the
module into the mounting base. In addition, make sure the mounting
base locking screw is positioned horizontal referenced to the base.
1. Using a bladed screwdriver, rotate the keyswitch (2) on the
mounting base clockwise until the number required for the
type of module being installed aligns with the notch in the
base. Refer to page 1-17 for the keyswitch position.Make certain the DIN rail locking screw is in the horizontal
position. (You cannot insert the module if the locking
mechanism is unlocked.)
3. Insert the module straight down into the mounting base and
press to secure. The module will lock into place.Installing the Removable Terminal Block (RTB)
A removable terminal block is supplied with your wiring base
assembly. To remove, pull up on the RTB handle. This allows the
mounting base to be removed and replaced as necessary without
removing any of the wiring. To reinsert the removable terminal block,
proceed as follows.
