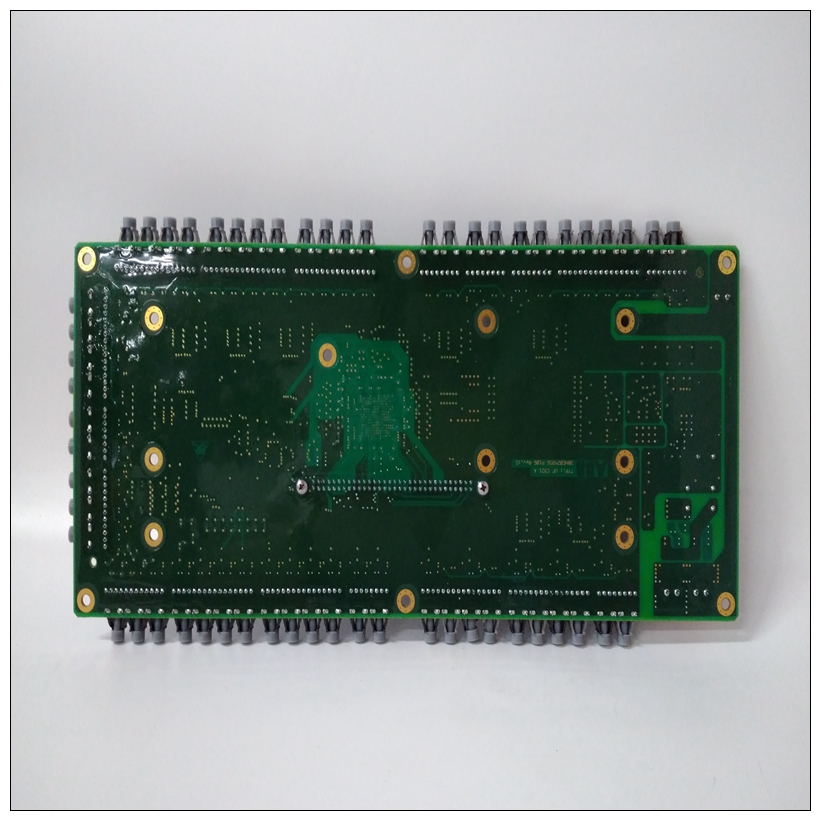

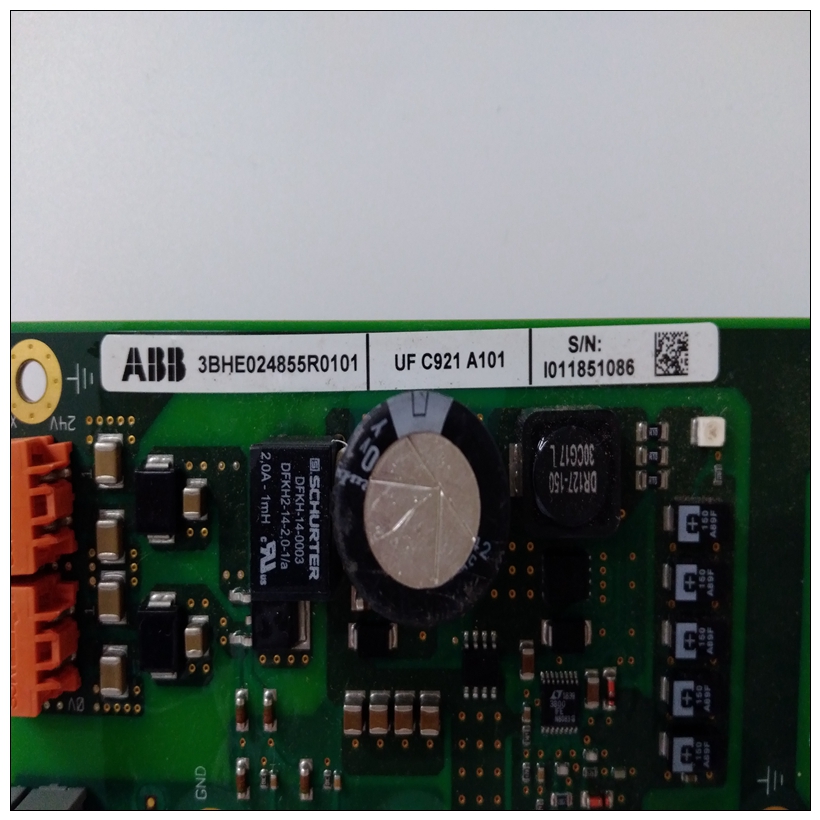

UFC921A101 3BHE024855R0101電源模塊，ABB怎么使用
VMEbus主界面由VMEchip提供。根據VMEbus地址，MVME147主機接口可以是A32/D32、A24/D16或A16/D16。當MC68030需要VMEbus進行讀、寫、讀-修改-寫、，或中斷確認周期，它請求VMEchip獲取公共汽車主控權。VMEchip請求總線，并在收到mastership，它根據
MC68030。當從機響應時，VMEchip會傳遞此消息信息發送至MC68030。
UFC921A101 3BHE024855R0101電源模塊VMEbus請求者VMEbus請求者用于獲取和放棄主控權VMEbus的。其操作受可編程軟件的影響VMEchip中的位。請求者在編程的當電路板不是當前VMEbus主電路板并且是以下之一時的電平發生以下情況：? MC68030執行綁定的程序空間周期對于VMEbus。? MC68030執行一個數據空間周期，該周期為VMEbus。? MC68030執行一個IACK循環，該循環為VMEbus。
? MC68030設置VMEchip中的DWB位。? MC68030執行“多地址RMC”循環為本地DRAM綁定，WAITRMC位設置在PCC。請求VMEbus主控權也受中的RONR位影響VMEchip LCSR。只要其中一個滿足以下條件：? MC68030正在執行VMEbus循環。? RWD位在VMEchip中被清除，沒有其他VMEbus主機正在激活總線請求。? RNEVER位在VMEchip中設置。? DWB位在VMEchip中設置。? MC68030正在對VMEbus。
? MC68030正在完成從中開始的RMC序列
本地DRAM，同時在PCC中設置WAITRMC位。
The VMEbus master interface is provided by the VMEchip.
Depending on the VMEbus address, the MVME147 master
interface may be A32/D32, A24/D16, or A16/D16. When the
MC68030 needs the VMEbus for a read, write, read-modify- write,
or interrupt acknowledge cycle, it requests the VMEchip to obtain
bus mastership. The VMEchip requests the bus and after it receives
mastership, it activates the VMEbus signals as requested by the
MC68030. When the slave responds, the VMEchip passes this
information to the MC68030.VMEbus Requester
The VMEbus requester is used to obtain and relinquish mastership
of the VMEbus. Its operation is affected by software programmable
bits in the VMEchip.
The requester requests VMEbus mastership at the programmed
level when the board is not the current VMEbus master and one of
the following happens:
? The MC68030 executes a program space cycle that is bound
for the VMEbus.
? The MC68030 executes a data space cycle that is bound for the
VMEbus.
? The MC68030 executes an IACK cycle that is bound for the
VMEbus.
? The MC68030 sets the DWB bit in the VMEchip.
? The MC68030 executes a “multiple address RMC” cycle that
is bound for the local DRAM and the WAITRMC bit is set in
the PCC.
Requesting VMEbus mastership is also affected by the RONR bit in
the VMEchip LCSR. The requester maintains VMEbus mastership as long as one of the
following conditions is met:
? The MC68030 is executing a VMEbus cycle.
? The RWD bit is cleared in the VMEchip and no other VMEbus
master is activating a bus request.
? The RNEVER bit is set in the VMEchip.
? The DWB bit is set in the VMEchip.
? The MC68030 is performing an RMC sequence to the
VMEbus.
? The MC68030 is finishing an RMC sequence that started in
local DRAM while the WAITRMC bit was set in the PCC.
