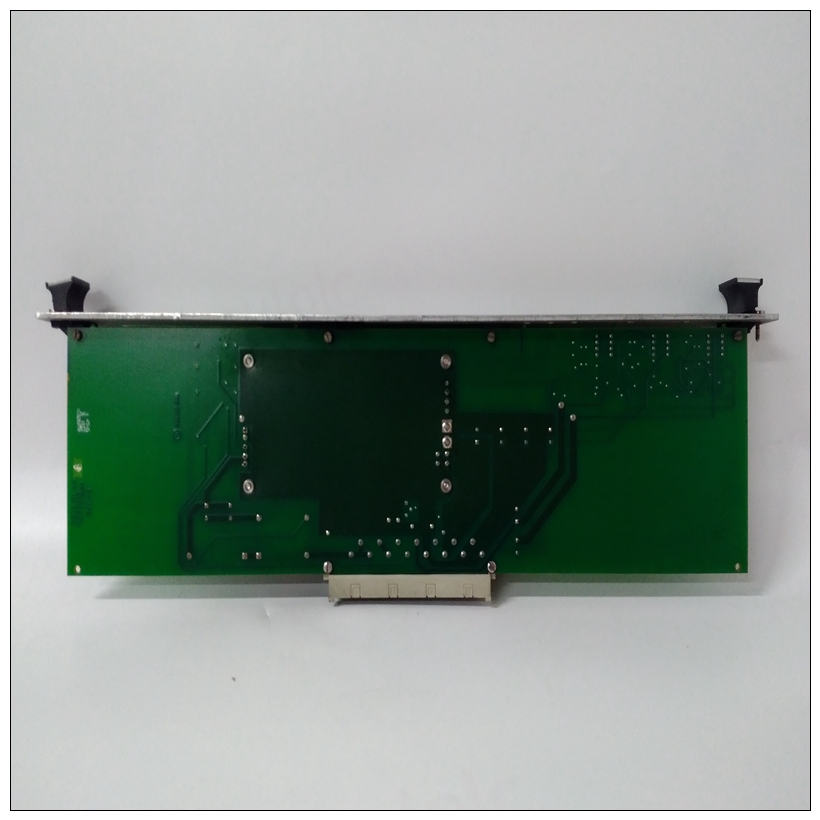

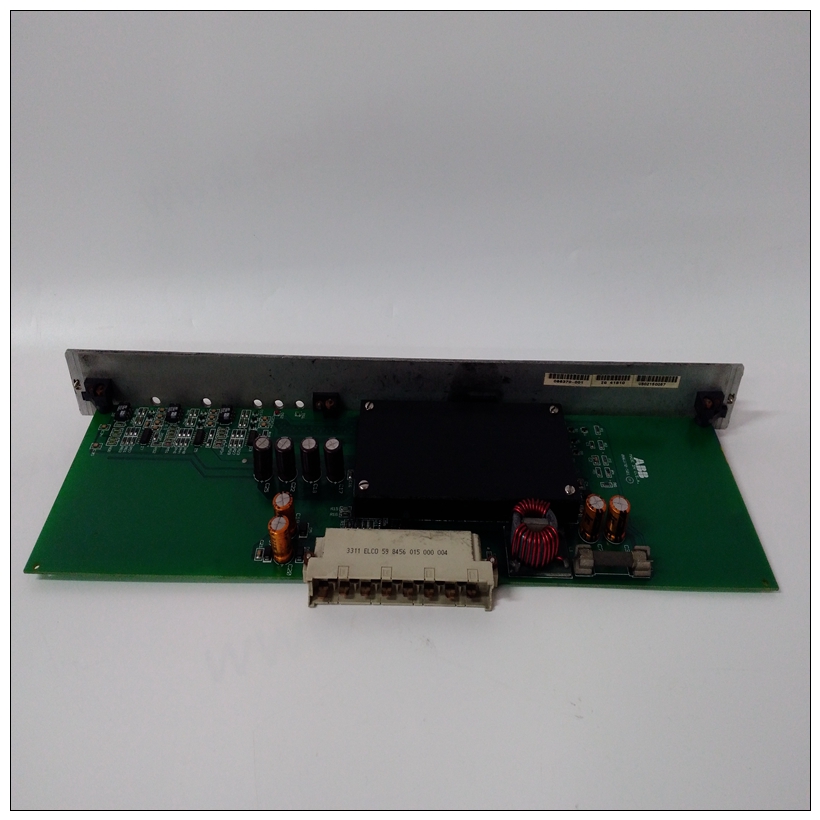

ECPSR086370-001工控卡件，ABB使用配置手冊
IndustryPack（IP）接口MVME162上的IPIC ASIC支持四個IndustryPack（IP）接口；這些可以從前面板訪問。請參閱IPIC編程MVME162嵌入式控制器程序員參考指南中的模型IP接口的詳細信息。請參閱MVME162嵌入式控制器支持IP連接器引腳分配信息手冊。以太網接口Intel 82596CA LAN控制器用于實現以太網收發器接口。82596CA使用DMA訪問本地RAM執行其正常功能的操作。
ECPSR086370-001工控卡件因?yàn)?2596CA的內部緩沖區和VMEbus有一個未定義的延遲周期，即緩沖區如果DMA編程為訪問VMEbus，則可能發生溢出。因此，82596CA不應編程為訪問VMEbus。每個MVME162分配一個以太網站地址。地址是$08003E2xxxxx，其中xxxxx是分配給電路板（即每個MVME162對于xxxxx具有不同的值）。每個MVME162都有一個以太網站地址，該地址顯示在附加的標簽上至背板連接器P2。此外，包括以太網的六個字節站點地址存儲在BBRAM配置區域中。也就是說，08003E2xxxxx存儲在BBRAM中。地址為$FFFC1F2C，上層可以讀取四個字節（08003E2x）。在地址為$FFFC1F30時，下兩個可以讀取字節（xxxx）。請參閱BBRAM/TOD時鐘內存映射第3章中的說明。MVME162調試器能夠檢索或設置以太網站地址。如果BBRAM中的數據丟失，請使用背板標簽上的數字將其恢復到連接器P2。以太網收發器接口位于MVME162主模塊上。MVME712系列上有一個行業標準的DB15連接器過渡模塊。MCchip為82596CA提供支持功能。請參閱82596CA用戶指南和MVME162嵌入式控制器程序員指南有關詳細編程信息的參考指南。請參閱MVME712-12、MVME712-13、MVME712A、MVME712AM和MVME712B過渡模塊和LCP2適配器板用戶手冊或MVME712M引腳分配的過渡模塊和P2適配器板用戶手冊轉換模塊以太網連接器。
IndustryPack (IP) Interfaces
The IPIC ASIC on the MVME162 supports four IndustryPack (IP) interfaces;
these are accessible from the front panel. Refer to the IPIC Programming
Model in the MVME162 Embedded Controller Programmer’s Reference Guide for
details of the IP interface. Refer to the MVME162 Embedded Controller Support
Information manual for the pin assignments of the IP connectors.
Ethernet Interface
The Intel 82596CA LAN controller is used to implement the Ethernet
transceiver interface. The 82596CA accesses local RAM using DMA
operations to perform its normal functions. Because the 82596CA has small
internal buffers and the VMEbus has an undefined latency period, buffer
overrun may occur if the DMA is programmed to access the VMEbus.
Therefore, the 82596CA should not be programmed to access the VMEbus.
Every MVME162 is assigned an Ethernet station address. The address is
$08003E2xxxxx, where xxxxx is the unique 5-nibble number assigned to the
board (i.e., every MVME162 has a different value for xxxxx).
Each MVME162 has an Ethernet station address displayed on a label attached
to backplane connector P2. In addition, the six bytes including the Ethernet
station address are stored in the BBRAM configuration area. That is,
08003E2xxxxx is stored in the BBRAM. At an address of $FFFC1F2C, the upper
four bytes (08003E2x) can be read. At an address of $FFFC1F30, the lower two
bytes (xxxx) can be read. Refer to the BBRAM/TOD Clock memory map
description in Chapter 3. The MVME162 debugger has the capability to
retrieve or set the Ethernet station address.If the data in the BBRAM is lost, use the number on the label on backplane
connector P2 to restore it.
The Ethernet transceiver interface is located on the MVME162 main module.
An industry-standard DB15 connector is located on the MVME712 series
transition module.
The MCchip provides support functions for the 82596CA. Refer to the
82596CA user’s guide and to the MVME162 Embedded Controller Programmer’s
Reference Guide for detailed programming information. Refer to the
MVME712-12, MVME712-13, MVME712A, MVME712AM, and MVME712B
Transition Modules and LCP2 Adapter Board User’s Manual or the MVME712M
Transition Module and P2 Adapter Board User’s Manual for the pin assignments
of the transition module Ethernet connectors.
