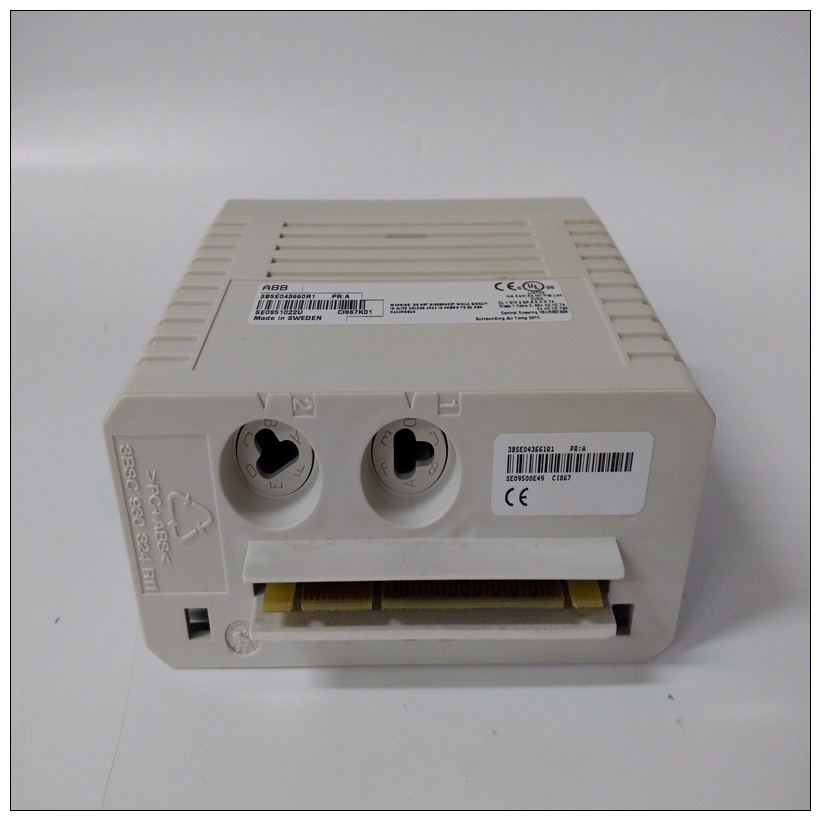

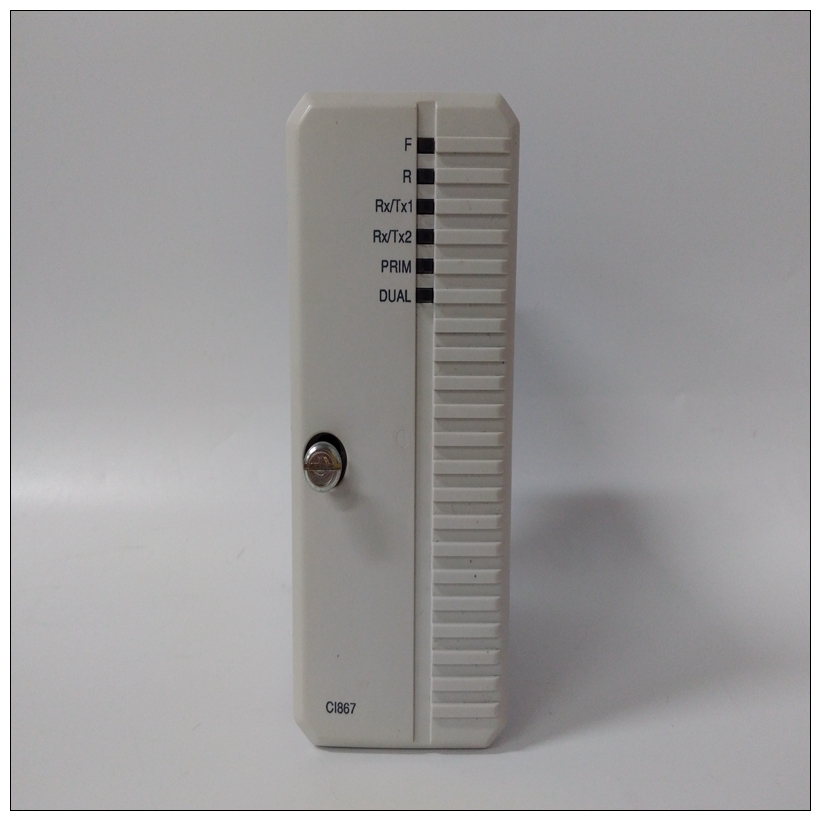

CI687K01 3BSE043660R1處理控制模塊,ABB說明書
MC2chip和可選控制器中都提供了看門狗定時器VMEchip2。計時器獨立但并行運行。當如果啟用了看門狗定時器，則必須在編程時間，否則將超時?？撮T(mén)狗計時器可能是編程生成系統復位信號、本地復位信號或電路板如果超時，則發出故障信號。請參閱中的VMEchip2和MC2chipMVME172 VME嵌入式控制器程序員參考指南有關詳細的編程信息。
CI687K01 3BSE043660R1處理控制模塊看門狗定時器邏輯在VMEchip2和MC2chip中重復亞瑟士。因?yàn)閂MEchip2中的看門狗定時器功能是MC2chip（系統重置功能）中該功能的超集，定時器在VMEchip2中，除MVME172LX不包括VMEbus接口（“否VMEbus接口”選項）。軟件可編程硬件中斷8個軟件可編程硬件中斷由VMEchip2。這些中斷允許軟件創建硬件中斷。請參閱MVME172 VME嵌入式控制器中的VMEchip2詳細編程信息的程序員參考指南。本地總線超時MVME172LX在VMEchip2和本地總線的MC2chip。當定時器啟用且本地總線訪問超時，傳輸錯誤確認（TEA）信號發送到本地總線主機。超時值可由軟件選擇8μs，64微秒、256微秒或無限。本地總線計時器在VMEbus綁定循環。VMEbus綁定周期由VMEbus計時訪問計時器和VMEbus全局計時器。請參閱VMEchip2和MVME172 VME嵌入式控制器程序員的MC2chip有關詳細編程信息的參考指南。MC2chip還為MVME172LX提供本地總線超時邏輯沒有可選的VMEbus接口（即沒有VMEchip2）。訪問計時器邏輯在VMEchip2和MC2chip中重復亞瑟士。因?yàn)閂MEchip2中的本地總線計時器可以檢測到非車載訪問和MC2chip本地總線計時器不能，計時器在除MVME172LX版本外，所有情況下均使用VMEchip2
不包括VMEbus接口（“無VMEbus接口選項”）。
A watchdog timer is provided in both the MC2chip and the optional
VMEchip2. The timers operate independently but in parallel. When the
watchdog timers are enabled, they must be reset by software within the
programmed time or they will time out. The watchdog timers may be
programmed to generate a SYSRESET signal, local reset signal, or board
fail signal if they time out. Refer to the VMEchip2 and the MC2chip in the
MVME172 VME Embedded Controller Programmer’s Reference Guide
for detailed programming information.
The watchdog timer logic is duplicated in the VMEchip2 and MC2chip
ASICs. Because the watchdog timer function in the VMEchip2 is a
superset of that function in the MC2chip (system reset function), the timer
in the VMEchip2 is used in all cases except for the version of the
MVME172LX which does not include the VMEbus interface ("No
VMEbus Interface" option).
Software-Programmable Hardware Interrupts
Eight software-programmable hardware interrupts are provided by the
VMEchip2. These interrupts allow software to create a hardware interrupt.
Refer to the VMEchip2 in the MVME172 VME Embedded Controller
Programmer’s Reference Guide for detailed programming information.
Local Bus Timeout
The MVME172LX provides timeout functions in the VMEchip2 and the
MC2chip for the local bus. When the timer is enabled and a local bus
access times out, a Transfer Error Acknowledge (TEA) signal is sent to the
local bus master. The timeout value is selectable by software for 8 μsec, 64
μsec, 256 μsec, or infinite. The local bus timer does not operate during
VMEbus bound cycles. VMEbus bound cycles are timed by the VMEbus
access timer and the VMEbus global timer. Refer to the VMEchip2 and the
MC2chip in the MVME172 VME Embedded Controller Programmer’s
Reference Guide for detailed programming information.
The MC2chip also provides local bus timeout logic for MVME172LXs
without the optional VMEbus interface (i.e., without the VMEchip2).The access timer logic is duplicated in the VMEchip2 and MC2chip
ASICs. Because the local bus timer in the VMEchip2 can detect an
offboard access and the MC2chip local bus timer cannot, the timer in the
VMEchip2 is used in all cases except for the version of the MVME172LX
which does not include the VMEbus interface ("No VMEbus Interface
option").
