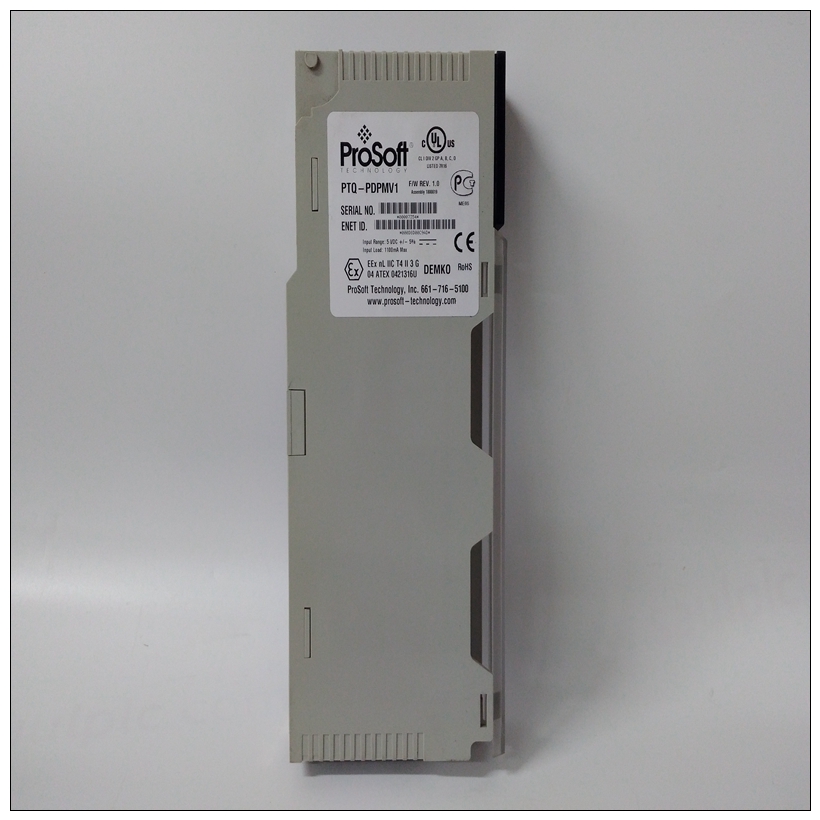

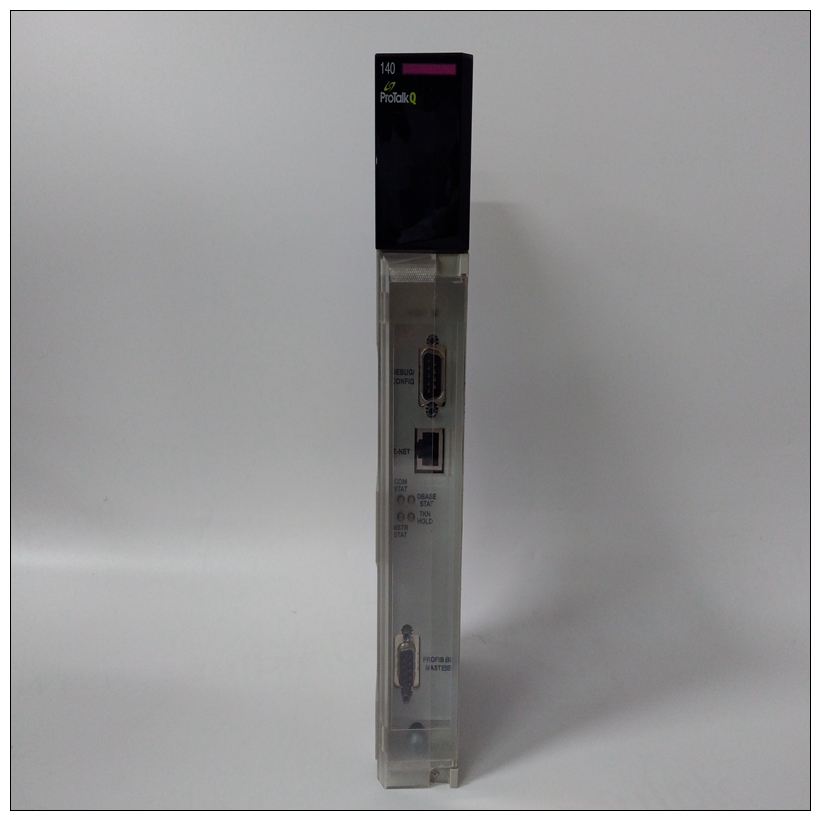

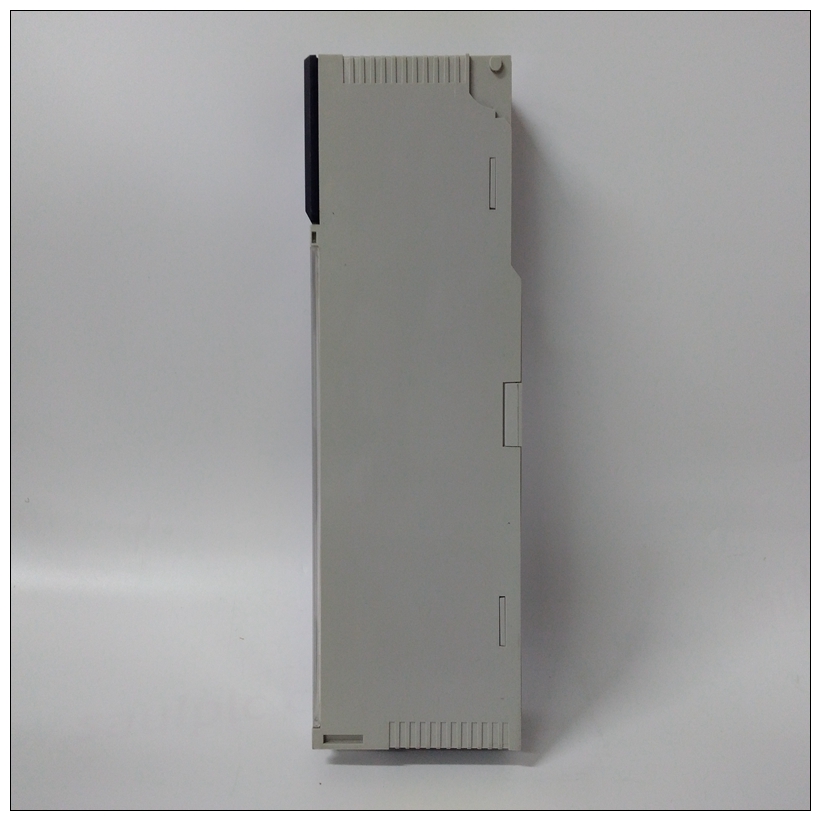

PTQ-PDPMV1接口模塊,PROSOFT使用方法教程
符合FCC的底盤上進行了測試，符合A類設備的要求。FCC合規性在以下條件下實現：所有外部輸入/輸出端口上的屏蔽電纜。2、通過金屬外殼連接至接地的電纜屏蔽連接至導電模塊前面板的連接器。3、導電底盤導軌接地。這提供將屏蔽連接到接地的路徑。4、前面板螺釘正確擰緊。對于最小射頻發射，必須滿足上述條件實施；如果不這樣做，可能會危及FCC包含模塊的設備的合規性。說明MVME177是基于MC68060微處理器。
PTQ-PDPMV1接口模塊MVME177具有：? 4/8/16/32/64/128/256 MB ECC保護的DRAM? 8KB靜態RAM和時間時鐘（帶電池備份）? 以太網收發器接口? 具有EIA-232-D接口的四個串行端口? 四刻度計時器? 看門狗定時器? 4 MB閃存? 兩個EPROM插? SCSI總線與DMA的接口? 一個并行端口? A 16/A24/A32/D8/D16/D32/D64 VMEbus主/從界面? 128KB的靜態RAM（帶有可選的備用電池），以及VMEbus系統控制器。MVME177上的輸入/輸出連接到VMEbus P2連接器。主板通過P2過渡連接連接至過渡板的板和電纜。MVME177支持（除非另有說明，否則本手冊中稱為MVME712x指定）。
MVME712x轉換板提供配置頭以及用于輸入/輸出設備的行業標準連接器。VMEbus接口由稱為VMEchip2。VMEchip2包括：? 雙刻度計時器? 看門狗計時器
? 用于主設備和從設備的可編程地圖解碼器接口
? VMEbus到/來自本地總線DMA控制器
? VMEbus到/來自本地總線的非DMA編程訪問界面
FCC Compliance
The MVME177 was tested in an FCC-compliant chassis, and meets
the requirements for Class A equipment. FCC compliance was
achieved under the following conditions:
1. Shielded cables on all external I/O ports.
2. Cable shields connected to earth ground via metal shell
connectors bonded to a conductive module front panel.
3. Conductive chassis rails connected to earth ground. This
provides the path for connecting shields to earth ground.
4. Front panel screws properly tightened.
For minimum RF emissions, it is essential that the conditions above
be implemented; failure to do so could compromise the FCC
compliance of the equipment containing the module.
General Description
The MVME177 is a double-high VMEmodule based on the
MC68060 microprocessor. The MVME177 has:
? 4/8/16/32/64/128/256 MB of ECC-protected DRAM
? 8KB of static RAM and time of day clock (with battery
backup)
? Ethernet transceiver interface
? Four serial ports with EIA-232-D interface
? Four tick timers
? Watchdog timer
? 4 MB of Flash memory
? Two EPROM sockets
? SCSI bus interface with DMA? One parallel port
? A 16/A24/A32/D8/D16/D32/D64 VMEbus master/slave
interface
? 128KB of static RAM (with optional battery backup), and
VMEbus system controller.
The I/O on the MVME177 is connected to the VMEbus P2
connector. The main board is connected through a P2 transition
board and cables to the transition boards. The MVME177 supports
the following transition boards:
