NI PXIe-6124高性能的數據采集模塊特點
1.產 品 資 料 介 紹：
中文資料：

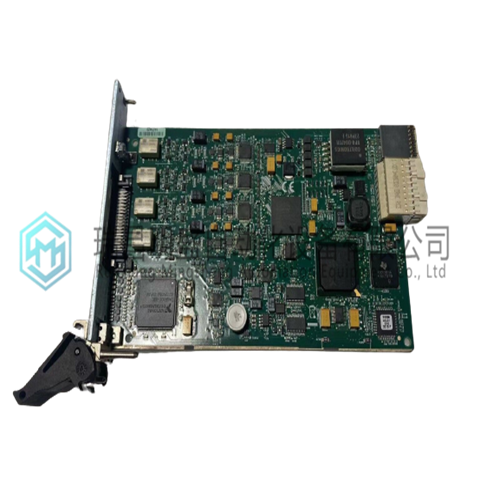

NI PXIe-6124是一款高性能的數據采集模塊，它是NI（National Instruments）的一部分，為測試和測量應用提供了廣泛的功能和靈活性。下面是關于NI PXIe-6124的產品特點介紹、使用方法以及參數詳情：
NI PXIe-6124產品特點：
- 高性能采集：NI PXIe-6124采用16位分辨率，具有高達1.25 MS/s（百萬樣本/秒）的采樣速率，能夠?qū)崟r(shí)獲取高精度的模擬信號數據。
- 多通道輸入：NI PXIe-6124模塊具有4個模擬輸入通道，每個通道都可以獨立地進行采樣和控制，以滿足不同應用的需求。
- 強大的信號調節能力：NI PXIe-6124提供可編程增益和可編程輸入范圍，可以適應不同信號強度和幅度范圍，以便精確采集和測量各種信號類型。
- 高精度時鐘和觸發功能：NI PXIe-6124模塊具有內部精確的時鐘源和多種觸發模式，可確保數據采集的同步性和準確性。
- 靈活的數據傳輸接口：NI PXIe-6124支持多種數據傳輸接口，包括PCI Express（PXI Express）和PXI總線，可與其他PXI設備和計算機系統進行高速數據傳輸和通信。
NI PXIe-6124使用方法：
- 硬件設置：將NI PXIe-6124插入PXIe機箱中的合適槽位，并確保設備已正確連接到電源和計算機系統。
- 驅動程序安裝：在計算機上安裝適用于NI PXIe-6124的驅動程序和軟件包，通常是NI-DAQmx軟件。這些驅動程序可提供與模塊的通信和控制功能。
- 軟件編程：使用NI-DAQmx軟件包提供的編程接口，例如LabVIEW或C/C++等，來編寫程序進行數據采集和分析?？梢栽O(shè)置采樣率、增益、輸入范圍等參數，并使用適當?shù)暮瘮?shù)進行數據讀取和處理。
NI PXIe-6124參數詳情：
- 采樣率：最大1.25 MS/s（百萬樣本/秒）
- 分辨率：16位
- 模擬輸入通道數：4
- 輸入范圍：可編程，通常為±10 V或±1 V
- 增益范圍：可編程，通常為1、10、100等
- 數據傳輸接口：PCI Express（PXI Express）和PXI總線
- 時鐘精度：通常在50 ppm以下
- 觸發模式：支持軟件觸發和多種硬件
英文資料：
NI PXIe-6124 is a high-performance data acquisition module that is part of NI (National Instruments) and provides a wide range of functionality and flexibility for testing and measurement applications. The following is an introduction to the product features, usage methods, and parameter details of NI PXIe-6124:
NI PXIe-6124 Product Features:
High performance acquisition: NI PXIe-6124 adopts a 16 bit resolution and has a sampling rate of up to 1.25 MS/s (millions of samples/second), enabling real-time acquisition of high-precision analog signal data.
Multi channel input: The NI PXIe-6124 module has four analog input channels, each of which can be independently sampled and controlled to meet the needs of different applications.
Powerful signal conditioning capability: NI PXIe-6124 provides programmable gain and programmable input range, which can adapt to different signal strengths and amplitude ranges for precise acquisition and measurement of various signal types.
High precision clock and trigger function: The NI PXIE-6124 module has an internal precise clock source and multiple trigger modes, ensuring the synchronization and accuracy of data collection.
Flexible data transmission interface: The NI PXIe-6124 supports multiple data transmission interfaces, including PCI Express (PXI Express) and PXI bus, allowing for high-speed data transmission and communication with other PXI devices and computer systems.
NI PXIE-6124 Usage:
Hardware settings: Insert the NI PXIe-6124 into a suitable slot in the PXIE chassis and ensure that the device is properly connected to the power supply and computer system.
Driver installation: Install drivers and software packages suitable for NI PXIE-6124 on the computer, usually NI-DAQmx software. These drivers can provide communication and control functions with modules.
Software programming: Use the programming interface provided by the NI-DAQmx software package, such as LabVIEW or C/C++, to write programs for data collection and analysis. You can set parameters such as sampling rate, gain, and input range, and use appropriate functions for data reading and processing.
NI PXIe-6124 parameter details:
Sampling rate: Maximum 1.25 MS/s (million samples/second)
Resolution: 16 bits
Number of analog input channels: 4
Input range: Programmable, usually ± 10 V or ± 1 V
Gain range: programmable, usually 1, 10, 100, etc
Data transmission interface: PCI Express (PXI Express) and PXI bus
Clock accuracy: usually below 50 ppm
Trigger mode: supports software triggering and multiple hardware options
