ABB 70SG01 R1 總線控制器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
70SG01 R1 總線控制器 是一種高性能、可靠的工業總線管理設備，專為復雜的自動化系統設計，用于實現設備間的高效通信和數據交換。該模塊能夠支持多種總線協議和通信標準，廣泛應用于工業自動化、能源管理、過程控制等領域。以下是其詳細信息：
產品特點
支持多種總線協議
- 兼容主流總線協議（如 CAN、Modbus、Profibus 等），適配性強。
高速通信
- 提供低延遲、高帶寬的通信能力，滿足實時數據傳輸需求。
模塊化設計
- 緊湊型設計，支持擴展，便于系統集成與維護。
穩定性與可靠性
- 工業級設計，抗電磁干擾能力強，適用于惡劣的工作環境。
靈活的通信接口
- 提供多種通信接口（如 RS485、RS232、Ethernet），適應不同的應用場景。
實時監控與診斷
- 內置診斷工具，支持總線狀態監控與故障檢測，提升系統維護效率。
技術規格
| 參數 | 規格 |
|---|---|
| 支持總線協議 | CAN、Modbus RTU、Profibus、Ethernet/IP 等 |
| 通信接口 | RS232、RS485、Ethernet、USB |
| 傳輸速率 | 最大 1Mbps（視協議而定） |
| 電源輸入 | 24V DC（標配） |
| 功耗 | ≤ 10W |
| 安裝方式 | DIN 導軌或機架式安裝 |
| 工作溫度范圍 | -20°C 至 70°C |
| 儲存溫度范圍 | -40°C 至 85°C |
| 防護等級 | IP20 或更高（根據環境配置） |
| 尺寸 | 緊湊型模塊，適合空間有限的安裝環境 |
英文資料：
The 70SG01 R1 bus controller is a high-performance and reliable industrial bus management device designed specifically for complex automation systems to achieve efficient communication and data exchange between devices. This module can support multiple bus protocols and communication standards, and is widely used in fields such as industrial automation, energy management, and process control. Here is its detailed information:
Product Features
Supports multiple bus protocols
Compatible with mainstream bus protocols such as CAN, Modbus, Profibus, etc., with strong adaptability.
High speed communication
Provide low latency and high bandwidth communication capabilities to meet real-time data transmission needs.
Modular design
Compact design, supporting expansion, easy system integration and maintenance.
Stability and reliability
Industrial grade design, strong electromagnetic interference resistance, suitable for harsh working environments.
Flexible communication interface
Provide multiple communication interfaces (such as RS485, RS232, Ethernet) to adapt to different application scenarios.
Real time monitoring and diagnosis
Built in diagnostic tools support bus status monitoring and fault detection, improving system maintenance efficiency.
technical specifications
Parameter specifications
Supports bus protocols such as CAN, Modbus RTU, Profibus, Ethernet/IP, etc
Communication interface RS232 RS485、Ethernet、USB
The maximum transmission rate is 1Mbps (depending on the protocol)
Power input 24V DC (standard)
Power consumption ≤ 10W
Installation method: DIN rail or rack mounted installation
Working temperature range -20 ° C to 70 ° C
Storage temperature range -40 ° C to 85 ° C
Protection level IP20 or higher (depending on environmental configuration)
Compact module size, suitable for installation environments with limited space

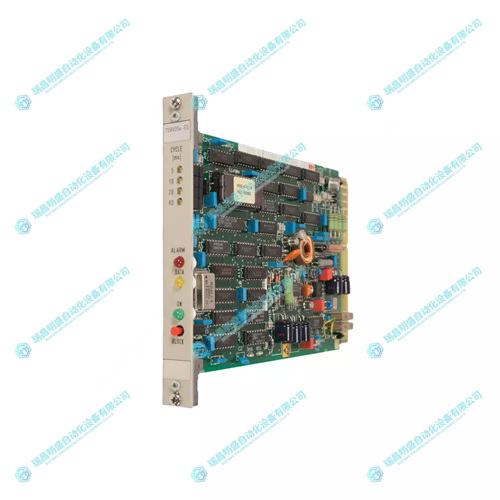

2.產 品 展 示
