ABB 70AB01c-ES控制板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
ABB 70AB01c-ES 控制板 是一款用于工業自動化系統中的控制模塊，專為實現高效、可靠的控制任務而設計。該控制板通常用于提供設備間信號處理、數據采集、系統管理以及實時控制等功能，是ABB自動化系統中的重要組成部分。
產品特點
高效控制功能
- 提供實時控制和數據處理能力，確保系統運行中的每個步驟都能高效執行。
靈活的信號處理
- 支持多種輸入輸出信號處理，包括數字、模擬、通信接口等，適應不同的自動化控制需求。
穩定可靠
- 采用高品質電子元件和抗干擾設計，能夠在惡劣工業環境中穩定工作，保證系統的可靠性和長期運行。
模塊化設計
- 支持與其他控制模塊的兼容性，便于系統擴展和靈活配置，滿足不同應用場景的需求。
快速響應能力
- 具有快速的響應時間，適合對實時性要求高的自動化控制系統，如生產線控制、過程控制等。
故障檢測與自診斷
- 內置故障檢測與自診斷功能，可以實時監控模塊的運行狀態，確保系統的健康與穩定。
易于集成與操作
- 與其他ABB自動化產品兼容，具備良好的互聯互通能力，且安裝、配置及維護方便。
技術規格
| 參數 | 規格 |
|---|---|
| 輸入信號類型 | 支持?jǐn)?shù)字、模擬、通信信號輸入 |
| 輸出信號類型 | 提供多種類型的數字、模擬輸出信號 |
| 控制方式 | 實時控制，可配置多個控制策略 |
| 通信接口 | 支持工業通信協議，如Modbus、Profibus等 |
| 電源要求 | 24V DC（標準電源輸入） |
| 功耗 | ≤ 10W |
| 工作溫度范圍 | -20°C 至 60°C |
| 儲存溫度范圍 | -40°C 至 85°C |
| 防護等級 | IP20（適用于工業環境中較為常見的保護等級） |
| 安裝方式 | DIN導軌安裝 |
| 尺寸 | 緊湊型設計，適合標準機柜或配電箱安裝 |
英文資料：
The ABB 70AB01c-ES control board is a control module designed for efficient and reliable control tasks in industrial automation systems. This control board is typically used to provide functions such as signal processing, data acquisition, system management, and real-time control between devices, and is an important component of ABB automation systems.
Product Features
Efficient control function
Provide real-time control and data processing capabilities to ensure efficient execution of every step in system operation.
Flexible signal processing
Support multiple input and output signal processing, including digital, analog, communication interfaces, etc., to meet different automation control requirements.
Stable and reliable
Adopting high-quality electronic components and anti-interference design, it can work stably in harsh industrial environments, ensuring the reliability and long-term operation of the system.
Modular design
Support compatibility with other control modules, facilitate system expansion and flexible configuration, and meet the needs of different application scenarios.
Rapid response capability
It has fast response time and is suitable for automation control systems with high real-time requirements, such as production line control, process control, etc.
Fault detection and self diagnosis
Built in fault detection and self diagnosis functions can monitor the real-time operation status of modules, ensuring the health and stability of the system.
Easy to integrate and operate
Compatible with other ABB automation products, with good interconnectivity, and easy installation, configuration, and maintenance.
technical specifications
Parameter specifications
Input signal types support digital, analog, and communication signal input
Output signal types provide multiple types of digital and analog output signals
Real time control with configurable multiple control strategies
The communication interface supports industrial communication protocols such as Modbus, Profibus, etc
Power requirement 24V DC (standard power input)
Power consumption ≤ 10W
Working temperature range -20 ° C to 60 ° C
Storage temperature range -40 ° C to 85 ° C
Protection level IP20 (applicable to common protection levels in industrial environments)
Installation method: DIN rail installation
Compact size design, suitable for installation in standard cabinets or distribution boxes

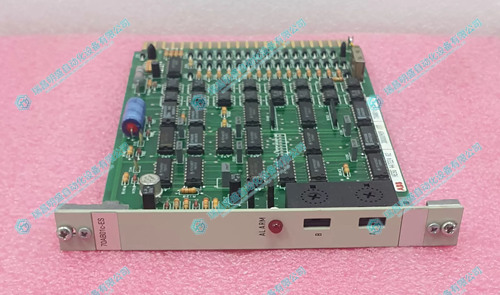

2.產 品 展 示
