ABB 70PR05b-ES控制面板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
ABB 70PR05b-ES 控制面板 是一款用于工業自動化和過程控制系統中的操作和監控面板，設計用于提供簡潔且高效的用戶界面，以便對自動化系統進行實時監控和控制。該控制面板適用于各種工業應用場景，具備強大的功能和穩定的性能。
產品特點
直觀的用戶界面
- 提供易于操作的觸摸屏界面，用戶可以方便地查看系統狀態、進行參數調整和配置，極大地提升了操作的便捷性。
多種控制功能
- 除了傳統的開關控制外，還提供調節和設置控制、故障報警、數據記錄等功能，適應多樣化的應用需求。
強大的數據采集與顯示
- 支持實時數據采集和顯示，可以顯示傳感器數據、設備狀態以及系統運行情況，幫助用戶更好地了解和控制系統。
豐富的通信接口
- 支持多種工業通信協議（如Modbus、Profibus、Ethernet等），能夠與不同類型的自動化控制系統、PLC、I/O模塊進行無縫連接，確保數據的實時傳輸和互聯互通。
可靠的系統性能
- 采用高可靠性硬件，確保設備在各種工業環境下的穩定運行，抗干擾性能強，適合在電磁環境復雜的場所使用。
靈活的安裝方式
- 支持標準的DIN導軌安裝或面板嵌入安裝方式，方便安裝和維護，且不占用過多空間。
報警與事件管理
- 內置報警管理系統，能夠在發生故障或異常時發出警報，并記錄事件日志，方便后期分析和維護。
定制化界面與操作
- 提供定制化功能，可以根據用戶需求定制顯示界面和操作流程，靈活適配不同場景和任務。
技術規格
| 參數 | 規格 |
|---|---|
| 屏幕類型 | LCD/觸摸屏 |
| 通信接口 | 支持Modbus、Profibus、Ethernet等工業協議 |
| 電源要求 | 24V DC（標準電源輸入） |
| 功耗 | ≤ 20W |
| 工作溫度范圍 | -20°C 至 60°C |
| 儲存溫度范圍 | -40°C 至 85°C |
| 防護等級 | IP20 |
| 安裝方式 | DIN導軌安裝或面板嵌入安裝 |
| 尺寸 | 適合標準機柜或控制面板安裝 |
| 輸入輸出方式 | 支持數字/模擬輸入輸出 |
| 報警功能 | 支持本地報警與遠程報警功能 |
英文資料：
The ABB 70PR05b-ES control panel is an operation and monitoring panel used in industrial automation and process control systems, designed to provide a simple and efficient user interface for real-time monitoring and control of automation systems. This control panel is suitable for various industrial application scenarios, with powerful functions and stable performance.
Product Features
Intuitive user interface
Providing an easy-to-use touch screen interface, users can easily view system status, adjust parameters, and configure settings, greatly improving the convenience of operation.
Multiple control functions
In addition to traditional switch control, it also provides functions such as adjustment and setting control, fault alarm, data recording, etc., to meet diverse application needs.
Powerful data collection and display
Support real-time data collection and display, which can display sensor data, device status, and system operation status, helping users better understand and control the system.
Rich communication interfaces
Supporting multiple industrial communication protocols (such as Modbus, Profibus, Ethernet, etc.), it can seamlessly connect with different types of automation control systems, PLCs, and I/O modules to ensure real-time data transmission and interconnection.
Reliable system performance
Adopting high reliability hardware to ensure stable operation of equipment in various industrial environments, with strong anti-interference performance, suitable for use in complex electromagnetic environments.
Flexible installation method
Supports standard DIN rail installation or panel embedding installation methods for easy installation and maintenance, without taking up too much space.
Alarm and Event Management
Built in alarm management system, capable of issuing alarms and recording event logs in case of faults or abnormalities, facilitating later analysis and maintenance.
Customized interface and operation
Provide customized functions, which can customize the display interface and operation process according to user needs, and flexibly adapt to different scenarios and tasks.
technical specifications
Parameter specifications
Screen type LCD/touch screen
The communication interface supports industrial protocols such as Modbus, Profibus, Ethernet, etc
Power requirement 24V DC (standard power input)
Power consumption ≤ 20W
Working temperature range -20 ° C to 60 ° C
Storage temperature range -40 ° C to 85 ° C
Protection level IP20
Installation method: DIN rail installation or panel embedded installation
Suitable size for standard cabinet or control panel installation
Input/output mode supports digital/analog input/output
Alarm function supports local and remote alarm functions

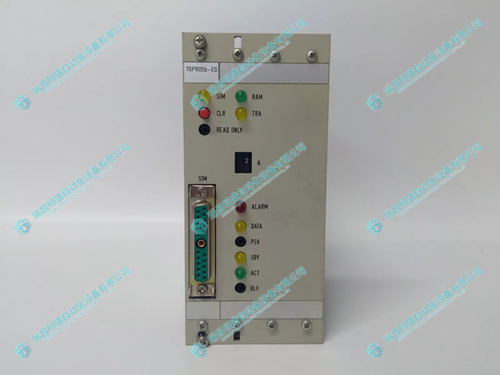

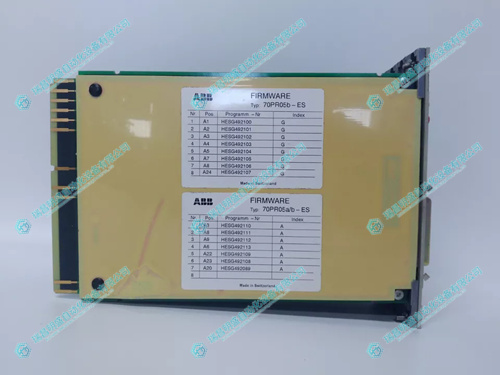

2.產 品 展 示
