GE IC3600EPSD1 電源模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
IC3600EPSD1 是 GE（通用電氣）Speedtronic 系列控制系統中的電源模塊，主要用于為控制系統中的其他組件提供穩定的電力供應。電源模塊是系統的重要組成部分，能夠確保整個控制系統在各種操作環境下持續穩定地運行。
產品特點
穩定電源輸出：
- 提供穩定的直流電源輸出，確保系統內部各模塊能夠正常工作。通常用于為控制單元、接口卡、傳感器等提供必需的電力。
高效率和可靠性：
- IC3600EPSD1 具有高效率的電源轉換能力，確保能量的最大利用，同時在惡劣的工業環境中也能提供長期的穩定服務。
過載保護：
- 配備過載保護功能，可以防止電源出現過負載情況，保護控制系統中的其他設備免受損害。
抗干擾能力：
- 電源模塊具有較強的抗電氣干擾能力，確保即使在電磁干擾較強的環境下也能保持穩定工作。
熱保護：
- 具備內建的熱保護機制，當工作溫度過高時，模塊能夠自動調整工作狀態或停機保護，避免過熱造成損壞。
技術規格
輸入電壓：
- 支持標準工業輸入電壓，通常為 24V DC 或 48V DC（具體電壓要求根據系統配置而定）。
輸出電壓：
- 該電源模塊能夠提供穩定的直流輸出，通常為 24V DC 電壓。
電流輸出：
- 提供一定電流范圍，能夠滿足控制系統中多個模塊同時工作的電力需求。
保護機制：
- 過載保護：當負載超過設定值時，模塊會自動斷電或進行保護。
- 短路保護：在短路發生時，模塊能夠自動切斷電源，防止對其他設備造成損害。
- 熱保護：防止因溫度過高而導致設備故障，保持電源穩定運行。
工作環境：
- 工作溫度范圍：-20°C 至 +70°C。
- 濕度范圍：0%-95%（無冷凝）。
英文資料：
IC3600EPSD1 is a power module in the GE Speedtronic series control system, mainly used to provide stable power supply to other components in the control system. The power module is an important component of the system, which can ensure the continuous and stable operation of the entire control system in various operating environments.
Product Features
Stable power output:
Provide stable DC power output to ensure that all modules within the system can function properly. Usually used to provide necessary power for control units, interface cards, sensors, etc.
High efficiency and reliability:
IC3600EPSD1 has high-efficiency power conversion capability, ensuring maximum energy utilization, while also providing long-term stable service in harsh industrial environments.
Overload protection:
Equipped with overload protection function, it can prevent the power supply from experiencing overload situations and protect other devices in the control system from damage.
Anti interference capability:
The power module has strong resistance to electrical interference, ensuring stable operation even in environments with strong electromagnetic interference.
Thermal protection:
Equipped with built-in thermal protection mechanism, the module can automatically adjust its working state or shut down for protection when the working temperature is too high, avoiding damage caused by overheating.
technical specifications
Input voltage:
Supports standard industrial input voltage, typically 24V DC or 48V DC (specific voltage requirements depend on system configuration).
Output voltage:
This power module can provide stable DC output, typically 24V DC voltage.
Current output:
Provide a certain current range that can meet the power requirements of multiple modules working simultaneously in the control system.
Protection mechanism:
Overload protection: When the load exceeds the set value, the module will automatically power off or provide protection.
Short circuit protection: In the event of a short circuit, the module can automatically cut off the power supply to prevent damage to other devices.
Thermal protection: prevent equipment failure caused by high temperature and maintain stable power supply operation.
Work environment:
Working temperature range:- 20 ° C to+70 ° C.
Humidity range: 0% -95% (without condensation).

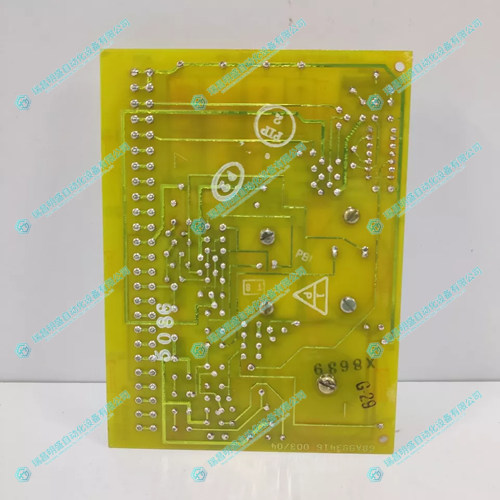

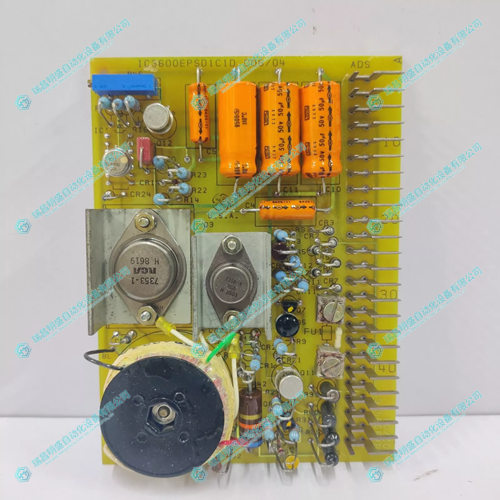

2.產 品 展 示
