GE IC3600KVSA1零速傳感器卡 PDF資料
1.產 品 資 料 介 紹：
中文資料：
IC3600KVSA1 零速傳感器卡 是 GE Speedtronic 系列控制系統中的一款重要組件，專門用于燃?xì)廨啓C(jī)、蒸汽輪機或其他機械設備的零速監測。該卡用于檢測轉動設備的零速狀態，確保在沒有轉速或轉速異常的情況下及時報警，防止設備損壞或異常工況發生。
產品概述
- 型號：IC3600KVSA1
- 類型：零速傳感器卡
- 功能：
- 用于實時監控轉動設備的轉速狀態。
- 當設備轉速降至零或接近零時，立即發出信號報警或觸發保護動作。
- 提供與傳感器的連接接口，將轉速信號轉換為控制系統能夠處理的格式。
技術特點
轉速監測：
- 通過零速傳感器卡實時檢測轉動設備的轉速變化。
- 精確監控轉速是否達到設定的零速閾值，并及時報告異常情況。
零速保護：
- 一旦設備的轉速降至零或接近零，該卡會立即觸發警報，防止因零速狀態造成機械故障。
- 在緊急情況下，可以與系統的其他安全模塊聯動，停止設備的運轉或采取其他保護措施。
兼容性：
- 兼容多種類型的傳感器，適應不同設備的需求。
- 支持與Speedtronic 控制系統無縫集成，確保系統的高效穩定運行。
高精度：
- 采用高精度的傳感器輸入技術，確保轉速監控的準確性和實時性。
- 對零速狀態的響應時間非常短，有效避免設備長時間處于危險狀態。
模塊化設計：
- 緊湊的設計使得該卡能方便地集成到現有的控制系統中。
- 結構模塊化，便于快速更換和維護。
英文資料：
The IC3600KVSA1 zero speed sensor card is an important component of the GE Speedtronic series control system, specifically designed for zero speed monitoring of gas turbines, steam turbines, or other mechanical equipment. This card is used to detect the zero speed state of rotating equipment, ensuring timely alarm in the absence of speed or abnormal speed, and preventing equipment damage or abnormal working conditions.
Product Overview
model: IC3600KVSA1
Type: Zero speed sensor card
Function:
Used for real-time monitoring of the rotational speed status of rotating equipment.
When the device speed drops to zero or approaches zero, a signal alarm or protection action is immediately triggered.
Provide a connection interface with the sensor to convert the speed signal into a format that the control system can process.
Technical features
Speed monitoring:
Real time detection of speed changes in rotating equipment through zero speed sensor cards.
Accurately monitor whether the speed reaches the set zero speed threshold and promptly report any abnormal situations.
Zero speed protection:
Once the speed of the device drops to zero or approaches zero, the card will immediately trigger an alarm to prevent mechanical failure caused by the zero speed state.
In emergency situations, it can be linked with other security modules of the system to stop the operation of the equipment or take other protective measures.
compatibility:
Compatible with multiple types of sensors to meet the needs of different devices.
Support seamless integration with Speedtronic control system to ensure efficient and stable operation of the system.
high-precision:
Adopting high-precision sensor input technology to ensure the accuracy and real-time performance of speed monitoring.
The response time to zero speed state is very short, effectively avoiding the equipment from being in a dangerous state for a long time.
Modular design:
The compact design allows the card to be easily integrated into existing control systems.
Modular structure for quick replacement and maintenance.

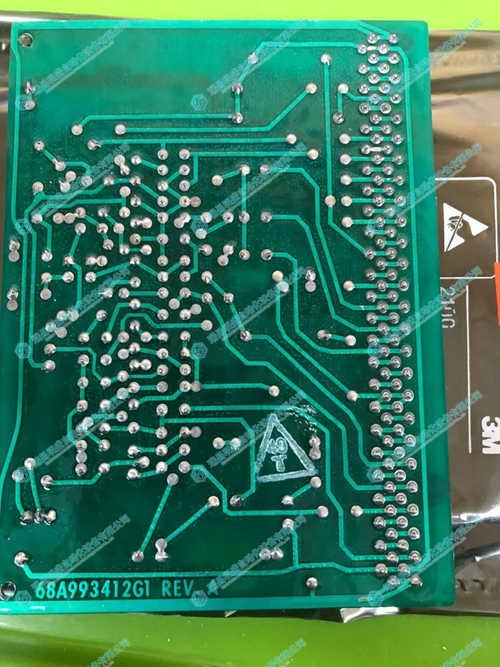

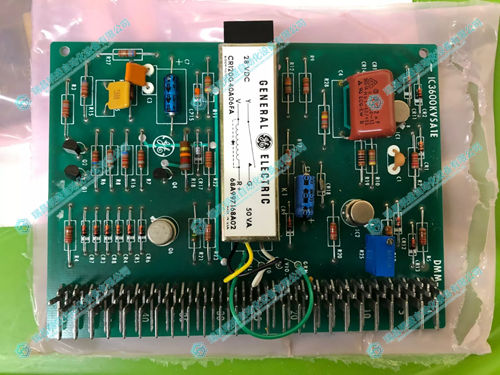

2.產 品 展 示
