GE IC3600EPSCIB繼電器電路板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
IC3600EPSCIB繼電器電路板 是通用電氣 (GE) Mark系列控制系統中的一個重要模塊。此模塊通常用于控制系統中與繼電器相關的操作，例如開關控制、信號隔離和負載切換，確保工業自動化和渦輪控制系統的穩定運行。
功能與特點
繼電器控制：
- 管理多個繼電器通道，用于設備的開/關操作。
- 提供高效的電流切換功能，適用于不同類型的負載。
信號隔離：
- 實現信號的電氣隔離，保護控制系統免受高電壓或電流影響。
模塊化設計：
- 插拔式設計，易于安裝和維護，與 GE Mark 系列系統無縫集成。
高可靠性：
- 工業級組件，適用于苛刻的運行環境，包括高溫、高濕和振動場合。
故障保護：
- 內置過載保護功能，防止繼電器觸點損壞，確保電路板長時間穩定運行。
技術規格
繼電器通道：
- 支持多個繼電器輸出通道，每個通道可以獨立控制。
電氣參數：
- 工作電壓：常見為 24V DC 或 110V AC。
- 輸出功率：根據具體型號，可能支持 5A 或更高的切換電流。
接口類型：
- 標準化插槽或端子連接，便于與主控制系統連接。
工作環境：
- 工作溫度：-40°C 至 +70°C。
- 濕度范圍：5%-95%（無冷凝）。
尺寸和安裝：
- 標準尺寸設計，兼容 GE Mark 系列機架。
英文資料：
The IC3600EPSCIB relay circuit board is an important module in the General Electric (GE) Mark series control system. This module is typically used for relay related operations in control systems, such as switch control, signal isolation, and load switching, to ensure stable operation of industrial automation and turbine control systems.
Function and Features
Relay control:
Manage multiple relay channels for device on/off operations.
Provide efficient current switching function, suitable for different types of loads.
Signal isolation:
Implement electrical isolation of signals to protect the control system from high voltage or current effects.
Modular design:
Plug in design, easy to install and maintain, seamlessly integrated with GE Mark series systems.
High reliability:
Industrial grade components suitable for harsh operating environments, including high temperature, high humidity, and vibration scenarios.
Fault protection:
Built in overload protection function to prevent damage to relay contacts and ensure long-term stable operation of the circuit board.
technical specifications
Relay channel:
Support multiple relay output channels, each channel can be independently controlled.
Electrical parameters:
Working voltage: commonly 24V DC or 110V AC.
Output power: Depending on the specific model, it may support switching currents of 5A or higher.
Interface type:
Standardized slots or terminal connections for easy connection with the main control system.
Work environment:
Working temperature:- 40 ° C to+70 ° C.
Humidity range: 5% -95% (without condensation).
Size and installation:
Standard size design, compatible with GE Mark series racks.

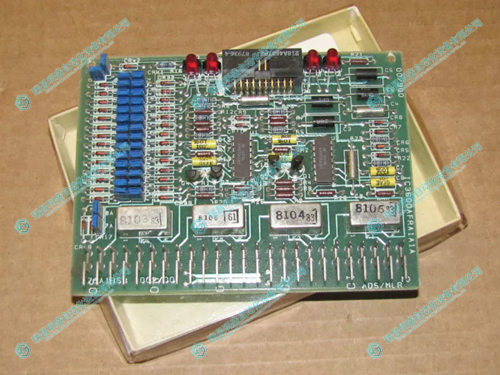

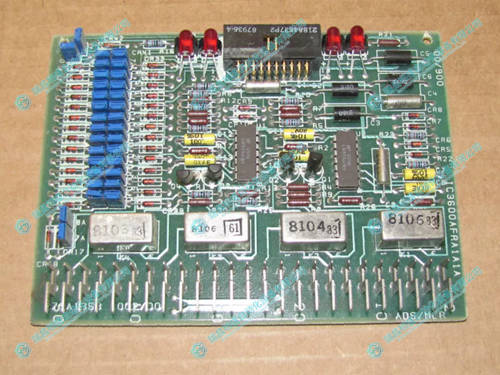

2.產 品 展 示
