GE IC3600SVSAIE直流電源供應板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
IC3600SVSAIE直流電源供應板 是通用電氣（GE）Mark系列控制系統中的一個關鍵組件，主要用于為系統提供穩定的直流電源。此類電源板通常用于支持工業自動化、渦輪控制及其他高要求的電子系統，確保這些系統能夠穩定工作并提供精確的控制和保護功能。
功能與特點
提供直流電源：
- 為系統中的各個模塊提供必要的直流電壓（如5V、12V、24V DC等），保證電路的正常運行。
電壓穩壓與濾波：
- 電源板通常內置穩壓電路，確保輸出電壓穩定，同時減少電源噪聲對系統的影響。
多通道輸出：
- 可能支持多個電壓輸出通道，以滿足不同組件的電源需求。
過載保護：
- 內置過載保護機制，防止電源過載或短路導致的設備損壞。
熱管理：
- 高效的熱散管理設計，防止過熱，保證設備的長時間穩定運行。
高可靠性：
- 適用于苛刻的工業環境，具備耐高溫、抗振動、抗電磁干擾等特性。
技術規格
輸入/輸出電壓：
- 輸入電壓范圍：通常為 24V 或 110V AC，根據型號有所不同。
- 輸出電壓：常見為 5V、12V、24V DC，適用于不同設備。
功率容量：
- 輸出功率一般會根據系統需求不同而有所變化，通常為幾百瓦到上千瓦不等。
保護功能：
- 過載、短路保護：確保電源板及整個系統在異常情況下不會損壞。
- 溫度保護：內置溫度傳感器，防止過熱。
接口類型：
- 通常通過標準化接口與系統主控制單元連接。
工作環境：
- 工作溫度：-40°C 至 +70°C（視型號而定）。
- 濕度范圍：5%-95%（無冷凝）。
物理尺寸：
- 根據系統要求，設計適配于GE Mark系列機架或其他控制柜中。
英文資料：
The IC3600SVSAIE DC power supply board is a key component in the General Electric (GE) Mark series control system, primarily used to provide stable DC power to the system. This type of power board is typically used to support industrial automation, turbine control, and other high demand electronic systems, ensuring that these systems can operate stably and provide precise control and protection functions.
Function and Features
Provide DC power supply:
Provide necessary DC voltages (such as 5V, 12V, 24V DC, etc.) for each module in the system to ensure the normal operation of the circuit.
Voltage stabilization and filtering:
Power boards usually have built-in voltage stabilization circuits to ensure stable output voltage and reduce the impact of power supply noise on the system.
Multi channel output:
It may support multiple voltage output channels to meet the power requirements of different components.
Overload protection:
Built in overload protection mechanism to prevent equipment damage caused by power overload or short circuit.
Thermal management:
Efficient heat dissipation management design to prevent overheating and ensure long-term stable operation of equipment.
High reliability:
Suitable for harsh industrial environments, it has characteristics such as high temperature resistance, vibration resistance, and electromagnetic interference resistance.
technical specifications
Input/output voltage:
Input voltage range: usually 24V or 110V AC, depending on the model.
Output voltage: commonly 5V, 12V, 24V DC, suitable for different devices.
Power capacity:
The output power generally varies depending on the system requirements, typically ranging from a few hundred watts to several kilowatts.
Protection function:
Overload and short circuit protection: Ensure that the power board and the entire system are not damaged in case of abnormal conditions.
Temperature protection: Built in temperature sensor to prevent overheating.
Interface type:
Usually connected to the system main control unit through standardized interfaces.
Work environment:
Working temperature:- 40 ° C to+70 ° C (depending on the model).
Humidity range: 5% -95% (without condensation).
Physical dimensions:
Design and adapt to GE Mark series racks or other control cabinets according to system requirements.

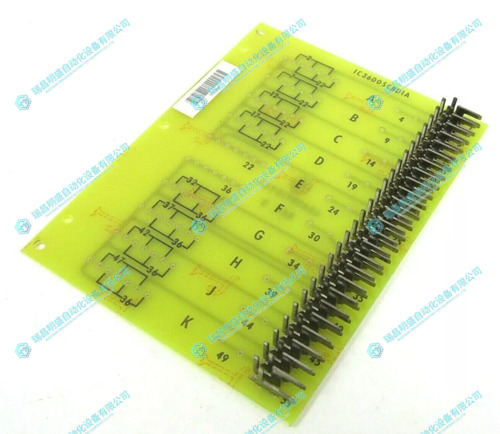

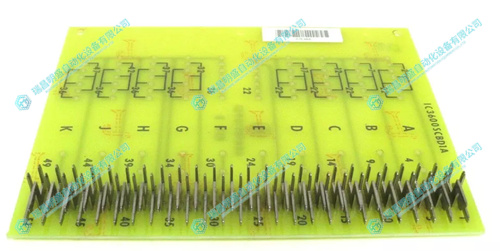

2.產 品 展 示
3.其他產品
Kollmorgen MMC-SD-0.5-230-D伺服驅動器
4.其他英文產品
Asea 2668 170-3 Pcb Circuit Board
RADISYS 061-01450-0010 Network Adapter
ABB XVC768115 thyristor module
