GE IC3600EPSS1B 電源供應板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
IC3600EPSS1B 電源供應板 是通用電氣（GE）Mark系列控制系統中的重要組成部分，主要用于為系統內的電子模塊和其他組件提供穩定的電力支持。該電源供應板能夠?qū)⑤斎氲慕涣麟娀蛑绷麟娹D(zhuǎn)換為系統所需的各種電壓（例如5V、12V、24V等），確保系統在運行過程中能獲得充足且穩定的電力。
功能與特點
電源轉換與穩壓：
- 將交流電源（AC）或直流電源（DC）轉換為適合系統其他部件的直流電壓。
- 內置穩壓模塊，確保輸出電壓始終保持在穩定范圍，避免電壓波動對設備造成影響。
多個輸出通道：
- 提供多個電壓輸出通道（如5V、12V、24V DC），以滿足不同模塊或設備的電源需求。
過載保護：
- 具有過載、過壓、短路等保護機制，確保系統不會因電源問題而受到損壞。
高效能與可靠性：
- 設計用于長期運行，具有高效率和高可靠性，適應各種苛刻的工業環境。
熱管理設計：
- 配有散熱設計，確保電源板在長時間高負載運行下不會過熱，避免溫度過高導致的系統故障。
技術規格
輸入電壓：
- 輸入電壓范圍可能為110V-240V AC或24V DC（具體型號依需求而定）。
- 提供多個輸入端口，便于接入不同電源類型。
輸出電壓：
- 輸出電壓通常包括常見的5V、12V、24V DC等，確保兼容多種設備。
功率容量：
- 輸出功率一般在幾百瓦到千瓦不等，滿足系統中多個模塊的功率需求。
保護功能：
- 過載保護：當負載超過電源板最大負荷時，自動斷開或限制電流。
- 短路保護：保護電源板避免因短路損壞。
- 溫度保護：監控電源板溫度，避免過熱故障。
工作環境：
- 工作溫度范圍：-40°C 到 +70°C（具體型號有所不同）。
- 濕度：5%-95%無冷凝。
接口與連接：
- 電源板通常配有標準的電氣接口，易于與其他模塊或控制單元連接。
英文資料：
The IC3600EPSS1B power supply board is an important component of the General Electric (GE) Mark series control system, primarily used to provide stable power support for electronic modules and other components within the system. This power supply board can convert input AC or DC power into various voltages required by the system (such as 5V, 12V, 24V, etc.), ensuring that the system can obtain sufficient and stable power during operation.
Function and Features
Power conversion and stabilization:
Convert alternating current (AC) or direct current (DC) power to a DC voltage suitable for other components of the system.
Built in voltage regulator module ensures that the output voltage remains within a stable range, avoiding voltage fluctuations from affecting the equipment.
Multiple output channels:
Provide multiple voltage output channels (such as 5V, 12V, 24V DC) to meet the power requirements of different modules or devices.
Overload protection:
It has overload, overvoltage, short circuit and other protection mechanisms to ensure that the system will not be damaged due to power issues.
High efficiency and reliability:
Designed for long-term operation, with high efficiency and reliability, suitable for various harsh industrial environments.
Thermal management design:
Equipped with heat dissipation design to ensure that the power board will not overheat under long-term high load operation, avoiding system failures caused by high temperature.
technical specifications
Input voltage:
The input voltage range may be 110V-240V AC or 24V DC (depending on the specific model).
Provide multiple input ports for easy access to different types of power sources.
Output voltage:
The output voltage usually includes common 5V, 12V, 24V DC, etc., ensuring compatibility with multiple devices.
Power capacity:
The output power generally ranges from several hundred watts to kilowatts, meeting the power requirements of multiple modules in the system.
Protection function:
Overload protection: When the load exceeds the maximum load of the power board, it automatically disconnects or limits the current.
Short circuit protection: Protect the power board from damage caused by short circuits.
Temperature protection: Monitor the temperature of the power board to avoid overheating faults.
Work environment:
Working temperature range:- 40 ° C to+70 ° C (specific models vary).
Humidity: 5% -95% without condensation.
Interface and Connection:
Power boards are usually equipped with standard electrical interfaces that are easy to connect with other modules or control units.

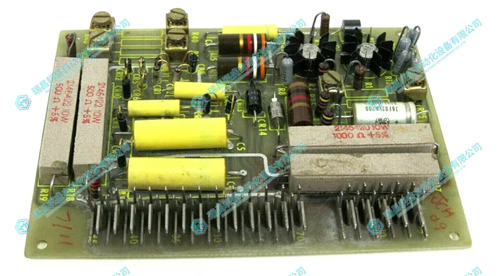

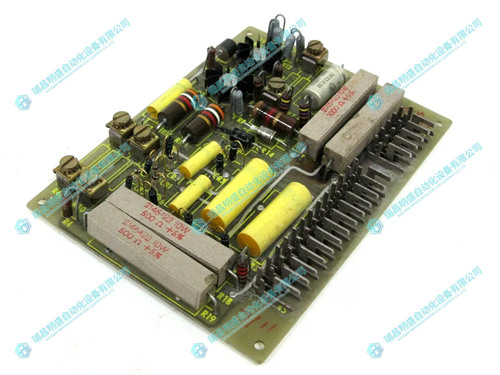

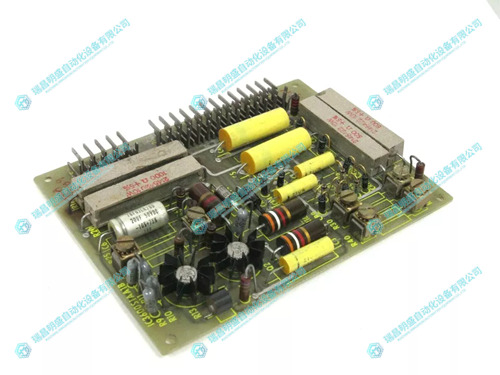

2.產 品 展 示
