如果摩托羅拉網絡軟件運行在MVME147，它使用BBRAM中的2xxxxx值來填寫以太網站地址（$08003E2xxxxx）。您必須確保保持2xxxxx的值在BBRAM中。如果在BBRAM中丟失2xxxxx的值，則使用背板連接器P2標簽上的編號為恢復它。注意，MVME147Bug包括LSAD”命令，用于檢查和更新BBRAM xxxxx值。

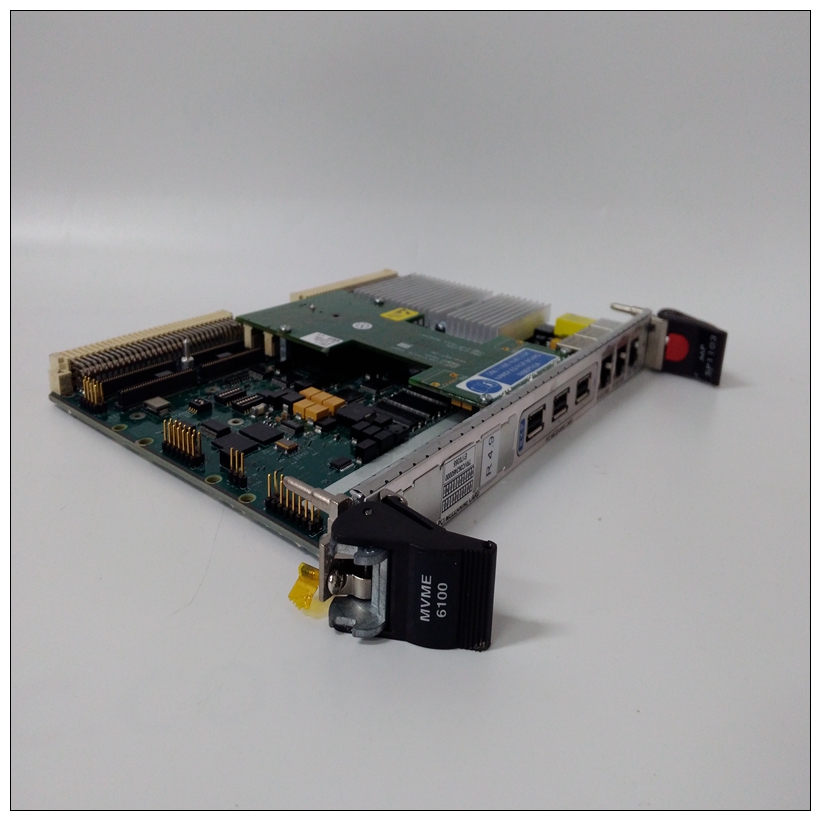

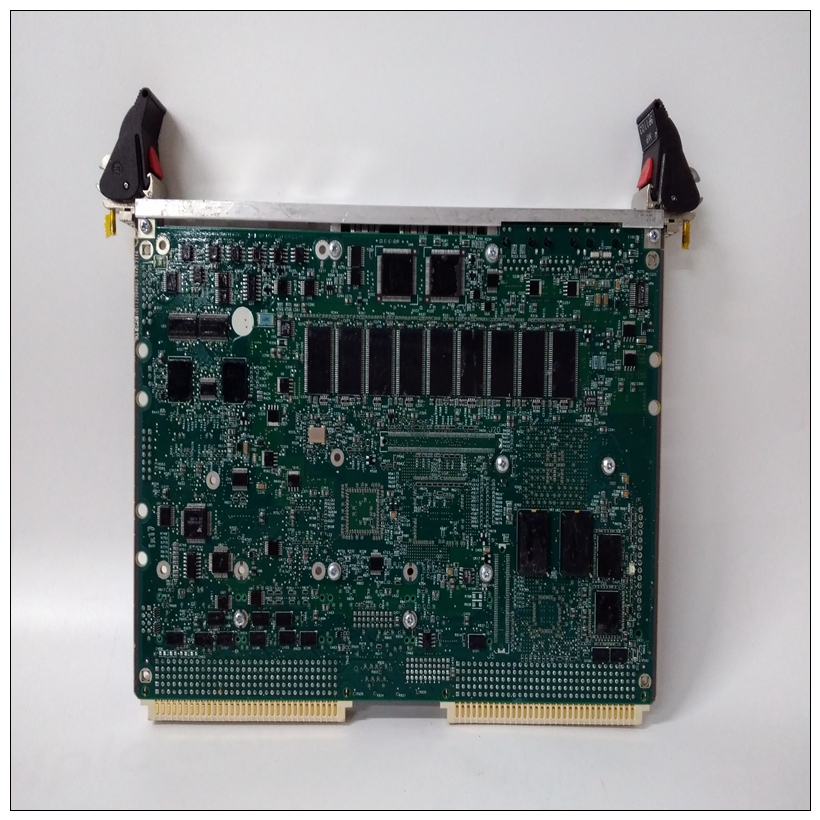

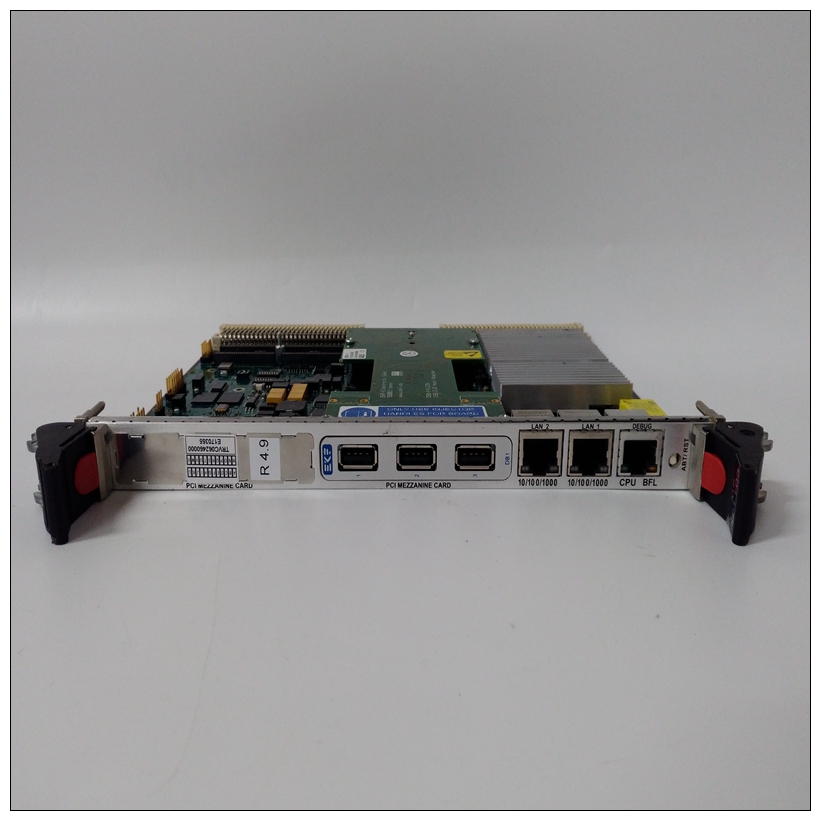

MVME6100自動化卡件如果非摩托羅拉網絡軟件運行在MVME147，它必須設置79C90，以便以太網車站地址顯示在前面板標簽上，用于確保模塊具有全球唯一的以太網車站地址。將MVME147插入所選卡槽。確保模塊正確安裝在背板。用螺釘將模塊固定在機箱中假如為了正確操作，需要一個32位VMEbus背板應使用。這確保了電力充足分布在連接器P1和P2上足夠的電源引腳上。5.從機箱上的收割臺上拆下IACK和BG跳線安裝MVME147的卡槽的背板（如適用）。.請參閱隨附的MVME712用戶手冊MVME712轉換模塊，并安裝轉換板、P2適配器板和所需的任何外圍電纜，根據此處給出的安裝說明。7、連接用作系統的終端控制臺至標有串行端口1的串行輸入/輸出端口/控制臺在MVME712模塊上。要使用147Bug，請?jiān)O(shè)置終端
具體如下：–每個字符8位–每個字符一個停止位–奇偶校驗禁用（無奇偶校驗）–9600波特，符合MVME147端口的默認波特率通電時。
If Motorola networking software is running on an MVME147, it uses the 2xxxxx value from BBRAM to complete the Ethernet station address ($08003E2xxxxx). You must ensure that the value of 2xxxxx is maintained in BBRAM. If the value of 2xxxxx is lost in BBRAM, use the number on the backplane connector P2 label to restore it. Note that MVME147Bug includes the “LSAD” command for examining and updating the BBRAM xxxxx value. If non-Motorola networking software is running on an MVME147, it must set up the 79C90 so that the Ethernet station address is that shown on the front panel label to ensure that the module has a globally unique Ethernet station address. 4. Insert the MVME147 into the selected card slot. Be sure the module is seated properly into the connectors on the backplane. Fasten the module in the chassis with the screws provided. For proper operation, a 32-bit VMEbus backplane should be used. This ensures that power is sufficiently distributed over enough power pins on connectors P1 and P2. 5. Remove IACK and BG jumpers from the header on chassis backplane for the card slot in which the MVME147 is installed (if applicable). 6. Refer to the MVME712 user’s manual provided with your MVME712 transition module, and install the transition board, P2 adapter board, and any peripheral cables needed, according to the installation instructions given there. 7. Connect the terminal which is to be used as the system console to the serial I/O port marked SERIAL PORT 1/CONSOLE on the MVME712 module. To use 147Bug, set up the terminal as follows: – Eight bits per character – One stop bit per character – Parity disabled (no parity) – 9600 baud to agree with the MVME147 ports’ default baud rate at power-up.
