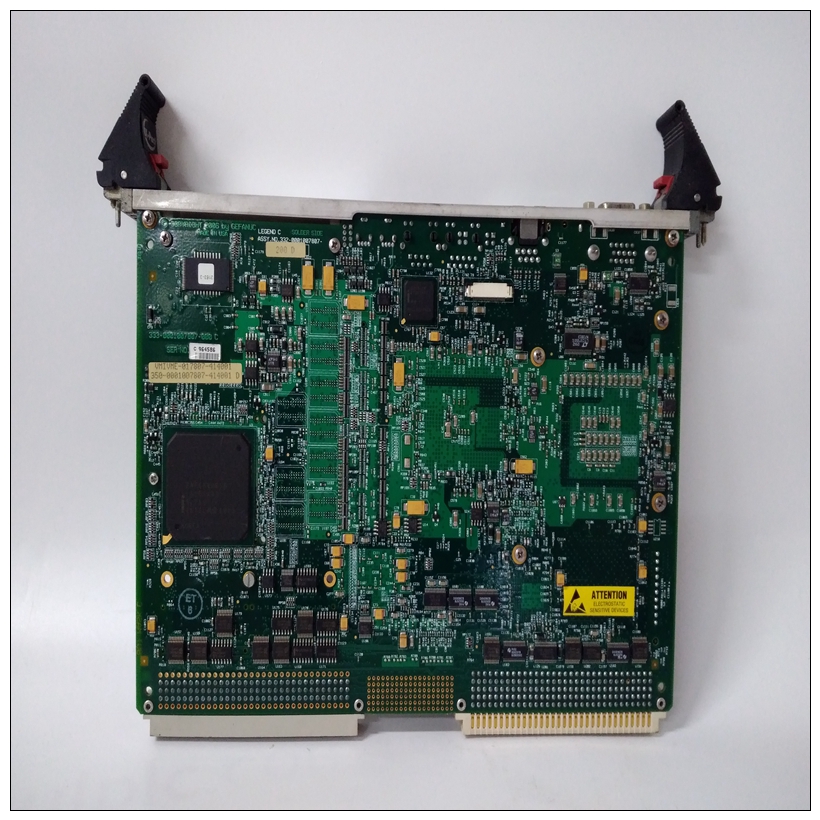

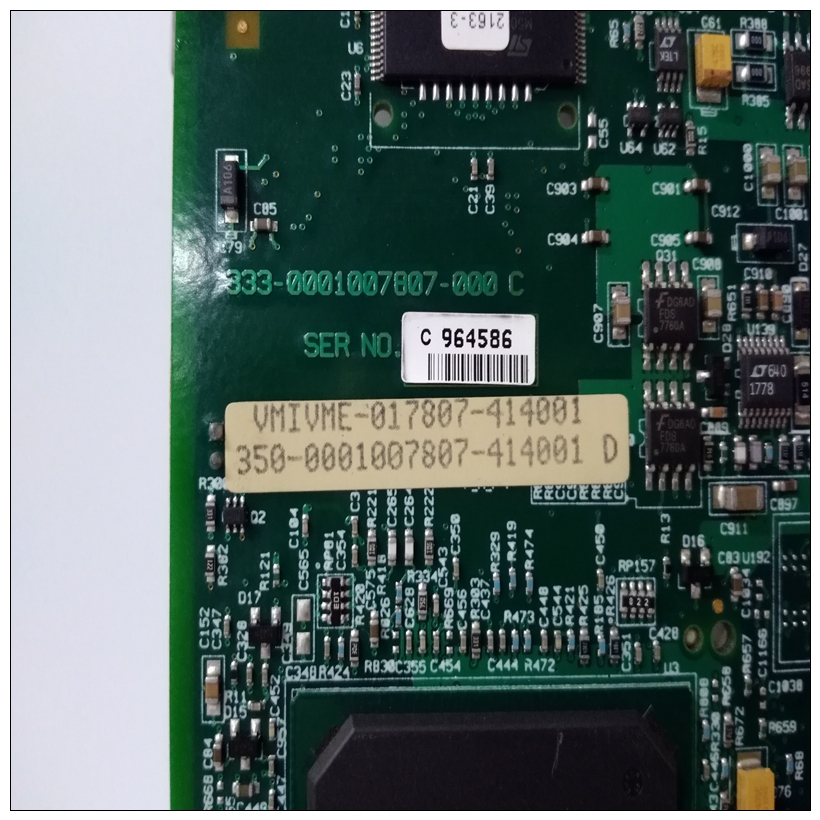

VMIVME-7807-411001 350-0001007807-411001 B燃機模塊
該位選擇打印機選通的自動或手動模式。當該位較低時，打印機選通由寫入生成打印機數據寄存器（自動模式）。當該位較高時打印機選通不是通過寫入打印機數據生成的寄存器（手動模式）。該位通過重置清除。位1該位控制自動模式下的打印機選通定時。當該位較低時，自動模式下的選通時間為2微秒。
VMIVME-7807-411001 350-0001007807-411001 B燃機模塊當該位高時，自動模式中的選通時間模式為8微秒。選通時間也是時間延遲從寫入打印機數據寄存器到打印機選通。該位通過重置清除。位2該位控制手動模式下的打印機選通。在手動模式下，軟件必須控制定時。當這個位低，打印機選通未激活。當此位為高，打印機選通被激活。該位通過重置清除。位3該位控制輸入主信號。當該位較低時輸入主信號未激活。當該位較高時輸入主信號激活。軟件必須控制打印機輸入主信號的定時。該位被清除重置。位設置和清除指令不應用于此控制寄存器。因?yàn)橹袛啾粚?寫入狀態位，狀態位為1至指示掛起的中斷，讀-修改-寫序列可能清除掛起的中斷。這些位對DMA控制器的中斷級別進行編程生成。級別0不生成中斷。這些位是通過重置清除。位3當該位為高位時，中斷被啟用。中斷是此位低時禁用。該位通過重置清除。位7當該位為高位時，DMA中斷在以位0-2編程的電平。該位是邊緣敏感的設置在中斷啟用和DMA完成的前沿（inDMA控制和狀態寄存器）。當1時，該位被清除或當中斷被禁用時寫入。清除后，它保持清除狀態，直到中斷啟用的下一個前沿DMA完成。該位通過重置清除。
This bit selects the auto or manual mode for the printer strobe.
When this bit is low, the printer strobe is generated by a write to
the printer data register (auto mode). When this bit is high, the
printer strobe is not generated by a write to the printer data
register (manual mode). This bit is cleared by reset.
Bit 1 This bit controls the printer strobe timing in the auto mode.
When this bit is low, the strobe time in the auto mode is 2
microseconds. When this bit is high, the strobe time in the auto
mode is 8 microseconds. The strobe time is also the time delay
from the write to the printer data register to the assertion of the
printer strobe. This bit is cleared by reset.
Bit 2 This bit controls the printer strobe in the manual mode. In the
manual mode, the software must control the timing. When this
bit is low, the printer strobe is not activated. When this bit is
high, the printer strobe is activated. This bit is cleared by reset.
Bit 3 This bit controls the Input Prime signal. When this bit is low, the
Input Prime signal is not activated. When this bit is high, the
Input Prime signal is activated. The software must control the
timing of the printer Input Prime signal. This bit is cleared by
reset. Bit set and clear instructions should not be used on this
control register. Because the interrupt is cleared by
writing a 1 to the status bit and the status bit is a 1 to
indicate a pending interrupt, the read-modify-write
sequence may clear a pending interrupt. These bits program the interrupt level the DMA controller
generates. Level 0 does not generate an interrupt. These bits are
cleared by reset.
Bit 3 When this bit is high, the interrupt is enabled. The interrupt is
disabled when this bit is low. This bit is cleared by reset.
Bit 7 When this bit is high, a DMA interrupt is being generated at the
level programmed in bits 0-2. This bit is edge sensitive and it is
set on the leading edge of interrupt enable and DMA DONE (in
DMA Control and Status Register). This bit is cleared when a 1
is written to it or when the interrupt is disabled. When cleared,
it remains cleared until the next leading edge of interrupt enable
and DMA DONE. This bit is cleared by reset.
