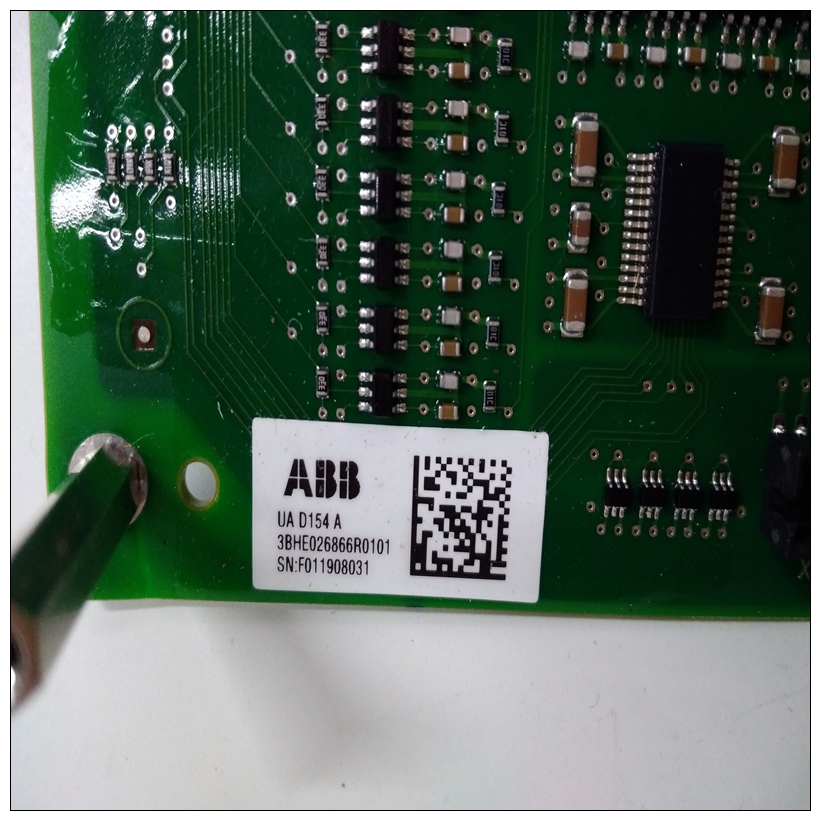

UAD154A 3BHE026866R0101通訊模塊，ABB培訓教程
位置監視器1配置為監視雙字節訪問主管短輸入/輸出地址$00F2，單字節訪問短輸入/輸出地址$00F3。清除后，LM1表示對地址$00F2或$00F3的訪問是檢測。此時，請求公用事業中斷級別4（如果中斷已啟用）。當中斷為已確認或軟件向其寫入1時。該位設置為1通過SYSRESET。見以下注釋。位6位置監視器2配置為監視雙字節訪問主管短輸入/輸出地址$00F4，單字節訪問短輸入/輸出地址$00F5。清除后，LM2表示對地址$00F4或$00F5的訪問是檢測。
UAD154A 3BHE026866R0101通訊模塊當軟件向其寫入1時，設置LM2。此位已設置通過SYSRESET設置為1。見以下注釋。位置監視器3配置為監視雙字節訪問主管短輸入/輸出地址$00F6，單字節訪問短輸入/輸出地址$00F7。清除后，LM3表示對地址$00F6或$00F7的訪問是檢測。當軟件向其寫入1時，設置LM3。此位已設置通過SYSRESET設置為1。見以下注釋。GCSR基址配置寄存器必須編程以允許GCSR寄存器組響應VMEbus訪問以使此功能啟用。執行位置監視器的VMEbus主機循環必須生成DTACK信號以終止周期SIGLP控制信號允許其他VMEbus主機中斷MC68030。SIGLP只能從VMEbus。它只能由MC68030清除。當VMEbus主機將SIGLP設置為1，VMEchip請求一個級別1個MC68030中斷（如果此類中斷已啟用）。這個中斷請求一直保留，直到MC68030向其寫入1。該位由SYSRESET清除。見下文注1。位1 SIGHP控制信號允許其他VMEbus主機中斷MC68030。SIGHP只能從VMEbus。它只能由MC68030清除。當VMEbus主機將SIGHP設置為1，VMEchip請求一個級別5中斷MC68030（如果此類中斷已啟用）。這個中斷請求一直保留，直到MC68030向其寫入1。該位由SYSRESET清除。見下文注1。位4 BRDFAIL是BRDFAIL*輸入/輸出信號的反射線每當信號線被激活時，狀態位被設置為1由VMEchip或看門狗超時激活
來自PCC。
Location monitor 1 is configured to monitor double-byte
accesses to the supervisor short I/O address $00F2, and singlebyte accesses to the short I/O address $00F3. When cleared,
LM1 indicates that an access to address $00F2 or $00F3 was
detected. At such a time, utility interrupt level 4 is requested (if
the interrupt is enabled). LM1 is set when the interrupt is
acknowledged or when software writes a 1 to it. This bit is set to
1 by SYSRESET. See Note below.
Bit 6 Location monitor 2 is configured to monitor double-byte
accesses to the supervisor short I/O address $00F4, and singlebyte accesses to the short I/O address $00F5. When cleared,
LM2 indicates that an access to address $00F4 or $00F5 was
detected. LM2 is set when software writes a 1 to it. This bit is set
to 1 by SYSRESET. See Note below.Location monitor 3 is configured to monitor double-byte
accesses to the supervisor short I/O address $00F6, and singlebyte accesses to the short I/O address $00F7. When cleared,
LM3 indicates that an access to address $00F6 or $00F7 was
detected. LM3 is set when software writes a 1 to it. This bit is set
to 1 by SYSRESET. See Note below.The GCSR Base Address Configuration Register must
be programmed to allow the GCSR set of registers to
respond to VMEbus accesses for this function to be
enabled.
The VMEbus master that executes the location monitor
cycle must generate the DTACK signal to terminate the
cycle. The SIGLP control signal allows other VMEbus masters to
interrupt the MC68030. SIGLP can only be set from the
VMEbus. It can only be cleared by the MC68030. When a
VMEbus master sets SIGLP to a 1, the VMEchip requests a level
1 interrupt to the MC68030 (if such interrupts are enabled). The
interrupt request remains until the MC68030 writes a 1 to it.
This bit is cleared by SYSRESET. See Note 1 below.
Bit 1 The SIGHP control signal allows other VMEbus masters to
interrupt the MC68030. SIGHP can only be set from the
VMEbus. It can only be cleared by the MC68030. When a
VMEbus master sets SIGHP to a 1, the VMEchip requests a level
5 interrupt to the MC68030 (if such interrupts are enabled). The
interrupt request remains until the MC68030 writes a 1 to it.
This bit is cleared by SYSRESET. See Note 1 below.
Bit 4 BRDFAIL is a reflection of the BRDFAIL* input/output signal
line. The status bit is set to 1 whenever the signal line is
activated by either the VMEchip, or by a watchdog time-out
