GE 193X703AAG02繼電器板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X703AAG02 繼電器板技術說明
產品型號：193X703AAG02
制造商：General Electric (GE)
產品類型：繼電器控制板（Relay Card）
系列：193X 系列模塊
主要功能：
提供工業驅動或控制系統中的邏輯控制與切換功能；
控制多個電路狀態（如通斷轉換）；
響應外部輸入信號，驅動繼電器動作；
執行系統內的中間繼電邏輯。
技術參數（典型）：
供電電壓：依系統設計，常見為 24V DC 或 115V AC 控制邏輯；
繼電器數量：通常含多個電磁繼電器（取決于版本）；
輸出方式：干接點輸出，常開（NO）/常閉（NC）觸點；
安裝方式：插板式，通過邊緣金手指與底板連接；
兼容性：用于GE 193X系列控制架，如Speedtronic 或老款驅動控制系統。
應用場景：
電廠汽輪機控制系統；
老式變頻器或直流驅動器系統；
工業PLC輔助控制模塊；
控制邏輯中樞板卡，用于信號轉換和系統聯鎖。
維護建議：
定期檢查繼電器觸點是否磨損或粘連；
保持板卡干燥與清潔，避免灰塵造成觸點短路；
出現控制失靈、無響應等現象時應及時更換整塊板卡。
英文資料：
GE 193X703AAG02 Relay Board Technical Description
Product model: 193X703AAG02
Manufacturer: General Electric (GE)
Product type: Relay Card
Series: 193X Series Modules
Main functions:
Provide logic control and switching functions in industrial drive or control systems;
Control multiple circuit states (such as on-off switching);
Responding to external input signals and driving relay actions;
Execute intermediate relay logic within the system.
Technical parameters (typical):
Power supply voltage: According to the system design, it is commonly controlled by 24V DC or 115V AC logic;
Number of relays: usually containing multiple electromagnetic relays (depending on the version);
Output mode: dry contact output, normally open (NO)/normally closed (NC) contacts;
Installation method: plug-in type, connected to the bottom plate through edge gold fingers;
Compatibility: Used for GE 193X series control frames, such as Speedtronic or older drive control systems.
Application scenarios:
Power plant turbine control system;
Old style frequency converter or DC drive system;
Industrial PLC auxiliary control module;
Control logic center board, used for signal conversion and system interlocking.
Maintenance suggestion:
Regularly check whether the relay contacts are worn or stuck;
Keep the board dry and clean to avoid dust causing contact short circuits;
When control failure or no response occurs, the entire board should be replaced in a timely manner.

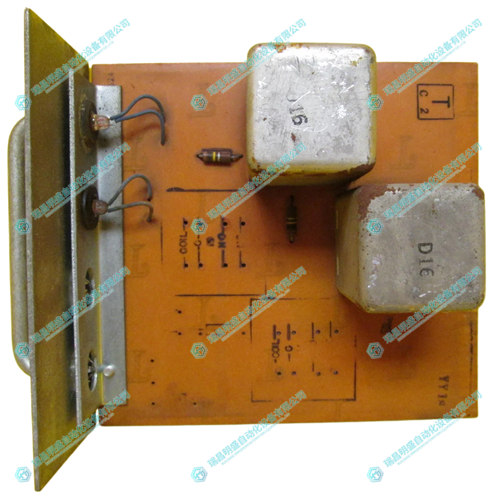

2.產 品 展 示
